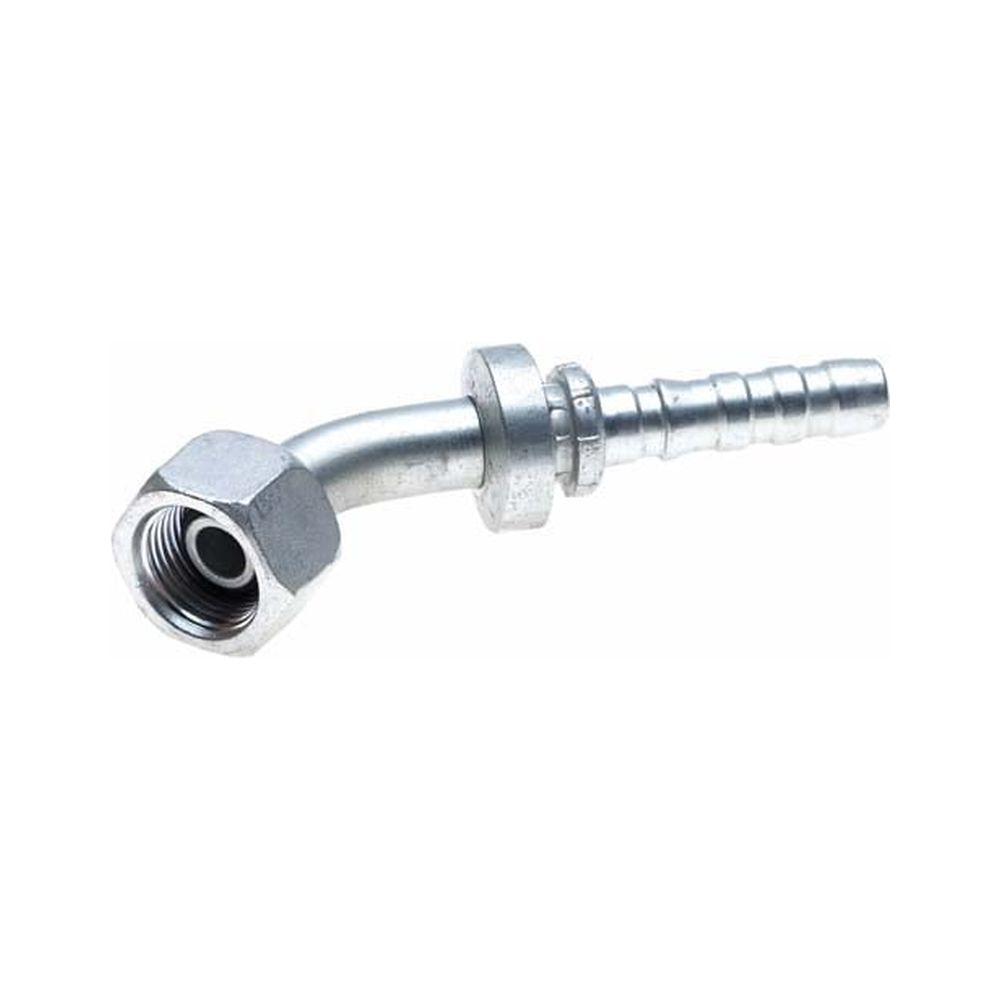

Gates GlobalSpiral BSP Swivel Female 45° Swept Multispiral Hose Tail
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Ultra High Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°/BSP Multispiral Hose Tails - Gates
Product Details
Brand: Gates
Gates GlobalSpiral BSP Swivel Female 45° Swept Multispiral Hose Tail
Genuine Gates GlobalSpiral™ bsp swivel female 45° swept multispiral hydraulic hose fitting, engineered for 4 & 6 spiral-wire hose (SAE 100R12 / R13 / R15, EN856 4SP / 4SH) — suits Gates EFG4K, EFG5K, EFG6K, M4K & M6K spiral hose. Available as Two-Piece (stem + matched Gates ferrule) and One-Piece couplings — every option clearly labelled.
Built for excavators, dozers, drill rigs and high-pressure mining & construction hydraulics. Crimp to genuine Gates specifications for a certified, leak-free connection — crimp charts available via the download link below.
Specifications
| Size | Type | Our SKU | Gates Part No | Gates Code | Barcode | L (mm) | Cut-off (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| (12) 3/4" x (12) 3/4" | 2-Pc | HTM-BSF-45S-1212-GA | 12GS-12FBSPORX45 | G20831-1212 | 72053571851 | 132.6 | 81.6 | 1.13 |
| (16) 1" x (16) 1" | 2-Pc | HTM-BSF-45S-1616-GA | 16GS-16FBSPORX45M | G20831-1616 | 72053454659 | 155.5 | 99.1 | 1.80 |
| (10) 5/8" x (10) 5/8" | 2-Pc | HTM-BSF-45S-1010-GA | 10GS-10FBSPORX45 | G20831-1010 | 770075411215 | 106.7 | 57.2 | 0.78 |
| (20) 1-1/4" x (20) 1-1/4" | 2-Pc | HTM-BSF-45S-2020-GA | 20GS-20FBSPORX45M | G20831-2020 | 72053510515 | 191 | 119.9 | 3.47 |
| (24) 1-1/2" x (24) 1-1/2" | 1-Pc | HTMO-BSF-45S-2424-GA | 24GSM-24FBSPORX45 | G24831-2424 | 770075417422 | 242.8 | 147.6 | 5.00 |
| (32) 2" x (32) 2" | 1-Pc | HTMO-BSF-45S-3232-GA | 32GSM-32FBSPORX45 | G23831-3232 | 770075556749 | 307.6 | 193.6 | 10.18 |
Download Gates crimp dimensions
