Flange Code 61 x JIC Male 45° Swept
SKU F61-JIM-45S-1214
AU$23.30
On Sale
was AU$42.60 Save 45%
Bulk pricing available for quantities of 5 units or more
Size
Please choose
In stock
1
Buy more, save more
| Quantity | Price per item | Discount |
| 5 items | AU$22.10 | 5% off |
| 10 items | AU$21.00 | 10% off |
| 25 items | AU$20.40 | 12% off |
| 50 items | AU$19.80 | 15% off |
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

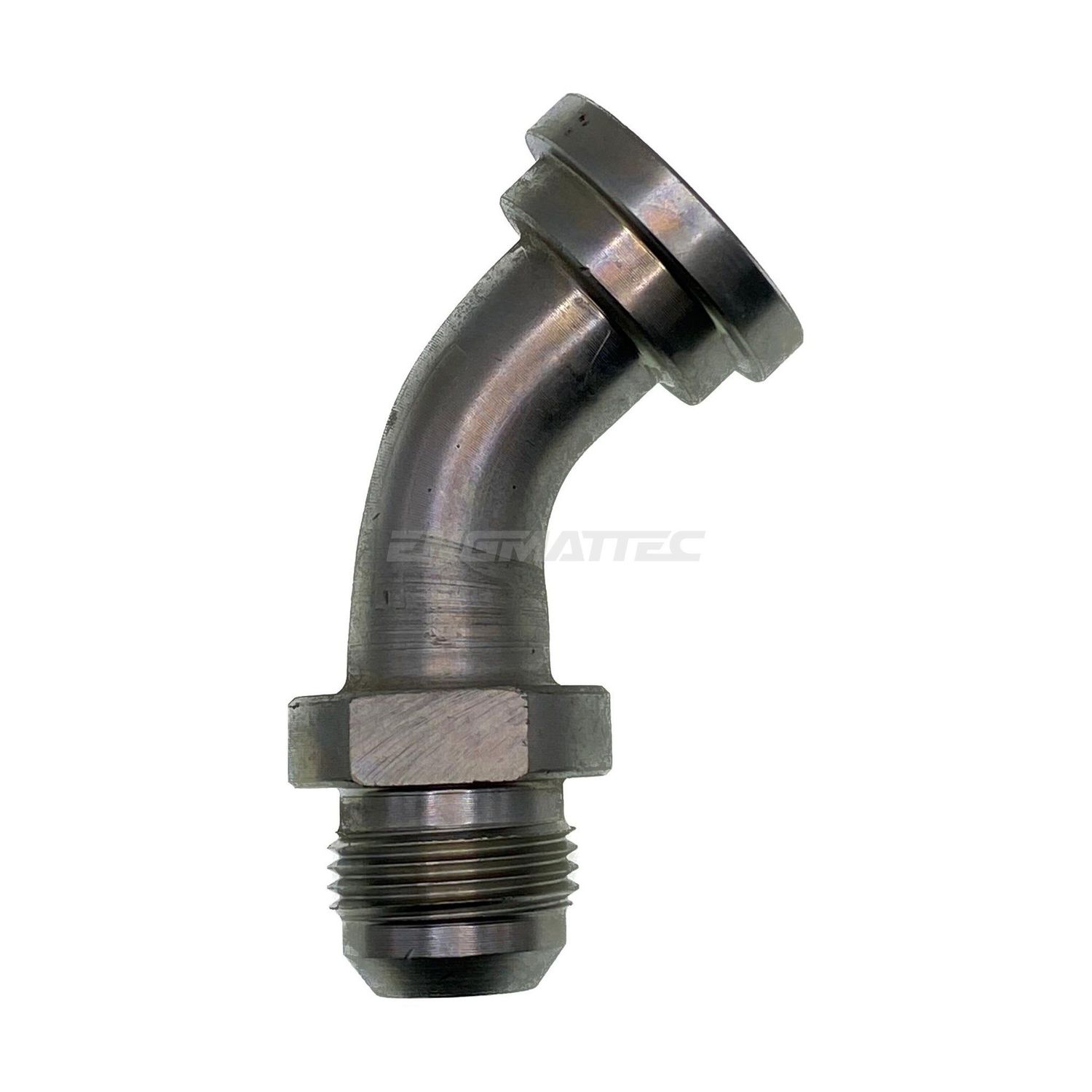

Flange Code 61 x JIC Male 45° Swept
Product Details
Brand: Engmattec
Weight: 0.25 kg
Flange Code 61 x JIC Male 45° Swept
45° adaptors take the fight out of hose routing – a gentle set bend that clears obstacles without the tight loop a straight fitting would force.
Ways to buy:
- Off the shelf – pick your size from the dropdown below and it’s on its way.
- Need a size or combination you can’t see? Call us – if it exists, we can get it.
Pick your size
| Size / configuration | SKU | Price inc GST |
| Adaptor - (08) 1/2" Flange Code 61 x (12) 3/4" JIC Male - 45° Swept | F61-JIM-45S-0812 | $23.90 |
| Adaptor - (12) 3/4" Flange Code 61 x (14) 7/8" JIC Male - 45° Swept | F61-JIM-45S-1214 | |
| Adaptor - (12) 3/4" Flange Code 61 x (17) 1 1/16" JIC Male - 45° Swept | F61-JIM-45S-1217 | $32.00 |
| Adaptor - (12) 3/4" Flange Code 61 x (21) 1 5/16" JIC Male - 45° Swept | F61-JIM-45S-1221 | $44.90 |
| Adaptor - (16) 1" Flange Code 61 x (17) 1 1/16" JIC Male - 45° Swept | F61-JIM-45S-1617 | $38.40 |
| Adaptor - (16) 1" Flange Code 61 x (21) 1 5/16" JIC Male - 45° Swept | F61-JIM-45S-1621 | $46.00 |
| Adaptor - (20) 1 1/4" Flange Code 61 x (21) 1 5/16" JIC Male - 45° Swept | F61-JIM-45S-2021 | $48.90 |
| Adaptor - (20) 1 1/4" Flange Code 61 x (26) 1 5/8" JIC Male - 45° Swept | F61-JIM-45S-2026 | $50.70 |
| Adaptor - (20) 1 1/4" Flange Code 61 x (30) 1 7/8" JIC Male - 45° Swept | F61-JIM-45S-2030 | $45.40 |
| Adaptor - (24) 1 1/2" Flange Code 61 x (26) 1 5/8" JIC Male - 45° Swept | F61-JIM-45S-2426 | $69.30 |
| Adaptor - (24) 1 1/2" Flange Code 61 x (30) 1 7/8" JIC Male - 45° Swept | F61-JIM-45S-2430 | $134.20 |
What is in the box
One fitting as per your selection.
Specifications
| Parameter | Value |
| Brand | Engmattec |
| Material | Carbon steel |
| Thread end 1 | Flange Code 61 |
| Thread end 2 | JIC Male |
| Configuration | 45° |
How to choose
- Match both thread ends to what you are joining; the angle just sets the direction.
- Use a 45° where a 90° would kink flow harder than you need – gentler angle, less pressure drop.
- Set the fitting direction before final torque, not after.
- Not sure? Call us and we will confirm the size.
Technicians Advice
Aim the elbow before you tighten: BSPP ends seal on a bonded washer so final position and seal happen together – plan the last quarter turn to land on your angle. Never use the elbow as a lever to spring a hose into line; the hose should reach naturally with the bend relaxed. Each elbow adds pressure drop, so if a line collects two or three of them, consider re-routing the hose instead.
Buying in bulk or fitting out a fleet? Call us for trade pricing.
Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au – real technicians, real answers.
