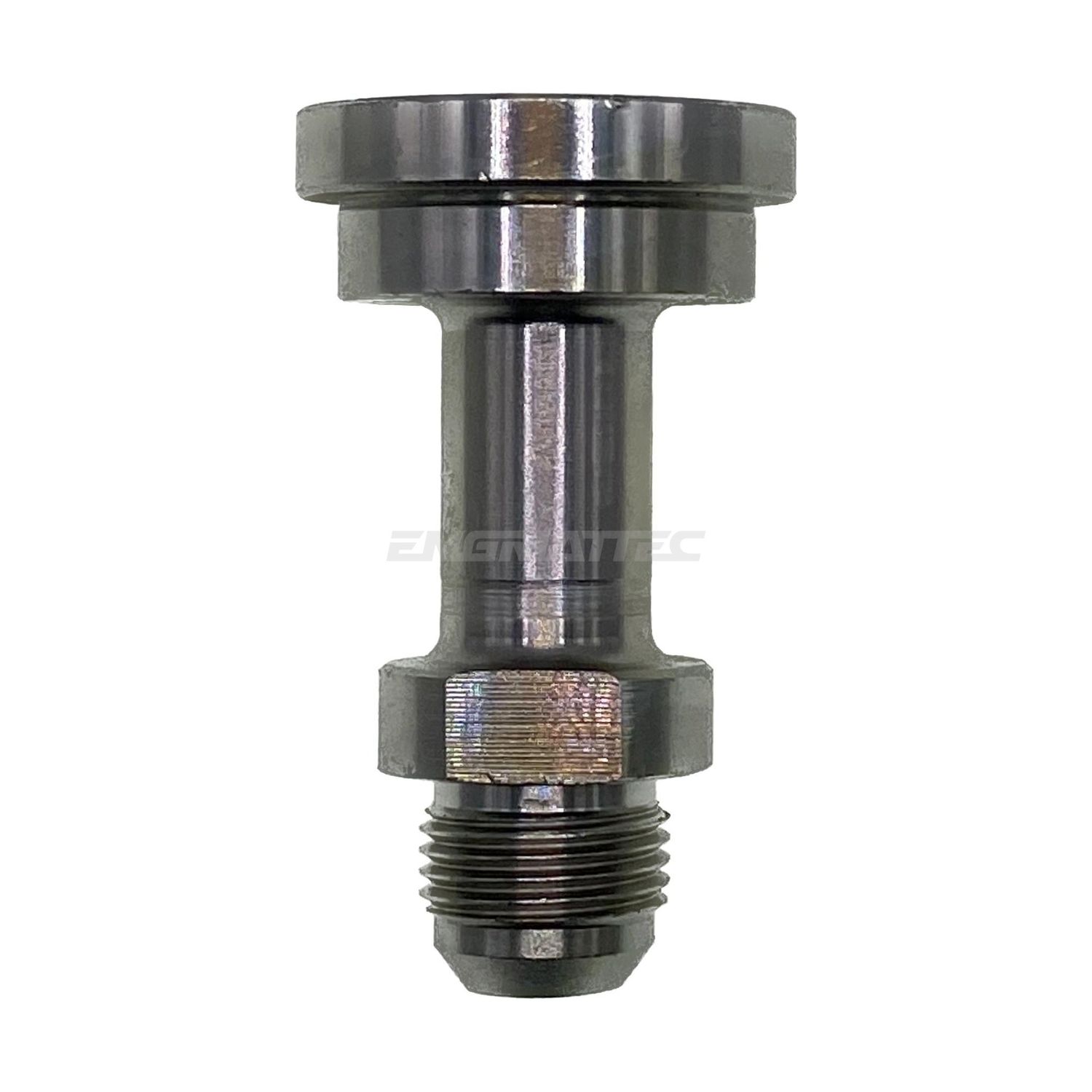

SAE Code 61 Flange x JIC 37° Male Straight Adaptor

Code 61 split flange head one end, JIC 37° male the other. Takes a JIC line off a flanged pump or motor port, which is how most larger-bore connections are made.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• SAE Code 61 Flange – SAE J518 Code 61 standard-pressure split flange. It seals on an O-ring captured in the flange head face, clamped by four bolts.
• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.

How to Choose

• The flange seals on an O-ring captured in the head face, clamped by four bolts. No sealant anywhere on this part.
• Code 61 and Code 62 are not interchangeable. Code 62 is the higher pressure standard with a different bolt pattern.
• Check the flange O-ring groove is clean and the ring is seated before you offer the head up.

Technicians Advice

Pull the four flange bolts up evenly and in a cross pattern, in stages, not one at a time to full torque. Cocking the head on one corner is what pinches the O-ring, and the leak that follows looks like a faulty seal when it was the sequence.

Where You’ll Find It

• SAE Code 61 Flange – Pump, motor and valve block ports from around 3/4 inch upward on US and Japanese built plant.
• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.

Cross-Reference

• SAE Code 61 Flange – SAE J518 Code 61 / ISO 6162-1 split flange. Also called a 4-bolt flange or standard-pressure flange.
• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	Material	Finish
F61-JIM-0812	3/4" JIC	1/2" Code 61 Flange	Mild steel	Plated finish
F61-JIM-1212	3/4" JIC	3/4" Code 61 Flange	Mild steel	Plated finish
F61-JIM-1214	7/8" JIC	3/4" Code 61 Flange	Mild steel	Plated finish
F61-JIM-1217	1.1/16" JIC	3/4" Code 61 Flange	Mild steel	Plated finish
F61-JIM-1221	1.5/16" JIC	3/4" Code 61 Flange	Mild steel	Plated finish
F61-JIM-1617	1.1/16" JIC	1" Code 61 Flange	Mild steel	Plated finish
F61-JIM-1621	1.5/16" JIC	1" Code 61 Flange	Mild steel	Plated finish
F61-JIM-1626	1.5/8" JIC	1" Code 61 Flange	Mild steel	Plated finish
F61-JIM-1630	1.7/8" JIC	1" Code 61 Flange	Mild steel	Plated finish
F61-JIM-2017	1.1/16" JIC	1.1/4" Code 61 Flange	Mild steel	Plated finish
F61-JIM-2021	1.5/16" JIC	1.1/4" Code 61 Flange	Mild steel	Plated finish
F61-JIM-2026	1.5/8" JIC	1.1/4" Code 61 Flange	Mild steel	Plated finish
F61-JIM-2421	1.5/16" JIC	1.1/2" Code 61 Flange	Mild steel	Plated finish
F61-JIM-2426	1.5/8" JIC	1.1/2" Code 61 Flange	Mild steel	Plated finish
F61-JIM-2430	1.7/8" JIC	1.1/2" Code 61 Flange	Mild steel	Plated finish
F61-JIM-3221	1.5/16" JIC	2" Code 61 Flange	Mild steel	Plated finish
F61-JIM-3226	1.5/8" JIC	2" Code 61 Flange	Mild steel	Plated finish
F61-JIM-3230	1.7/8" JIC	2" Code 61 Flange	Mild steel	Plated finish
F61-JIM-3240	2.1/2" JIC	2" Code 61 Flange	Mild steel	Plated finish

Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
