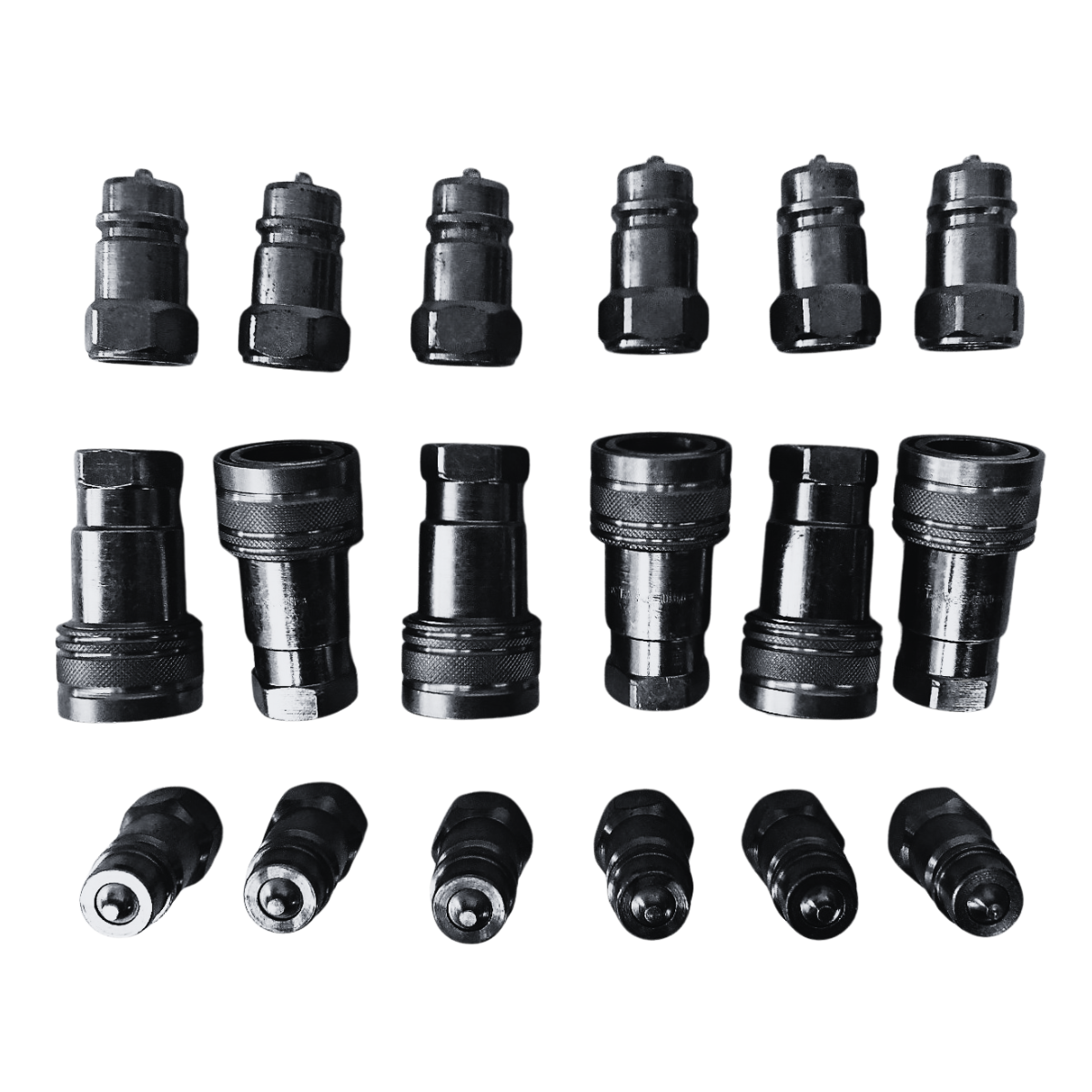

These 1/2" coupler sets are quality items . They are compatible with most agricultural 1/2" threaded poppet couplers. Poppet valve quick coupling series, interchangeable with international standard ISO 7241-1 “A” in 1/2" ONLY, the series is manufactured in carbon steel with zinc plated surface treatment.

They come with 1/2" Bspp female/Male 1/2" Bspp threaded ends and are fully interchangeable with "Faster (Italy) NV Couplers and 1/2" Holmbury (UK) couplers, Stucchi NV
They will suit almost all agricultural equipment.
This sale is for multiple sets, ie. One set = 1 x male & 1 x female, Pressure rated to 350Bar / 5250 psi.
Quick-connect hydraulic couplings are the ideal choice where a tough, durable product of Superior Quality is required.
This Series conforms to ISO 7241-1 Series A.
They are used to minimize the pressure drop characteristics and provide a positive sealing arrangement.
Typical applications include Earthmoving equipment, construction, manufacturing, chemical processing, agricultural equipment, and general industrial machinery.
Dimensions and Performance.
Threaded Connections
1/2" Bspp Female half
1/2" Bspp Male half
Rated Working Pressure
300 Bar (4400 PSI)
Flow Rates From 15 to 80 Litres/Minute
Pressure drops less than 0.1 Bar @ 10 Litres / Minute 4Bar @ 80 Litres / Minute
Operating Temperatures -20 to 100 degrees Celsius
Materials of Construction
Zinc-plated, heat-treated carbon steel. Nitrile ‘O’ ring seals with PTFE backing rings
Features
A positive, quick connection is ensured by the snap-together locking ball system.
When connected the male and female halves can rotate, even under pressure, thus avoiding any torsional stress in the flexible hoses.
Poppet valves have balanced springs and calibrated oil flow passages to minimize the pressure drop.
Poppet valve seals have shockproof protective edges

Email: sales@hydraulic.online

Phone: 07 5563 1982

Hours: 8 am to 4 pm Monday - Friday, excluding public holidays

If you have any questions please don’t hesitate to contact us

Best regards,

Hydraulic.Online
