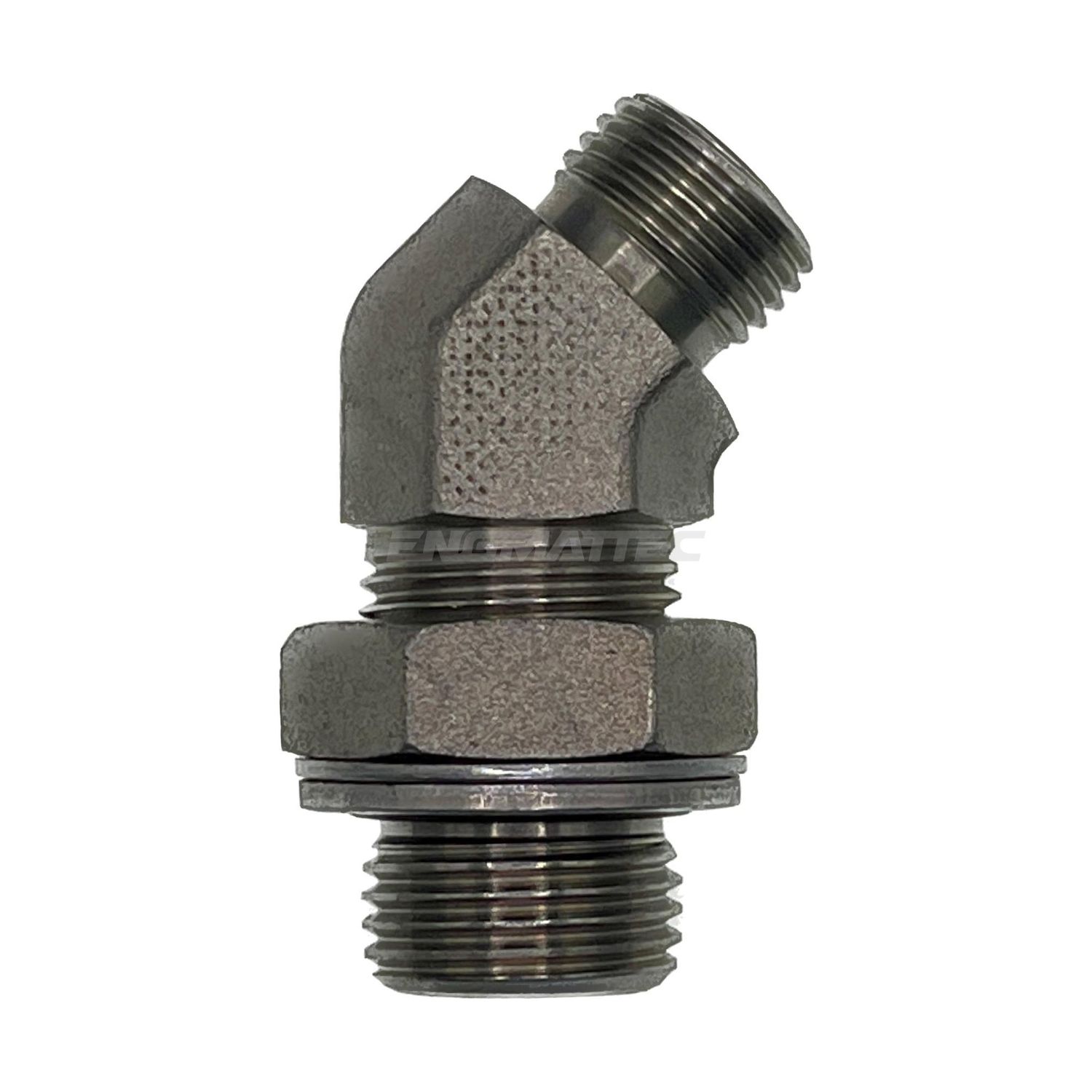

BSP Parallel Male x ORFS Male 45° Compact Elbow

Connects a BSP parallel port to an O-ring face seal line through a short 45° bend. ORFS is what modern OEMs specify when they want a joint that just does not weep, so this elbow is the usual way of bringing older BSP plumbing up to a late-model machine. Found on Volvo CE, Liebherr, JLG and late-model leak-free OEM circuits.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: 90 ° Hydraulic Adaptors How They Work and the Importance of O'Rings

Thread Standards

• BSP Parallel Male – BSPP to ISO 1179 / BS 2779. It seals on a 60° cone seat or a bonded washer under the hex.
• ORFS Male – SAE J1453 / ISO 8434-3. It seals on the O-ring in the flat face.

How to Choose

• First number is the BSP end, second is the ORFS dash size.
• Check the O-ring is present and undamaged before fitting – the joint seals on it, not on the threads.
• Compact body for tight pump and valve faces; use a swept bend if the hose needs a gentler radius.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.
• ORFS Male – High-pressure, high-vibration circuits on late-model excavators, drill rigs, crushers and forestry gear.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.
• ORFS Male – SAE J1453 / ISO 8434-3 O-ring face seal. Parker call this series Seal-Lok. Also written ORFS or flat face.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Technicians Advice

The whole joint lives or dies on that face O-ring. Fit it dry and clean, make sure it is seated in the groove and not pinched as you bring the faces together, and never reuse one that has been squashed flat or nicked. Torque is only there to hold the faces together, so cranking harder will not stop a leak caused by a damaged seal – it will just distort the face. Keep a spare O-ring kit on the truck.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	H	S1	Material	Finish
BPM-ORM-45C-0409	9/16" ORFS	1/4" BSPP	19mm	14mm	Mild steel	Plated finish
BPM-ORM-45C-0411	11/16" ORFS	1/4" BSPP	19mm	19mm	Mild steel	Plated finish
BPM-ORM-45C-0611	11/16" ORFS	3/8" BSPP	22mm	19mm	Mild steel	Plated finish
BPM-ORM-45C-0613	11/16" ORFS	3/8" BSPP	22mm	19mm	Mild steel	Plated finish
BPM-ORM-45C-0811	11/16" ORFS	1/2" BSPP	27mm	22mm	Mild steel	Plated finish
BPM-ORM-45C-0813	13/16" ORFS	1/2" BSPP	27mm	22mm	Mild steel	Plated finish
BPM-ORM-45C-0816	1" ORFS	1/2" BSPP	27mm	27mm	Mild steel	Plated finish
BPM-ORM-45C-0819	1.3/16" ORFS	1/2" BSPP	27mm	30mm	Mild steel	Plated finish
BPM-ORM-45C-1219	1.3/16" ORFS	3/4" BSPP	32mm	30mm	Mild steel	Plated finish
BPM-ORM-45C-1623	1.7/16" ORFS	1" BSPP	41mm	36mm	Mild steel	Plated finish

Key: H centre to face, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 Straight – same threads🔗 90° Compact – same threads
