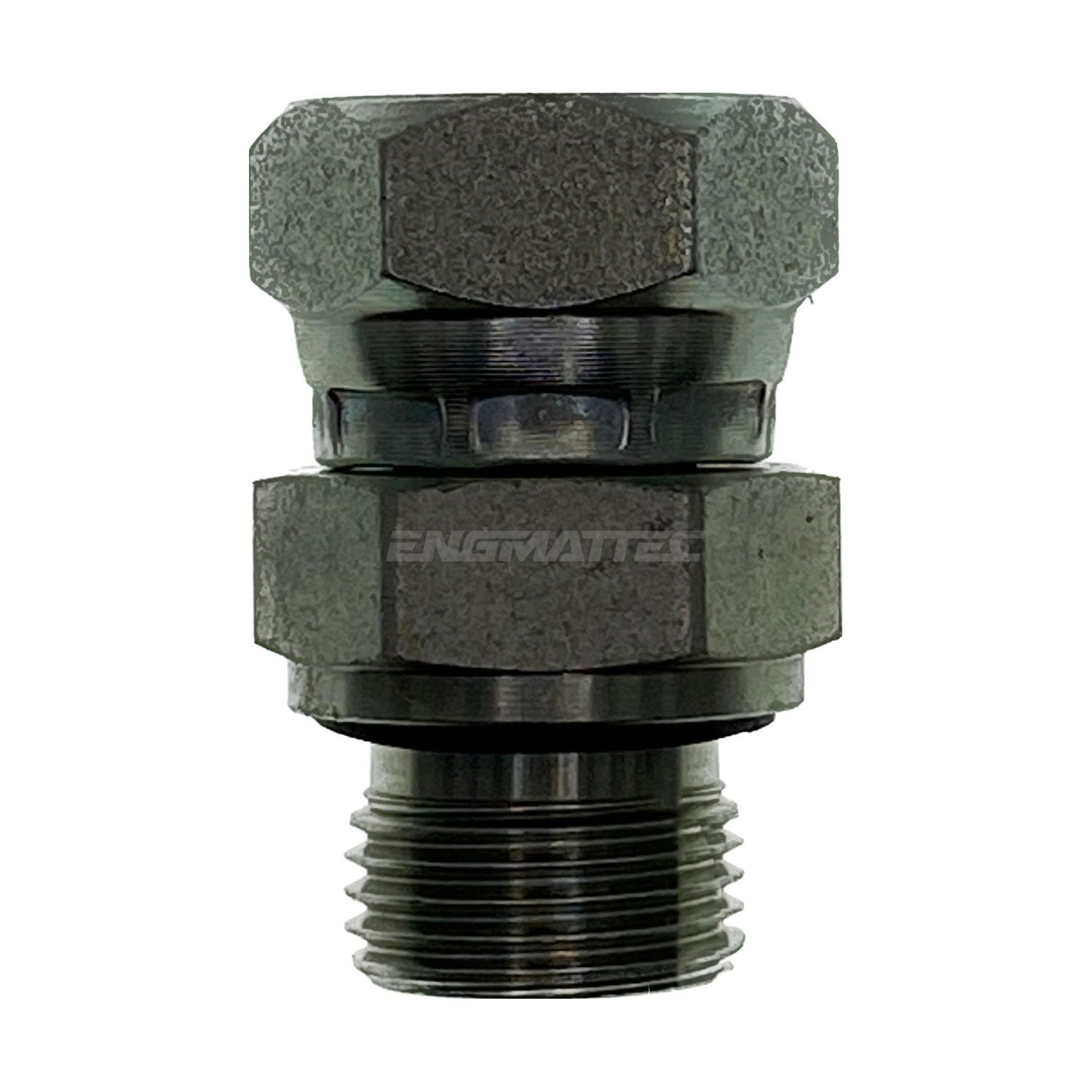

BSP Parallel Male x BSP Swivel Female Straight Adaptor

BSP parallel male one end, BSP swivel female the other. The everyday BSP extension and repair piece on Australian and British-built machinery, and the part that lets you land a hose without winding it up.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.
• BSP Swivel Female – BSPP to ISO 228 with a 60° internal cone seat. It seals on the cone and swivels, so it needs no tape or sealant.

How to Choose

• The swivel female seals on its 60° internal cone and turns freely, so the hose is never twisted during assembly.
• The parallel male end still needs a bonded seal washer or a cone seat in the port. It does not seal on the thread.
• Unequal sizes are stocked, so measure both ends rather than assuming they match.

Technicians Advice

The most common BSP leak is a bonded washer left off or reused flat on the male end. It is a two dollar part holding the whole joint. Fit a fresh one and make sure the port face is clean and square before you wind it down.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.
• BSP Swivel Female – Hose ends across Australian-built assemblies, and anywhere a joint has to be broken and remade repeatedly.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.
• BSP Swivel Female – BSPP body to ISO 228 with a 60° cone seat. Commonly called a BSP swivel or BSP female cone seat.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H	H1	Material	Finish
BPM-BSF-0204	1/8" BSPP Male	1/4" BSPP Female	–	–	–	Mild steel	Plated finish
BPM-BSF-0404	1/4" BSPP Male	1/4" BSPP Female	30mm	19mm	19mm	Mild steel	Plated finish
BPM-BSF-0406	1/4" BSPP Male	3/8" BSPP Female	32mm	22mm	19mm	Mild steel	Plated finish
BPM-BSF-0604	3/8" BSPP Male	1/4" BSPP Female	30mm	19mm	22mm	Mild steel	Plated finish
BPM-BSF-0606	3/8" BSPP Male	3/8" BSPP Female	35mm	22mm	22mm	Mild steel	Plated finish
BPM-BSF-0608	3/8" BSPP Male	1/2" BSPP Female	35mm	27mm	22mm	Mild steel	Plated finish
BPM-BSF-0806	1/2" BSPP Male	3/8" BSPP Female	39mm	22mm	27mm	Mild steel	Plated finish
BPM-BSF-0808	1/2" BSPP Male	1/2" BSPP Female	39mm	27mm	27mm	Mild steel	Plated finish
BPM-BSF-0812	1/2" BSPP Male	3/4" BSPP Female	40mm	32mm	27mm	Mild steel	Plated finish
BPM-BSF-1212	3/4" BSPP Male	3/4" BSPP Female	44mm	32mm	32mm	Mild steel	Plated finish
BPM-BSF-1216	3/4" BSPP Male	1" BSPP Female	48mm	38mm	38mm	Mild steel	Plated finish
BPM-BSF-1612	1" BSPP Male	3/4" BSPP Female	45mm	32mm	41mm	Mild steel	Plated finish
BPM-BSF-1616	1" BSPP Male	1" BSPP Female	53mm	38mm	41mm	Mild steel	Plated finish
BPM-BSF-2016	1.1/4" BSPP Male	1" BSPP Female	–	38mm	50mm	Mild steel	Plated finish
BPM-BSF-2020	1.1/4" BSPP Male	1.1/4" BSPP Female	52mm	50mm	50mm	Mild steel	Plated finish
BPM-BSF-2424	1.1/2" BSPP Male	1.1/2" BSPP Female	*mm	55mm	55mm	Mild steel	Plated finish
BPM-BSF-3232	2" BSPP Male	2" BSPP Female	*mm	70mm	70mm	Mild steel	Plated finish

Key: L overall length, H centre to face, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 90° Compact – same threads
