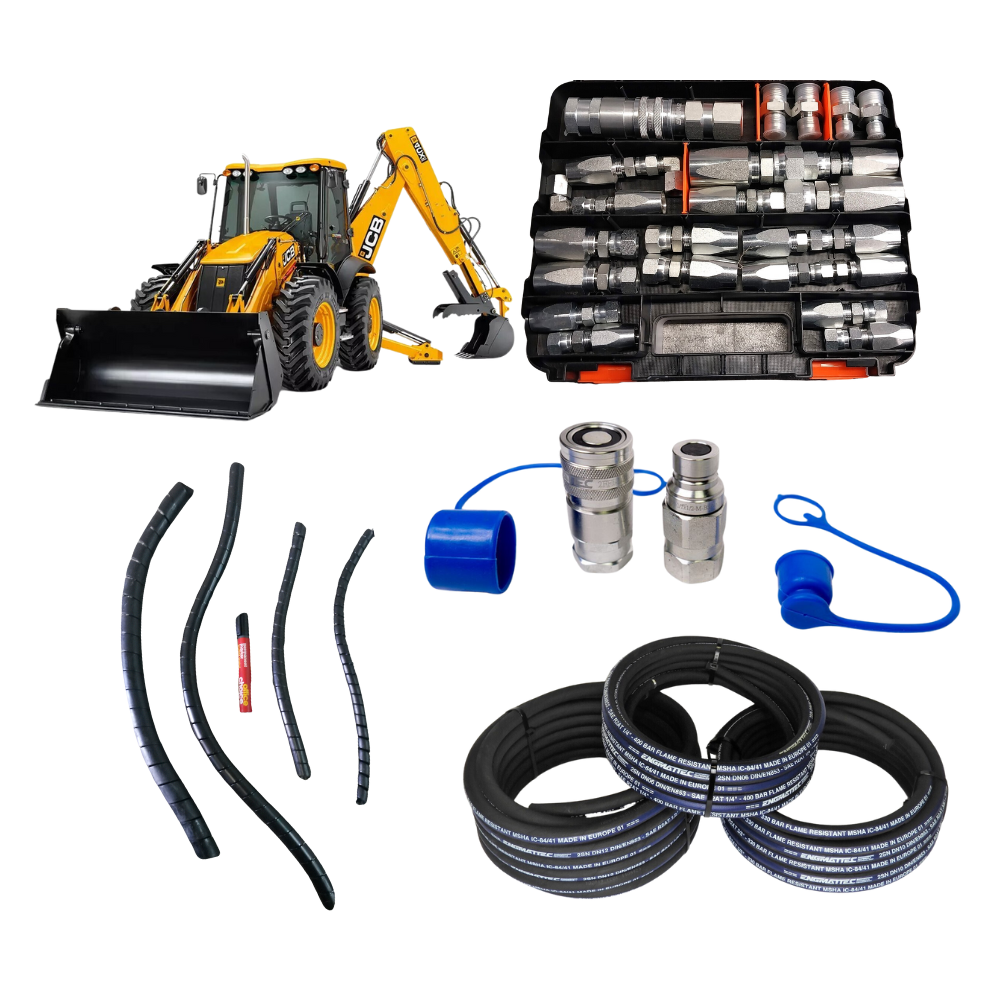

54-piece Hydraulic Hose Emergency Repair Kit for Construction and Agricultural Equipment
Manufactured by JCB

Just about everything you will need (except Hydraulic Oil) to get you back up and running when a callout is too costly,
many hours or many miles away and you just need to get the job done
and be on your way home or on to the next Job or Field.

If you are fairly handy with the tools this comprehensive 54 piece DIY Breakdown Repair Kit will save you
time and money, because it will allow you to repair most of the common failures
you will encounter during your day-to-day earthmoving operations.

We have put this kit together based on nearly two decades of experience providing breakdown and callout services to all types of JCB, Equipment and the attachments they use.

Compatibility List

JCB Equipment
Backhoe Loaders 3CX, 4CX, 5CX This Comprehensive Kit Will allow you to

• Disconnect and Plug or Cap the open Ports, on Pumps, Cylinders, Attachments, Hoses & Pipes.
• Remove and replace a hose end or,
• Make a completely new hose assembly or,
• Cut out a damaged or pinched section and join it back together or,
• Replace a Leaking or Damaged Quick Connect Coupler
• All for a fraction of the price of an expensive callout
• and most important of all
• Get you quickly back to work and charge out your operating hours.

• Tilt Bucket and Tilt and Hitch Hoses (excavators)
• 4 in 1 Bucket Hoses (Loaders Internal on the Bucket and also from the Machine to the Bucket)
• Bucket Tilt Hoses
• Auxiliary Supply and Return Hoses for Augers, Brooms, Rock Breakers, and Trenchers
• Dipper Arm Hoses
• Boom Swing and Boom Lift Hoses
• Pump to Valve Hoses
• Drive Hoses

These quality field-fit reusable horsetails are supplied by an Australian-owned and operated hydraulic fittings manufacturer.
These are ideal for on-site use, where no hose crimper is available.
The Reusable Hose tails are precision machined from Solid Steel Bar stock to be very robust,
The Adaptors are made from Drop Forged Steel,
and the Dry Break Flate Face Couplings are made from Case Hardened Steel.
High Pressure Two Wire Hydraulic Hose
Manufactured to Meet or Exceed SAE 100R2AT Specifications
This Kit also comes with Economic Quantities of Matched High Pressure Two Wire Hydraulic Hose
Manufactured By Gates, ENGMATTEC and or Taipan.

All Fittings and Hoses are Easy to Assemble, Use, & Fit with only a couple of spanners (with or without a vice) out in the field with no need for a crimping machine.

Please copy the link below to see more field fit hyd hose fittings available

• 4 meters 100R2 1/4 inch 5800 psi (400 bar) Two Wire Hydraulic Hose
• 4 meters 100R2 3/8 inch 4800 psi (330 bar) Two Wire Hydraulic Hose
• 4 meters 100R2 1/2 inch 4000 psi (275 bar) Two Wire Hydraulic Hose
• 4 meters 100R2 5/8 inch 3625 psi (245 bar) Two Wire Hydraulic Hose

• 4 meters R16SSG HDPE Hose Wrap for 1/4 inch Two Wire Hydraulic Hose
• 4 meters R20SSG HDPE Hose Wrap for 3/8 inch Two Wire Hydraulic Hose
• 4 meters R25SSG HDPE Hose Wrap for 1/2 inch Two Wire Hydraulic Hose

• 4 meters R32SSG HDPE Hose Wrap for 5/8 inch Two Wire Hydraulic Hose

All the Hydraulic Hoses and Wrap are coiled and packed in a Strong Woven Nylon Bag

• 4 x 1/4" Hose x 1/4 BSP Female,
• 3 x 3/8" Hose x 3/8 BSP Female,
• 1 x 3/8" Hose x 3/8 BSP Male,
• 4 x 1/2" Hose x 1/2 BSP Female,
• 4 x 5/8" Hose x 5/8" BSP Female,

Adaptors, Plugs and Caps (28 Pieces)

• 2 x 1/4 x 1/4 BSPP Male / Male Nipples
• 2 x 3/8 x 3/8 BSPP Male / Male Nipples
• 2 x 3/8 x 1/2 BSPP Male / Male Nipples (for Flat Face Couplers)
• 2 x 1/2 x 1/2 BSPP Male / Male Nipples (for Flat Face Couplers)
• 2 x 1/2 x 1/2 Male / Male BSPT 90 Elbow
• 2 x 1/4 x 1/4 BSP Male Female 90 Elbow
• 2 x 3/8 x 3/8 BSP Male Female 90 Elbow
• 2 x 1/2 x 1/2 BSP Male Female 90 Elbow
• 2 x Sets of 1/4 BSPT Plugs and Caps (1 set = 2 pc)
• 2 x Sets of 3/8 BSPT Plugs and Caps (1 set = 2 pc)
• 2 x Sets of 1/2 BSPT Plugs and Caps (1 set = 2 pc)
• 2 x Sets of 5/8 BSPT Plugs and Caps (1 set = 2 pc)

Couplings (Quick Connect) (1 Pair = 2 pc )
1 x Pair 1/2 inch Flat Face Dry Break Quick Connect Couplers with Dust Caps

All Hose fittings adaptors and Couplers are neatly Packed in a Strong Plastic Organiser Case.
All Hose and Protective Wrap is coiled and Packed in a Strong Buffel bag.

Buy with confidence from a long-established Australian-owned and based company with our 12-month warranty and tax invoice.

Please click the link below to see more fittings available

More BSP DIY Reusable Hydraulic Hose Fittings

Please Note Images are indicative only and are not of this Actual BSP Kit.

Improper Selection, Installation, Implementation, And/Or Operation By Anyone Other Than Persons With Appropriate Technical And Mechanical Training Can Result In Damage To Equipment Or Property, Serious Personal Injury, Or Death. Proper Precautions And Safety Procedures Should Be Implemented Prior To The Installation And Operation Of Equipment.
