29 to 38-piece DIY Hydraulic Hose Emergency Repair Kit for Construction, Agricultural Equipment and Mobile Plant.

Fits and works on Most SAE 100R2 / 2SN two wire Hydraulic Hoses: used on Commercial Marine, Mobile, Farming and Earth Moving Equipment.

SAE 100R2 Hydraulic Hose is very common and is used on Bobcat, Case, CAT, JCB, Terrex, ASV, John Deere, as well as
Commercial Fishing Vessels, Manufacturing Equipment and Mobile Plant.

These fittings will fit two wire Hose made by all the Large Manufactures including:

Alfagomma, Gates, Eaton, Engmattec, Duffield, Manulli, Ryco, Sabre, Sunflex, Taipan, Xflex.

This Kit will repair a Hole rr a tear in the Following sizes of Hydraulic Hoses

1/4", 3/8", 1/2"
The "Optional" 3/4" set will help get you going on larger machinery with higher oil flows eg above 100 Lt/min.

Your Machine's Hydraulic Hoses should be marked with the following Specifications

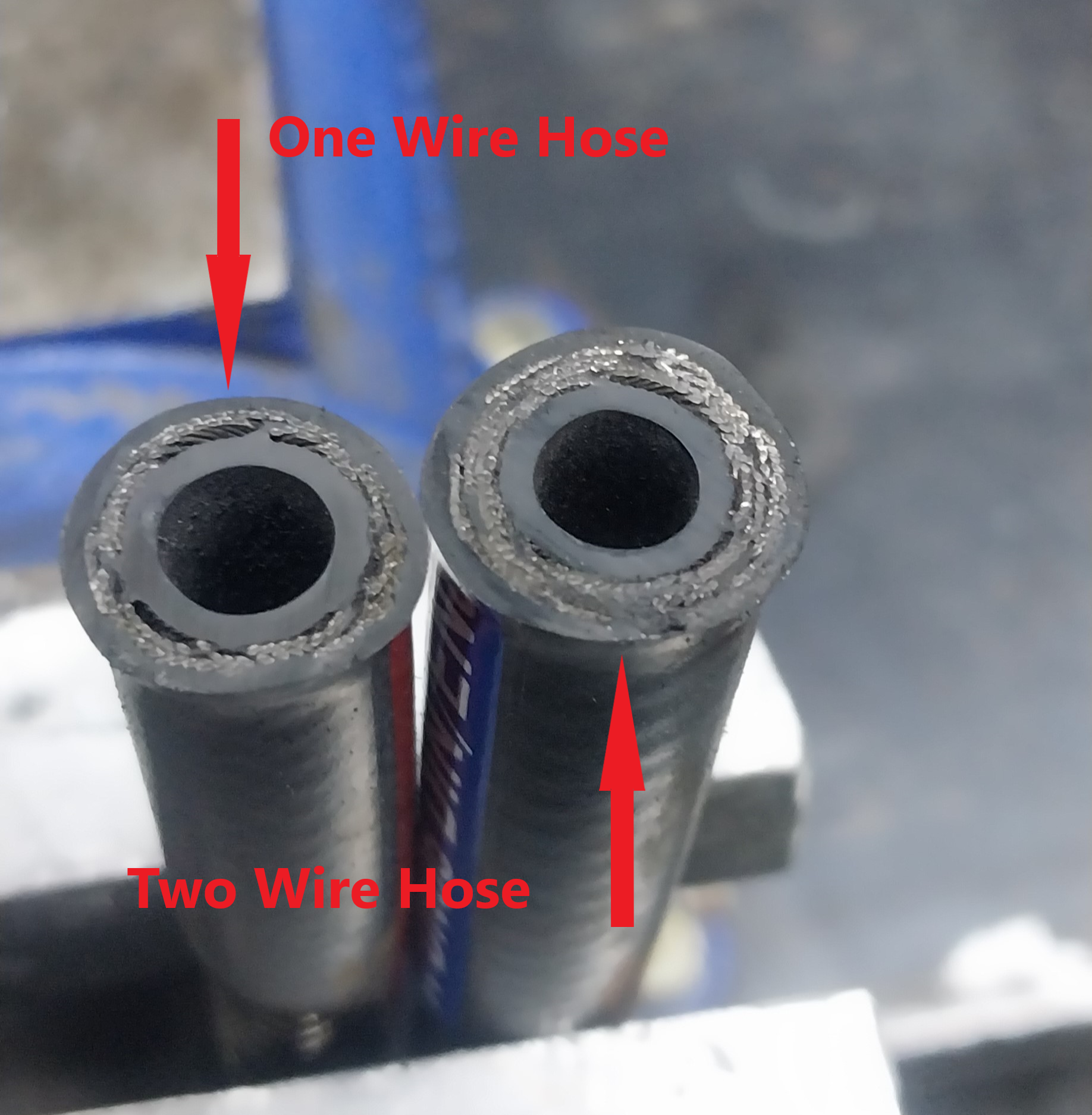

SAE 100R2 - and or 2SN, (this means it has two layers of braided steel wire reinforcement. Please see the image below.

• 1/4" inch SAE 100R2-04 2SN DN06 400 bar (5,800 psi) approximate OD 15 mm
• 3/8" inch SAE 100R2-06 2SN DN10 330 bar (4,700 psi approximate OD 19 mm
• 1/2" inch SAE 100R2-08 2SN DN12 275 bar (4,000 psi) approximate OD 22 mm
• 3/4" inch SAE 100R2-12 2SN DN20 215 bar (3100 psi) approximate OD 30 mm
• Contact us is you require a repair set for 5/8" or 1" OD 2 wire Hose or Call 07 5563 1982 or 1300 1 HOSES


Just about everything you will need (except Hydraulic Oil) to get you back up and running when a callout is too costly, many hours or many miles away and you just need to get that pin hole, pinch or gash in your machine's hose mended and back on the Job and on to the Next job or be on your way home.

If you are fairly handy with the tools: this 29 to 38 piece DIY Hose Repair Kit will save you time and money, because it will allow you to repair most of the common failures you will encounter during your day-to-day earthmoving, fishing or Farming operations.

We have put this kit together based on nearly two decades of experience providing breakdown and callout services to all Types of

• Marine,
• Manufacturing,
• Transport
• Earthmoving
• Landscaping
• Farming
• and all the attachments the above equipment uses.

Compatibility List

Airman, ASV, Bobcat, Hitachi, John Deere, New Holland,

This Repair Kit Will allow you to

• Disconnect and Plug or Cap the open Ports, on Pumps, Cylinders, Attachments, Hoses & Pipes.
• Remove and replace a hose end or,
• Repair a Damaged Hose by cutting out a damaged or pinched section and joining it back together,
• All for a fraction of the price of an expensive callout
• and most important of all
• Get you quickly back to work and charge out your operating hours.

• Tilt Bucket and Tilt and Hitch Hoses (excavators)
• 4 in 1 Bucket Hoses (Loaders Internal on the Bucket and also from the Machine to the Bucket)
• Bucket Tilt Hoses
• Auxiliary Supply and Return Hoses for Augers, Brooms, Rock Breakers, and Trenchers
• Dipper Arm Hoses
• Boom Swing and Boom Lift Hoses
• Pump to Valve Hoses
• Winch Hoses

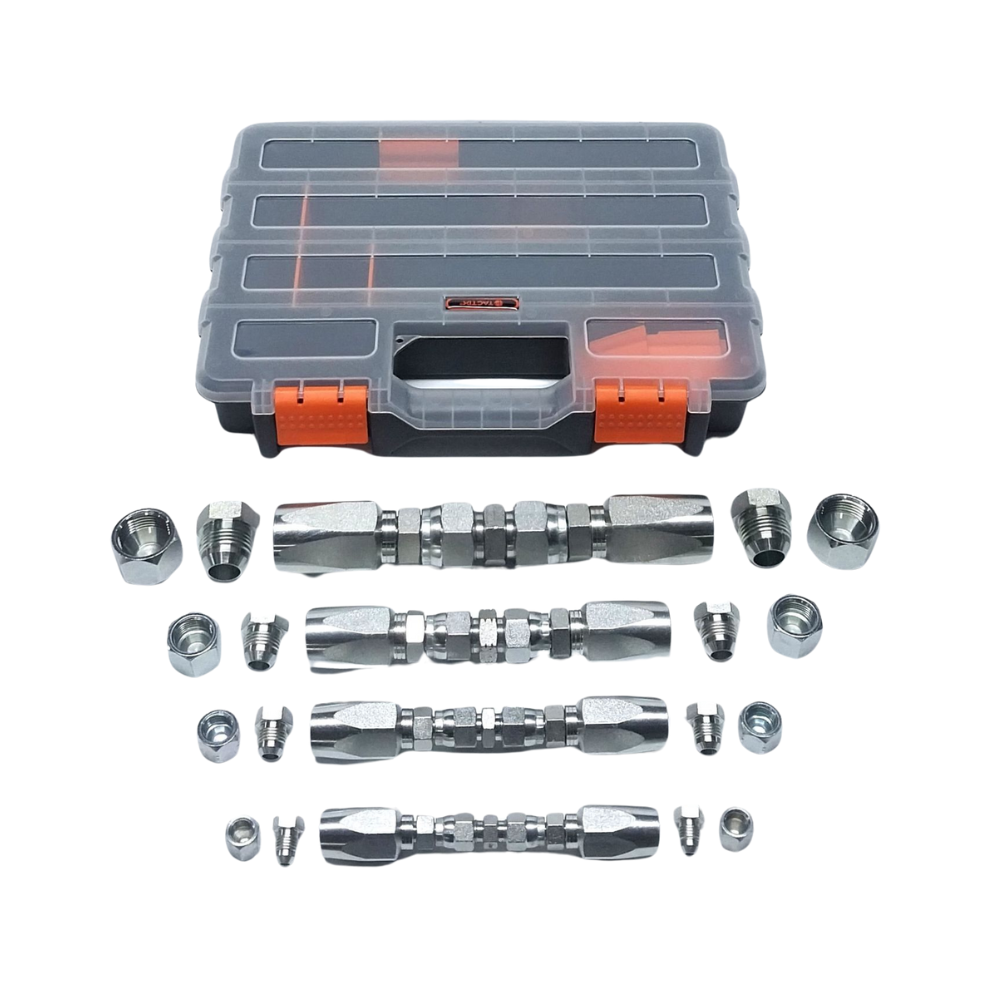

This Repair Kit includes the Following Reusable Hose Fittings

(6 - 8 Sets * 1 set = One Hose Tail and One Body)

• 2 x 1/4" Hose x 7/16" JIC Female,
• 2 x 3/8" Hose x 9/16" JIC Female,
• 2 x 1/2" Hose x 3/4" JIC Female,
• OPTIONAL 2 x 3/4" Hose x 1-1/16" JIC Female,,

Adaptors, Nipples, Plugs and Caps (23 - 28 Pieces)

• 1 x 7/16" x 7/16" JIC Male / Male Nipples
• 1 x 9/16" x 9/16" JIC Male / Male Nipple
• 1 x 3/4" x 3/4" JIC Male / Male Nipple
• OPTIONAL 1 x 1-1/16" x 1-1/16" JIC Male / Male Nipple
• 2 x Sets of 7/16 JIC Plugs and Caps (1 set = 2 pc)
• 2 x Sets of 9/16" JIC Plugs and Caps (1 set = 2 pc)
• 2 x Sets of 3/4: JIC Plugs and Caps (1 set = 2 pc)
• OPTIONAL 2 x Sets of 1-1/16" JIC Plugs and Caps (1 set = 2 pc)
• 1 Microfibre Cloth to keep your Hands Oil Free.

All Hose fittings, adaptors and plugs and caps are neatly Packed in a Strong Plastic Organiser Case with a microfibre cloth.

Features

• These quality field-fit reusable horsetails are supplied by an Australian-owned and operated hydraulic fittings manufacturer.
• The Reusable Hose tails are precision machined from Solid Steel Bar stock to be very robust,
• The Adaptors are made from Drop Forged Steel,
• Manufactured to Meet or Exceed SAE 100R2 Hose Specifications

Benefits to You

These are ideal for on-site use, where no hose crimper is available.

This Kit also comes with Economic Quantities of Reusable Hose Fittings

All Fittings and Hoses are Easy to Assemble, Use, & Fit with only a couple of spanners

(with or without a vice) out in the field with no need for a crimping machine.

Please CLICK the link below to see all the range of DIY Field Fit Hydraulic Hose Repair Fittings available.

Click Here to look through Our Range of Reusable Hose Fittings

Buy with confidence from a long-established Australian-owned and based company with our 12-month warranty and a tax invoice.

Improper Selection, Installation, Implementation, And/Or Operation By Anyone Other Than Persons With Appropriate Technical And Mechanical Training Can Result In Damage To Equipment Or Property, Serious Personal Injury, Or Death. Proper Precautions And Safety Procedures Should Be Implemented Prior To The Installation And Operation Of Equipment.
