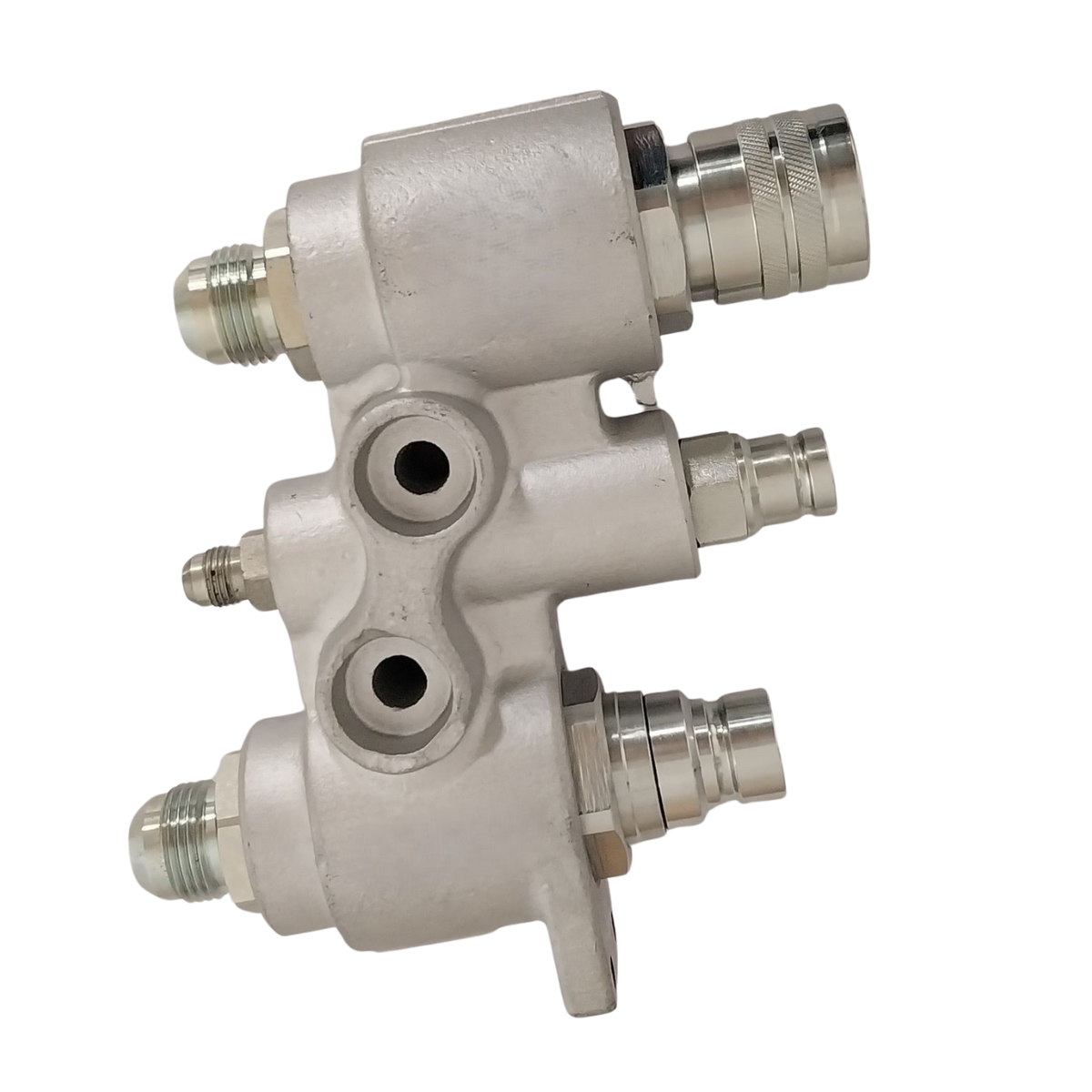

Replacement 3-Port Quick Connect Hydraulic Modular Manifold - with 3 Flat Face Couplings - for Bobcat and skid steer and Track loaders Compatible with other earthmoving equipment as well (Replaces Faster part number 4BD4FH)

This is the Auxiliary Hydraulic Block usually mounted on the front left hand side of the boom on Bobcat loaders fitted with 3 Quick connect Flat face couplers (FFH Auxiliary Valve for Bobcat 6678076)

For Bobcat Skid steers and Track Loaders, Features two main high pressure oil supply connections as well as a case drain oil return port for Special attachments with rotating hydraulic components and motors.

This 3-port quick connect modular hydraulic manifold is usually mounted on the front left hand side of the boom frame: that lifts the bucket, it features a Flat Face male and female quick connect couplers in its design.

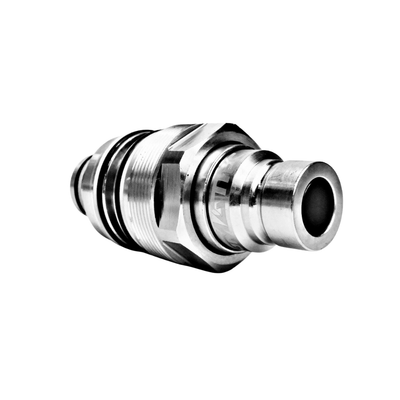

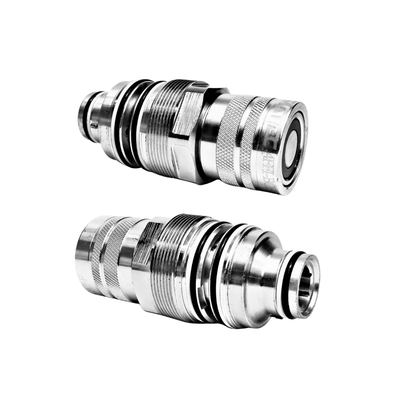

The Male and Female Manifold couplers included with this modular valve can be removed and swapped top to bottom: This function offers more flexibility with quick and efficient connection of the auxiliary hydraulic oil supply to drive or operate a range of 4 in 1 buckets and other Special Attachments.

Key Features and Specifications:

• Flat Face Modular Valve Design: Reduces hydraulic fluid leakage and contamination.
• Enables quick and secure connect and disconnect operations, minimising operational downtime.

• Two (2) 1/2" Flat Face Male and Female Oil Supply/Return Ports (fitted with old Style Manifold Couplers) .
• One (1) 3/8" Flat Face Male Case Drain oil Return Port, (Essential for attachments with hydraulic motors, such as trenchers, chippers, grinders, profilers, and certain sweepers).
• Main Hose or Pipe Connections at the rear of the modular are as follows
• Main oil supplies = two (2) x 1-1/16" inch (# 17) JIC Male.
• Case Drain oil return = 1 x 9/16" inch (# 09) JIC Male.

• Engineered with high-strength case hardened steel materials for dependable performance in demanding environments.
• Rated for high-pressure hydraulic systems, (up to 280 bar or 4,000 psi) ensuring consistent leak free operation.

• Specifically designed for use with Bobcat Skid Steer and Track drive Loaders, models: S175, S205, S250, S300, S330, T140, T180, T190, T200, T250, T300, T320.
• Ensures direct and precise fitment, eliminating compatibility issues.
• Two off main mounting holes: Centers = 46.4 mm
• Main mounting Hole Diameters: = 10.95 mm
• Two "top of flange" mounting bolts for electrical bracket : = 25.4 mm Centers drilled and tapped 5/16 UNC

• Reduces equipment setup and changeover times, maximizing operational efficiency.
• Streamlines hydraulic system maintenance and troubleshooting.

• Suitable for a wide range of hydraulic applications in construction, agriculture, and industrial settings.
• Supports attachments requiring both standard hydraulic circuits and a case drain return.

• Model: Replacement for Faster 4BD4FH
• Type: Hydraulic Modular Manifold with 3 Quick Connect Flat Face Couplers
• Ports: 3-Ports, Two x 1/2" inch nominal bore Main ports, 1 x 3/8" inch nominal bore Case Drain port.
• Connection Type: Flat Face Quick Connect with Twist to Lock functionality
• Compatibility: Bobcat Skid Steer Loaders (S175, S205, S250, 864, T140, T180, T190, T200, T250)
• Material: High-Strength Case Hardened Steel, Zinc Plated for Corrosion resistance.
• Pressure Rating: High-Pressure 280 bar or 4,000 psi

• Minimizes operational downtime through rapid hydraulic connections.
• Flat Face Couplers virtually eliminate hydraulic fluid loss and contamination, lowering maintenance costs
• Secure and reliable hydraulic connections with Standard Twist to Lock" sleeve on all female couplers.
• Provides direct compatibility with a large range of specified Bobcat models.
• Direct replacement for the Faster 4BD4FH manifold.

MM 29/03/2025 all New
