Low Profile, Solenoid actuated, 3 Port Diverter Valve with 1/2" BSPP Ports, flows 60 to 80 Lt/min at 210 bar (3,000 psi), available with 12 or 24 Volt DC coils.

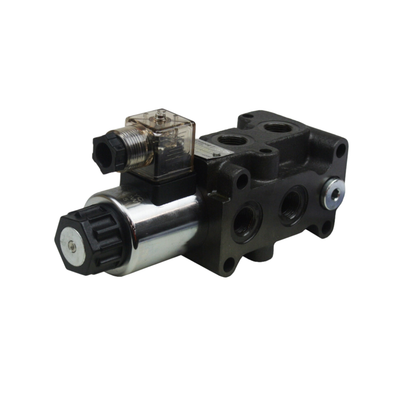

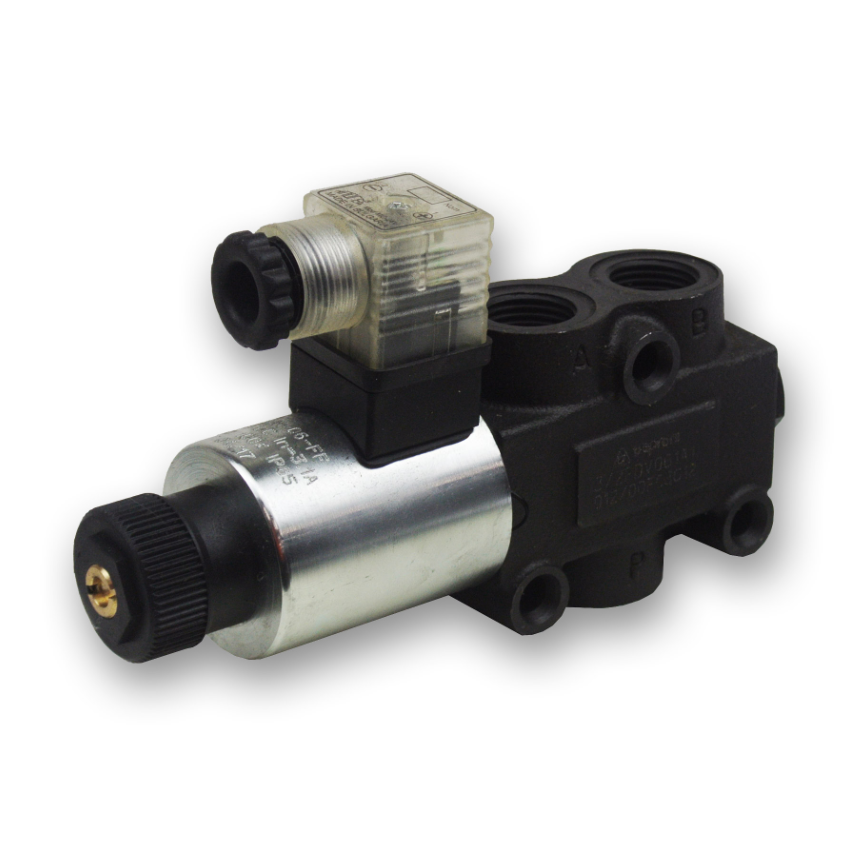

Made In Italy by Caproni this 3 Port Hydraulic solenoid actuated hydraulic Diverter valve is a simple way to add an additional or alternative Hydraulic oil supply or Function to a machine e.g. an additional oil supply to a new additional valve with extra functions.

Available with the following options

• 3/2- way flow diverter with solenoid operation
• 12 or 24 Volt DC solenoid coil with manual override.
• Removable DC voltage coils-quick replacement and rotation in any direction without leakage from the system
• Square electrical plug with LED indicator light,
• 1/2" BSPP ports flows 60 to 80 Lt/Min, rated to 3,000 PSI (210 bar) working pressure,
• Closed center on changeover.
• 210 bar (3,000 psi) working pressure (with no case drain requirement) .
• Coil Amp Draw
• 12 Volt DC = 4 amp
• 24 Volt DC = 2 amp

We carry a full range of hydraulic fittings, adaptors & hoses.

Please call us on 07 5563 1982 or on 1300 1 HOSES.

email us at sales@mhfgc.com.au with any questions
