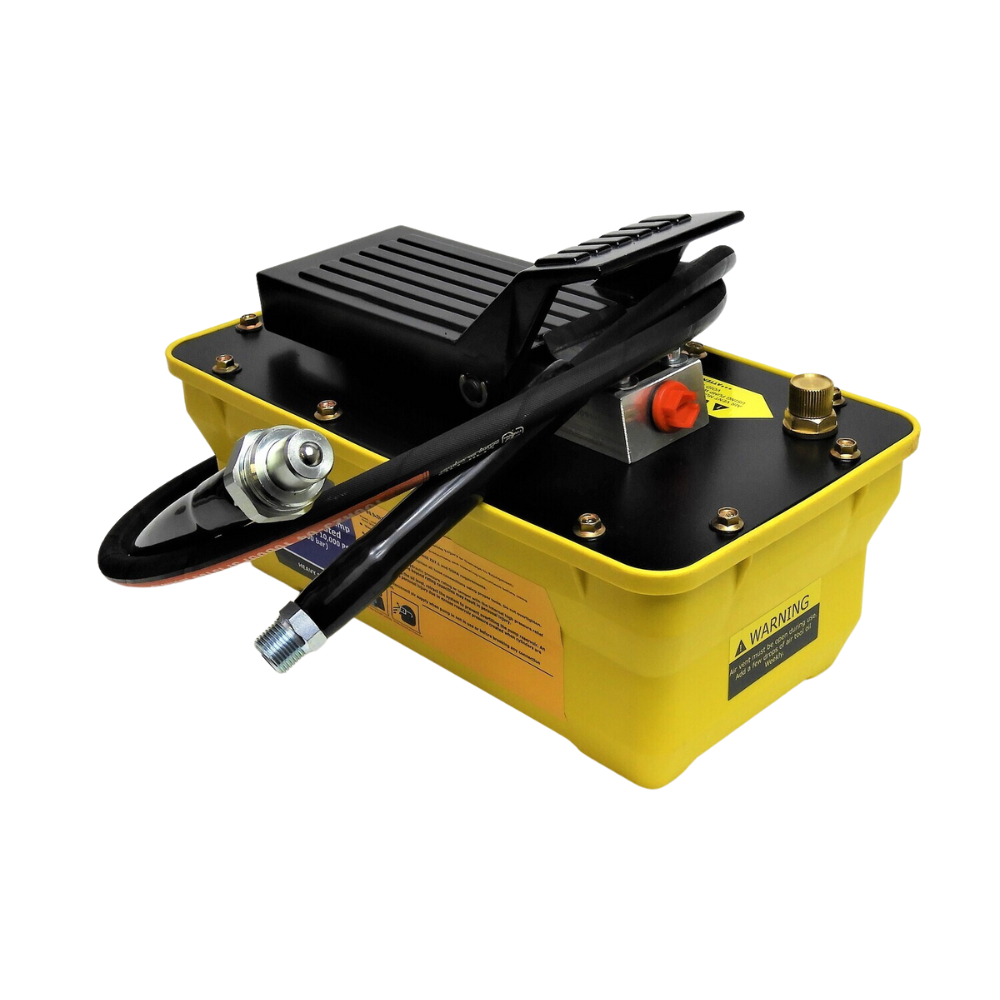

10,000 PSI Compressed air Operated 10,000 psi Hydraulic Pump with 2 Metre Hose & male High pressure coupler.

PLEASE NOTE NEWEST MODELS DO NOT HAVE SIGHT GLASS

Special Features

• All metal heavy-duty pump
• 2.3 liter Impact-resistant Plastic tank
  tank fitted with a filler breather cap.
• The unit has a Simple three-stage pedal operation, UP, HOLD, RELEASE.
• Push forward pump starts to generate flow and pressure
• Pedal-to-middle position pumps stop and hold the pressure and or load
• Press Back and pressure is released and the load is dropped or removed.
• Provision for mounting to any surface using appropriate length self-tapping screws.
• Unique breather/transport cap.
• Ergonomically designed aluminum foot pedal (can also be hand actuated)
• Powder-coated steel tank cover.
• SINGLE-ACTING AIR-ACTUATED HYDRAULIC PUMP 10,000 PSI (685 BAR)

Supply this pump with 100 PSI of compressed air and it will generate up to 10,000 PSI Hydraulic Oil pressure to actuate or operate any single-acting implement or attachment.
Supplied with a 2 m long ultra high-pressure hose and screw-together couplers.

Depending on the size of the Jacking Cylinder used and the air pressure supplied you can generate massive lifting or pressing forces.

Most people acquire this popular pump and hose package because it gives them more speed, more control, and more safety than the slow manually actuated hand pumps.

Used by Auto Body Repair Shops, Mechanical & Fabrication shops as well as in the field by mechanics to more quickly Press, Pull, Push and Pry Apart parts.

Boilermakers will use this pump: to Punch, Bend, Shear, Cut or Twist materials using specialist High-Pressure Hydraulic cylinders, rams and attachments.

Applications include

• High-pressure supply for scissor lifts for lifting cars and motorcycles.
• Supplying cylinder attachments in collision repair shops and Auto body frame pulling machines and racks.
• Clamping cylinders in fabrication Workshops.
• Pipe and Tube Benders
• Torque Multipliers in oil, gas, and mining equipment
• .Bolt tensioners and nut splitters
• Cable crimpers and terminations for electrical, marine, fencing, and safety barriers.
• Bridge Jacking.


• Frame straighteners in auto collision centers.

• Spreading attachments in mechanical workshops
• Axle correction in trucks buses and other transport equipment
• Suspension and alignment workshops.

Also Widely Used by:

• Auto body shops, Panel Beaters, frame straighteners,
• Suspension shops, Hydraulic presses, Mechanical Workshops,
• Car jacks, Scissor Lifts, Rescue equipment,
• Torque Multipliers, Punches, Shears Expanders, and Cutters.
• Pull cylinders for structural steel, panel beating, Shipbuilding, and cable or tower tensioning

This is a Quality unit Built with an all-metal pump assembly, heavy-duty seals, and a large 2.3-liter oil tank made from impact-resistant ABS plastic.

Unique features include.
Vary the air in pressure in vary oil out pressure (minimum 60 PSI)
Hand or Foot operation The units come with a two-meter-long Ultra high-pressure hose rated to 10,000 psi working pressure complete with male high-pressure couplers and bend restrictors for longer hose life.

Oil-level sight glass in the tank wall ( not available on Some Models )
3 in one filler breather transport cap.

Larger than average impact-resistant Hydraulic oil tank with 2.3 liters capacity made from Partially recycled ABS Plastic.

Compatible and interchangeable with the majority of tooling: manufactured for of by a large range of other air hydraulic pump manufacturers such as Fleet-Hydrol, Durapac, Enerpac, Simplex, SPX, Power Team, Porta Power, Porto power, Power ram, for all High pressure Pressing Bending Lifting Pulling Torque Multipliers Tensioning requirements.

The operation, Simple foot pedal or hand operation

This Single-speed pump is a simple operation and easily portable due to its lightweight, compact design.

Pump output pressure can be easily adjusted by adjusting air input pressure with an air pressure regulator (also available from this Store), for example
100 PSI compressed air input = 10,000 PSI oil pressure output,

This ENGMATTEC Pump uses the principle of Intensification to generate 10,000 PSI of oil pressure with only 120 PSI of Compressed air.
62 PSI compressed air input = 5,000 PSI oil pressure output.
Air consumption at 100 Psi = 339 liters per minute.

The single-speed pump is used to operate single-acting High-Pressure Cylinders and tooling.
We can also supply Compressed Air Filter Regulators and Lubricators,

Click here to see our Compressed Air, Filter, Regulator, Lubricator

This product is compatible with a wide range of tooling and accessories from such brands as Fleet-Hydrol, Durapac, Enerpac, Power Team, and Porta Power

Please note that
this unit does come filled with 2.5 liters of light hydraulic oil.
