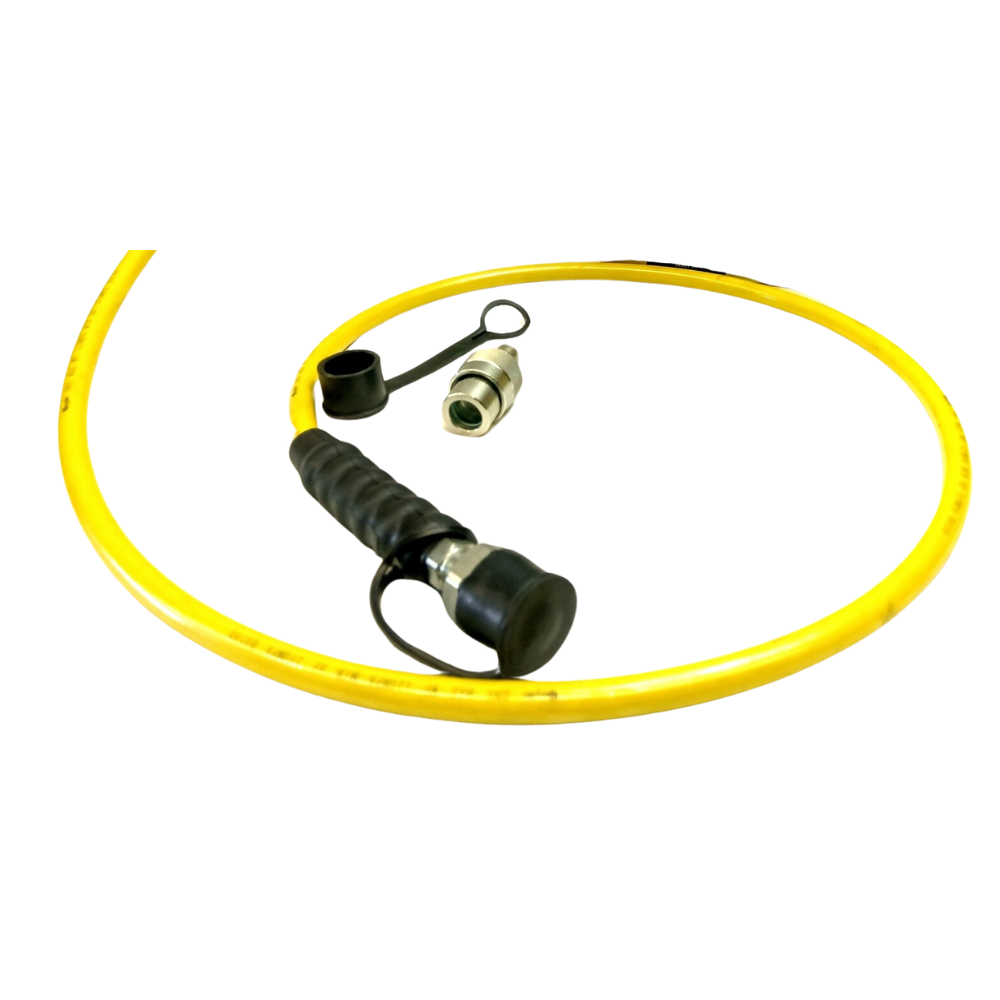

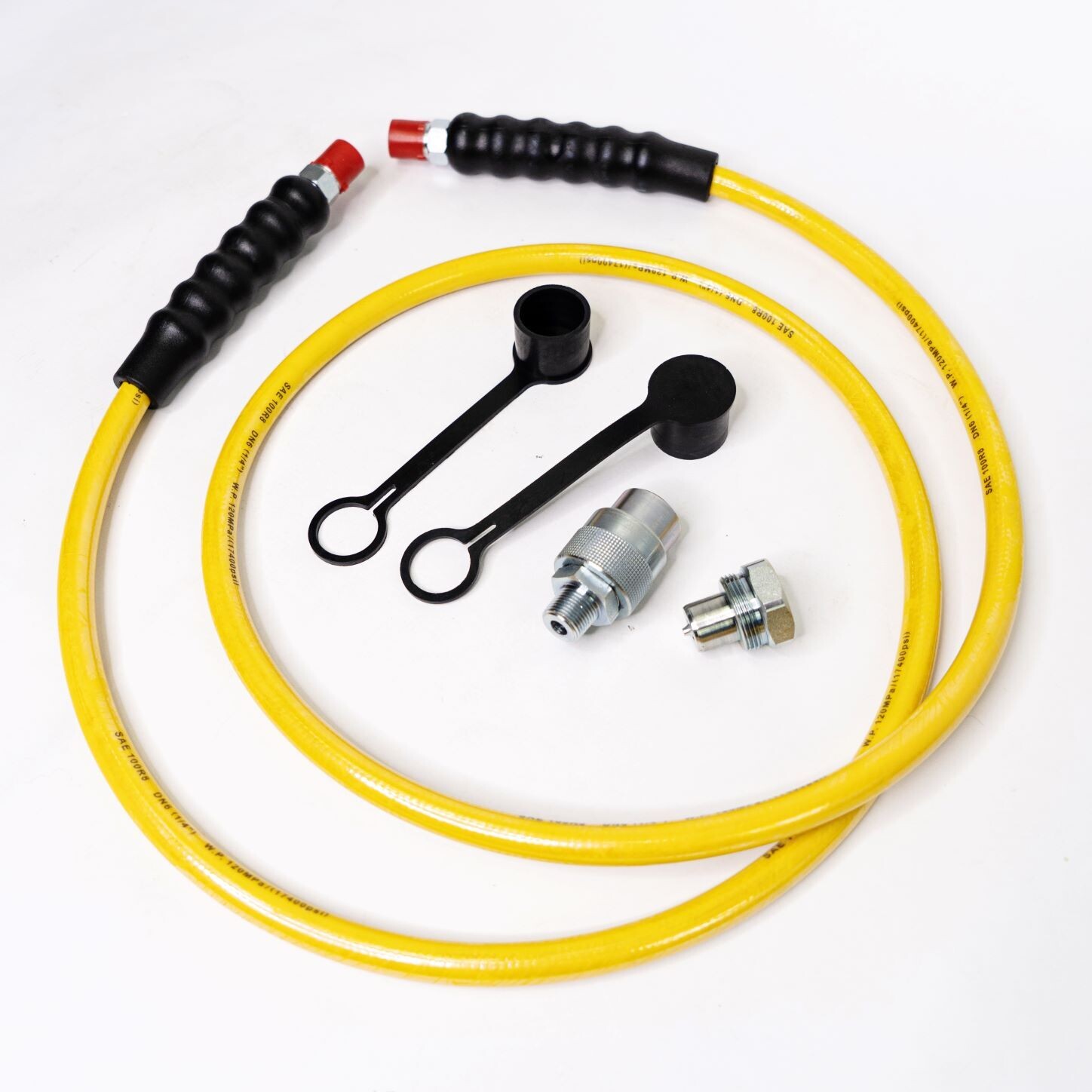

ENGMATTEC 2m Hi-Vis Yellow Ultra High-Pressure Jacking Hose – 17,400 PSI (1,200 Bar) with Screw-Together Couplers and Dust Cap.

The ENGMATTEC UHP-120 Series is a professional-grade, ultra high-pressure (UHP) hydraulic hose engineered for extreme-duty applications.
Designed for environments requiring a significantly higher pressure ceiling than standard 10,000 PSI lines, this hose is the "no compromise" choice for heavy-tonnage jacking and precision bolt tensioning.

Professional Overview

Finished in Hi-Vis Yellow for enhanced onsite safety and visibility, this hose is rated for a massive 17,400 PSI (1,200 Bar) working pressure.

To ensure maximum longevity and operator safety, it features a multi-layered high-tensile steel wire reinforcement.

This construction ensures minimal volumetric expansion, providing the precise control required for high-tonnage cylinders and specialised torque tools.

Technical Specifications

• Working Pressure: 17,400 PSI (1,200 Bar)
• Minimum Burst Pressure: 42,600 PSI (2,937 Bar)
• Safety Factor: Approx. 2.4:1 (Specific to UHP Static Jacking Standards)
• Internal Diameter: 6.4 mm (1/4")
• Outside Diameter: 14 mm (0.55")
• Length: 2 Metres Custom lengths available on request.
• End Fittings: 3/8" NPT Male with 19 mm (3/4") Hex
• Construction: Polyamide (PA) Inner Tube, Steel Braid Reinforcement, Polyurethane (PU) Cover
• Protection: Heavy-duty bend restrictors, Screw-together Couplings and dust caps included.

System Compatibility

This hose is a universal fit for ultra high-pressure systems, including hand, foot, air-powered, or electric hydraulic power packs. It is fully compatible with single and double-acting tools from leading global and Australian brands:

• Brands: Enerpac, Power Team, Durapac, Fleet-Hydrol, Porta Power, KC Tools, Larzep, and Parker.
• Equipment: Hydraulic presses, bolt tensioners, torque multipliers, rescue equipment, frame straighteners, and heavy-duty scissor lifts.

Technician’s Advice

"At 1,200 Bar, the energy stored in a hydraulic line is immense. We’ve specified this hose with a Hi-Vis Yellow jacket to prevent trip hazards and accidental damage on busy Tier-1 worksites.

The screw-together couplers are far superior for high-vibration applications as they prevent accidental disconnection under load."

"Always ensure dust caps are fitted the moment the hose is uncoupled; even a single grain of grit at these pressures can score cylinder walls or destroy pump valving.

If you require custom lengths for permanent workshop installations, please contact us for a certified assembly."

⚠️ Safety Warning & Compliance

Ultra High-Pressure hydraulics (1,200 Bar) require specialised training. Improper installation or use can lead to catastrophic failure, fluid injection injuries, or death.

• Application: This hose is designed for Static Jacking and Tensioning only. It is NOT for use on dynamic machinery with high pressure spikes.
• Exclusion Zone: Personnel must maintain a safe distance during operation. Never touch a hose under pressure.
• Verification: Ensure all gauges, fittings, and cylinders in your circuit are rated to at least 17,400 PSI before operation.

Need a custom solution? Click here for Custom Made Hose Lengths and NATA Certified Assemblies.

Professional Overview This premium ENGMATTEC ultra high-pressure (UHP) hose is engineered for extreme-duty applications requiring a higher safety margin than standard 10,000 PSI lines.

Suitable for all portable or permanent: Ultra High Pressure hand or foot, compressed air, and electrically operated hydraulic pressure packs.

Widely Used by Auto body shops:, frame straighteners, Suspension shops, Hydraulic presses, Mechanical Workshops, Car jacks, Scissor Lifts, Rescue equipment, Torque Multipliers.

Key features Used to supply ultra high pressure oil to operate single acting presses, pullers, benders, shears, punches, cylinders and tooling.
