PLEASE NOTE NEWEST MODEL DOES NOT HAVE SIGHT GLASS

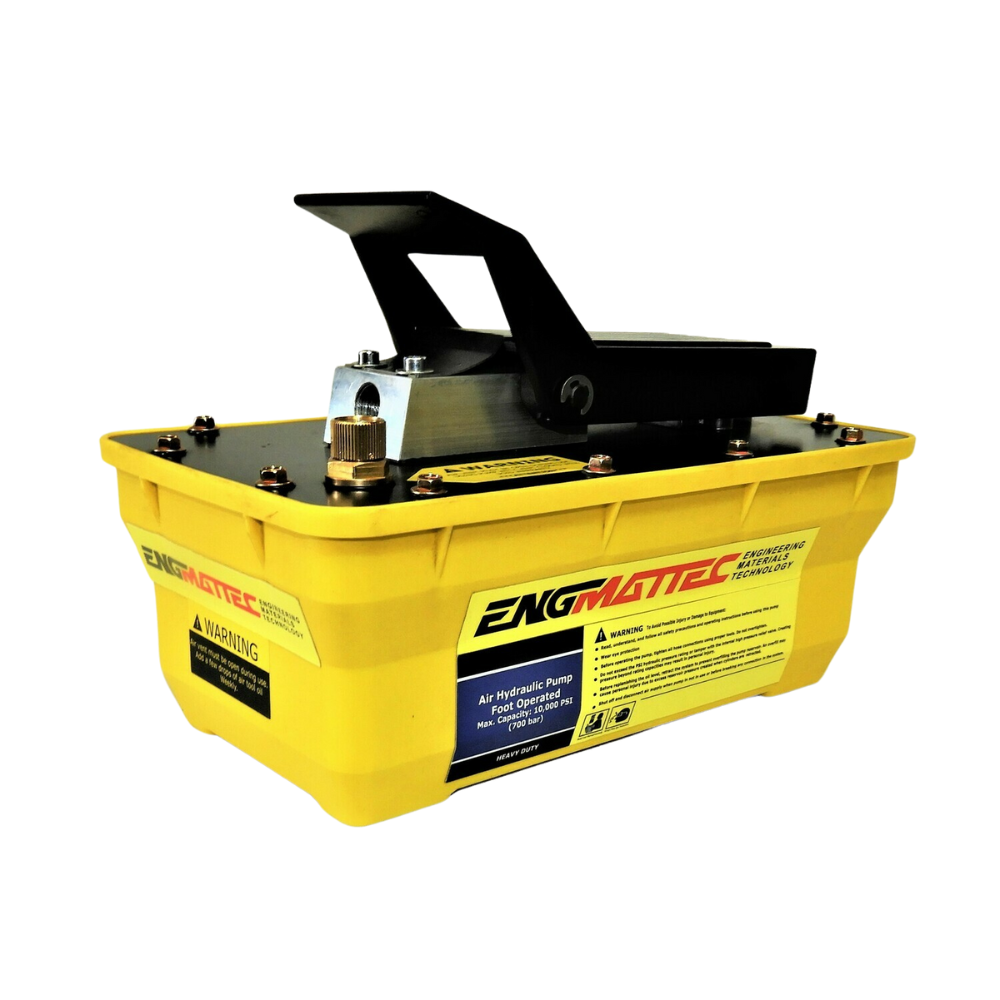

Compressed air-operated pump or portable Hydraulic power unit will generate up to 10,000 psi oil pressure when supplied with compressed air at 100 psi.

THIS SALE DOES NOT INCLUDE THE JACKING HOSE OR COUPLERS, hose available separately, or purchase the pump, hose and couplers together in a bundle.

You can use this pump in a multitude of applications including

• Supplying HP cylinder attachments in Hydraulic Presses.
• Supplying high-pressure oil to attachments used by collision repair shops and Auto body frame Straighteners and pulling racks.
• Clamping cylinders in Workshops.
• Pipe and Tube Benders.
• High-pressure supply for scissor lifts for lifting cars and motor cycles.
• Spreading and pulling attachments in mechanical workshops, panel beaters and body shops .
• Axle correction in trucks, busses, and other transport equipment
• Suspension and alignment workshops.
•
  Torque Multipliers in oil, gas and mining equipment applications.
• Bolt tensioners and nut splitters.
• Cable crimpers and terminations for electrical, marine, fencing and safety barriers.
• Bridge Jacking.

Widely used in Mechanical & Fabrication shops as well as in the field to Bend, Press, Pull, Push or Twist materials using specialist hydraulic attachments.

Safe for mining environments, and or other situations when electricity and possible sparks are prohibited.

This is a Quality unit Built with an all-metal pump assembly heavy, duty seals, and large 2.3 liter oil tank made from impact resistant ABS plastic.

it is also fully rebuildable with parts kit readily available at reasonable prices.

Unique features include.

• Vary the supply air pressure to vary oil pressure out (minimum 20 PSI will deliver 1800 PSI oil pressure)
• Watch our video Below to see how you can do this.
• Oil level sight glass
• 3 in one filler breather transport cap.
• 3 way Foot or Hand operation possible.
• Larger than average oil tank capacity

Simple foot pedal operation

• Push forward pump starts to generate flow and pressure
• Pedal to middle position pumps stops and holds the pressure and load
• Press Back and pressure is realased and load is removed.

SINGLE ACTING AIR ACTUATED HYDRAULIC PUMP 10,000 PSI (685 BAR)

By supplying only 100 PSI of air pressure we were able to generate up to 40 tons of force.

Go to 1:02 to see unboxing and set up.

Go to 5:32 for testing features and connecting to existing press hydraulic system.

We can also supply air filter regulators, please see our other listings.

Buy with Confidence from a long established Hydraulics Business, get a 12 month warranty and an Australian Tax Invoice.
