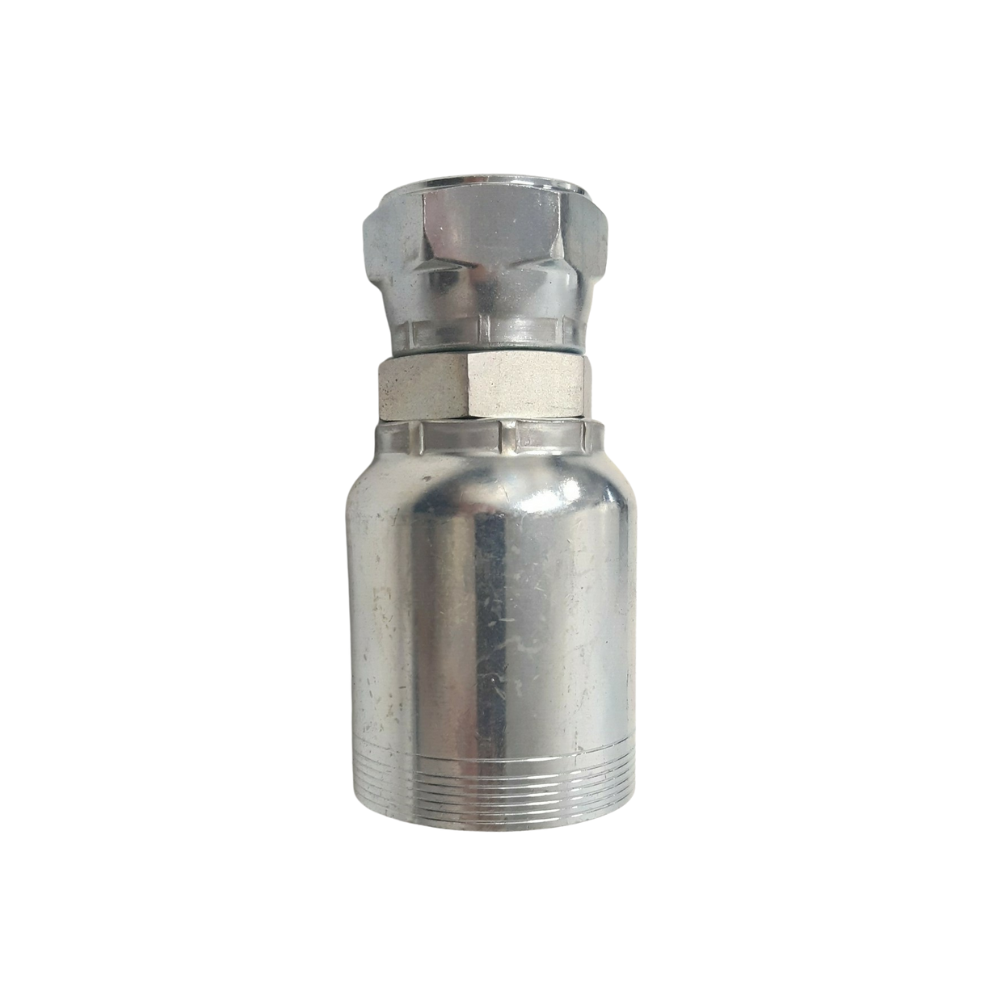

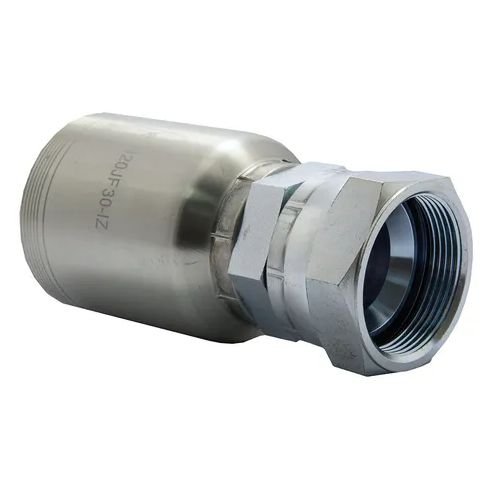

Ultra High-Pressure 6000 psi JIC Female Crimp On hydraulic Hose Tail
Non-Skive design with 37˚ Seat matched to fit (415 bar) 6,100 psi SAE100R15 Multi-Spiral Hydraulic Hose.

Available in various bore Sizes from 5/8" to 2" inch inside diameter.

Also available made to order custom hose assemblies, from just a Single hose, Small batches or even Large orders,
These are Matched High-Pressure Hose Assemblies made to Your Exact Requirements, that are also MDG41 Compliant

Shipping Available to your Door Australia Wide.

Technical Specifications:
Convenient one piece Non-Skive Crimp on Design for Ultra-High Pressure Hose Applications made to match all Hydraulic hoses manufactured to SAE100R15 Specification Multispiral Hose.

Click Here for Matching MDG41 Compliant Multispiral Hose

Click here for Longer lengths of 100R15 at Sharper prices.

JIC fittings are the industry standard for a reason—the 37° flare provides a reliable metal-to-metal seal.

Because these N Series tails are built for ultra-high pressure (6,000 psi), the wall thickness of the fitting is significantly heavier than standard fittings.

Always verify your thread size using a pitch gauge if you are unsure, as JIC threads (UNF) can look very similar to SAE threads but use a completely different sealing face.

Remember: for the smaller 3/8" and 1/2" hose sizes, you'll need to drop back to the L Series to ensure a correct fitment.

Compliance Standards: MDG41 & AS 2435 Matched System Guarantee

Both Australian Standards and mining guidelines mandate that the hose, fitting, and ferrule be laboratory-tested together as a unified system to prevent catastrophic failure or fluid injection injuries. We do not support "mixing and matching" brands; using incorrect swage dimensions on ultra-high-pressure SAE 100R15 lines (rated to 420 bar / 6100 psi) significantly increases the risk of hose blow-offs and is a breach of site safety protocols. We will always recommend and provide the specific high-pressure hose that is manufactured to match the fittings we sell, ensuring a fully engineered N Series non-skive assembly.

Please send us a message for more information.
Email: sales@mhfgc.com.au

Phone: 07 5563 1982 or 13001 HOSES
Hours: 8 am to 5 pm Monday - Friday, QLD time excluding public holidays
If you have any questions please don’t hesitate to contact us
Best regards,

Hydraulic.Online
Improper Selection, Installation, Implementation, And / Or Operation By Anyone Other Than Persons With Appropriate Technical And Mechanical Training Can Result In Damage To Equipment Or Property, Serious Personal Injury, Or Death. Proper Precautions And Safety Procedures Should Be Implemented Prior To The Installation And Operation Of Equipment.
