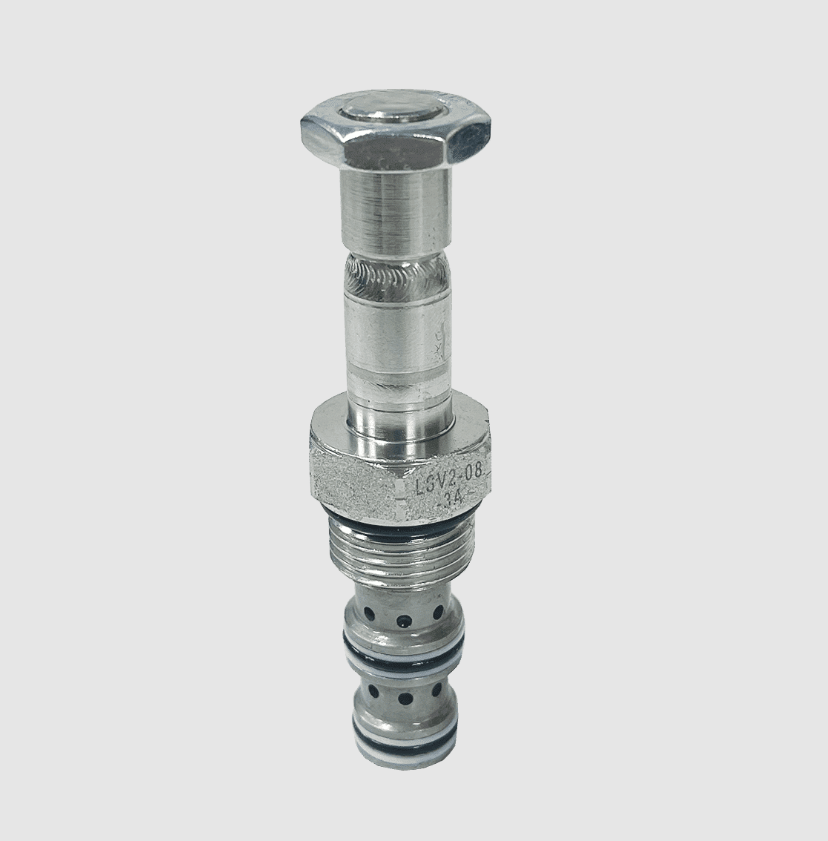

3 Way 2 Position Spool-Type Cartridge Solenoid Valves are a very compact electrically actuated Hydraulic Flow Control Valve.

These Cartridge valves are screwed into 3 way Aluminium or steel manifolds called bodies.

The manifolds have either 1/4" or 3/8" BSPP female ports and flow between

4 and 11 Lt/min for Series 08 Cartridges and

7 and 22 Lt/min for series 10 Cartridges

Click here to purchase a 3 way Body

For Example

A Three way Two Position Spool Type Cartridge Valve with a (12, 24 or 240 volt) Solenoid coil, that will

When de-energized, the valve allows flow between port 2 and port 1 while blocking flow at port 3.

Available Options

Also available in this listing are a range of Cylindrical Solenoid Coils and Hirschmann Type DIN Plugs

Cylindrical Solenoid Coils: in Various Voltages from 12 or 24 V DC and 110 or 220 V AC

Din Plug with Red Led and Varistor: Special Multiple Voltage item will work from 1 to 250 Volts in AC or DC
