High Flow 3 Port Hydraulic Diverter Valve Various Flows
SKU DDF3
AU$115.85
Christmas Sale 🎄
PORT SIZE
CENTRE
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
High Flow 3 Port Hydraulic Diverter Valve Various Flows
Product Details
Brand: OLEOWEB
Weight: 3.00 kg

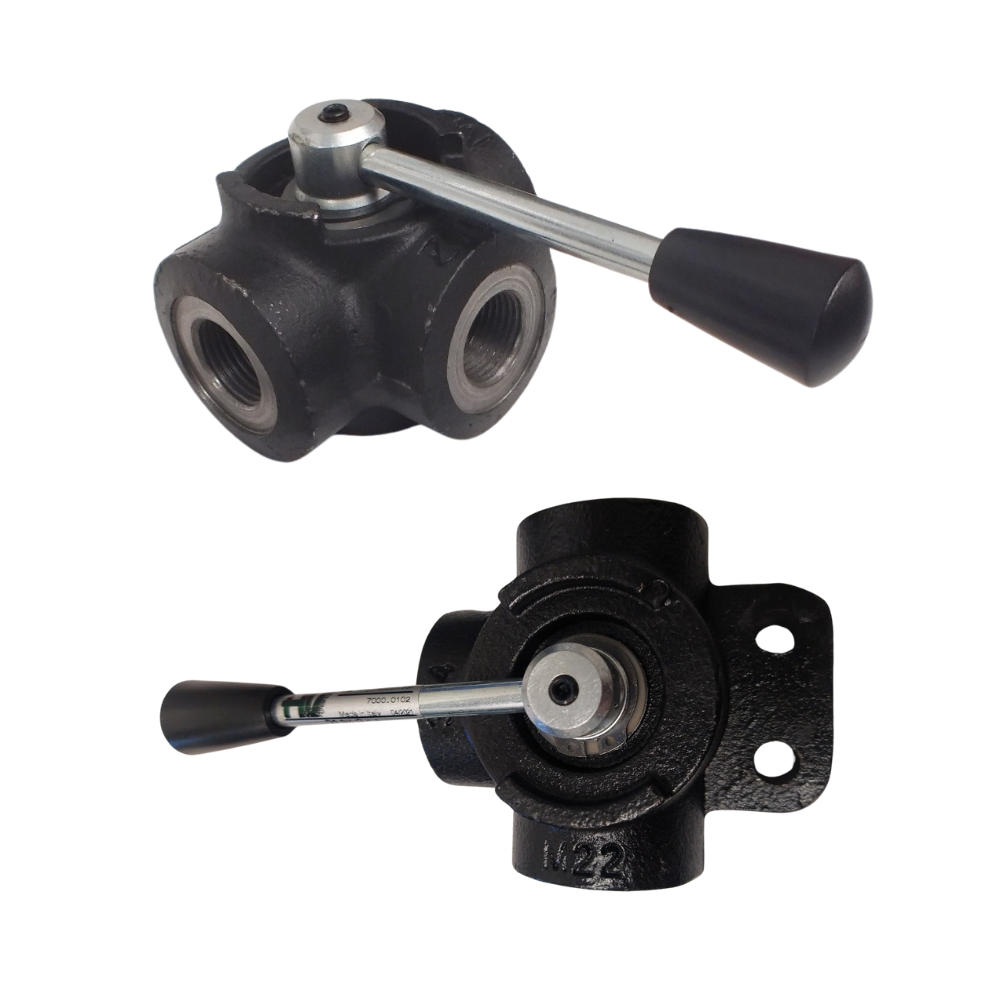

High Flow 3 Port Hydraulic Selector / Diverter Valve with Manually actuated Swing type Lever
Available in two internal Port Configurations and Various Flow Volumes

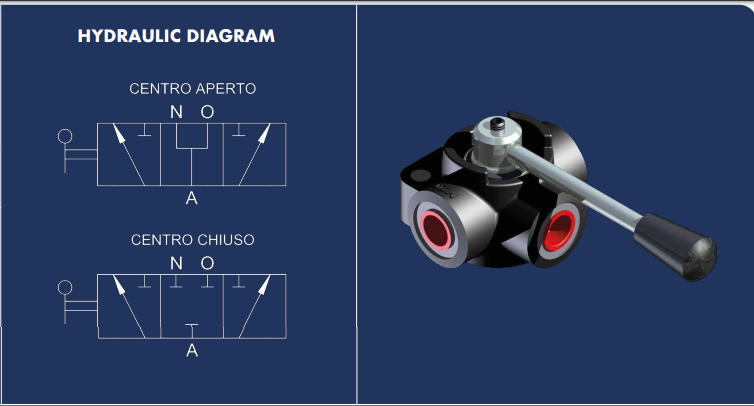

There are two versions available. A 'Open Center ' or B Closed Centre
Open Centre means that when you change the lever position, for the second or 2 it takes to rotate, oil still flows through valve to both ports,. This is the most commonly used option, this design will not cause a Pressure 'spike' on crossover.
Closed Centre will block oil flow from the valve or pump momentarily on crossover.
|

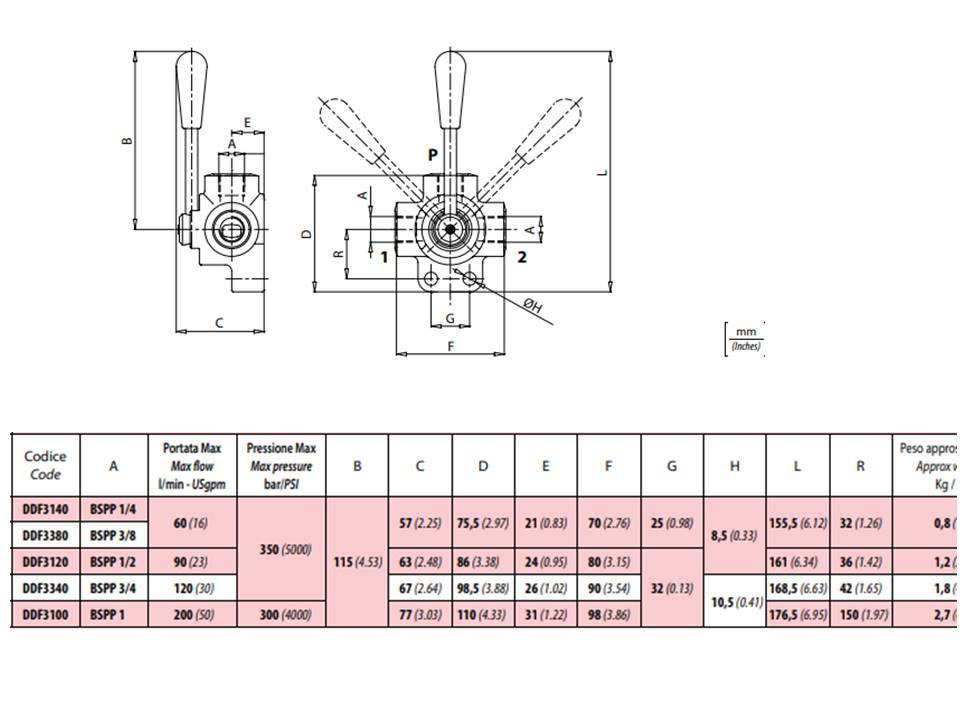

PART NUMBER |
PORTS |
MAX PRESSURE |
MAX FLOW |
SPOOL CROSSOVER |
||||
|
DDF3380B |
3/8BSPP |
350BAR |
60LPM |
CLOSED CENTRE |
||||
|
DDF3120B |
1/2BSPP |
350BAR |
90LPM |
CLOSED CENTRE |
||||
|
DDF3340B |
3/4BSPP |
350BAR |
120LPM |
CLOSED CENTRE |
||||
|
DDF3100B |
1"BSPP |
300BAR |
200LPM |
CLOSED CENTRE |
||||
|
DDF3380A |
3/8BSPP |
350BAR |
60LPM |
OPEN CENTRE |
||||
|
DDF31201 |
1/2BSPP |
350BAR |
90LPM |
OPEN CENTRE |
||||
|
DDF3340A |
3/4BSPP |
350BAR |
120LPM |
OPEN CENTRE |
||||
|
DDF3100A |
1"BSPP |
300BAR |
200LPM |
OPEN CENTRE |
||||
Buy with Confidence from a long established Hydraulic Service Center get a 12 month warranty and an Australian Tax Invoice.
Email: sales@hydraulic.online
Phone: 07 5563 1982
Hours: 8am to 4pm Monday - Friday, excluding public holidays
Tax invoices are supplied with every purchase
Out of Stock
It is our desire to always have every listed item actively in stock. Occasionally (but very seldom) due to high demand, short supply or human error we may be momentarily out of stock on an item.
If this happens you will be notified and given the option to either cancel for a full refund or wait for the part to come in (typically 3-14 days).
If you have any questions please don’t hesitate to contact us for further assistance,
Best regards,
Hydraulic.Online
IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
