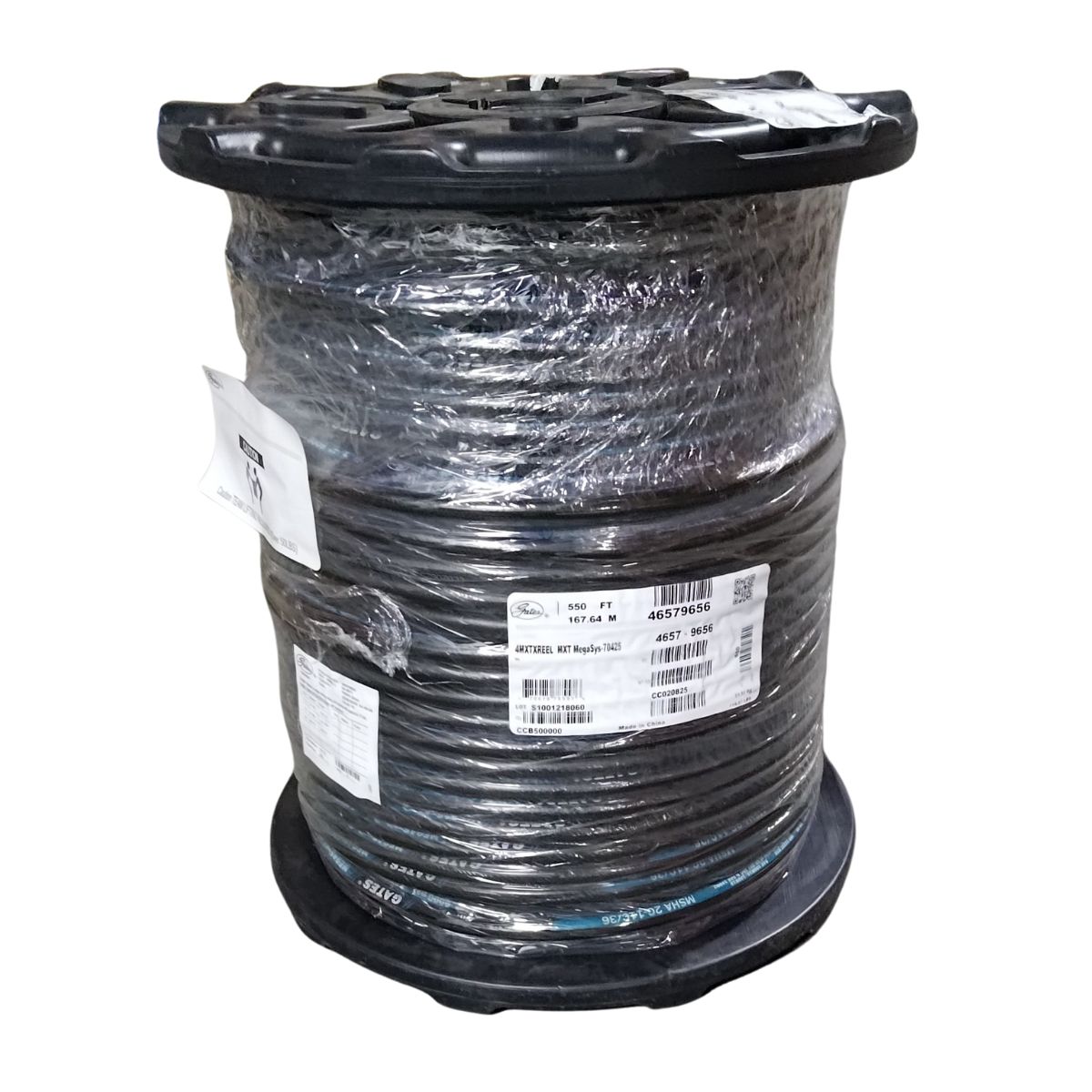

Gates MXT is the latest premium hydraulic hose technology from Gates and is engineered to deliver unmatched performance. This one‑wire braided hose offers a compact outer diameter, low weight, and exceptional working pressures, making it ideal for modern hydraulic systems where space and weight matter.

Why choose Gates MXT?

1. FRAS‑certified: MXT hoses are Flame‑Resistant and Anti‑Static, meaning they’re designed to prevent ignition hazards in explosive. Non‑FRAS hoses can build up static electricity and cause sparks, leading to explosions, fires and equipment. Queensland’s Chief Inspector of coal mines urges site executives to audit FRAS equipment and ensure only compliant hoses are used. FRAS rating is mandated in many mining applications under the Coal Mining Safety and Health Regulation 2017.
2. MDG‑41 compliance: The NSW MDG‑41 guideline manages risks associated with hydraulic/fluid power systems in mines. It states hoses must comply with ISO 6805 or SAE J517 and meet requirements for pressure rating, temperature, abrasion and fire resistance. The guideline promotes hose management programs to reduce downtime and risk.
3. High pressure & durability: MXT exceeds SAE 100R16 and EN853‑2SN / EN857‑2SC working pressures, with impulse testing surpassing three times industry standards – more than 600,000 cycles at 130 % of maximum working pressure.
4. Flexible & compact: A small bend radius and 40 % lower bending resistance make installation faster and easier, especially in tight spaces.
5. Long life: Synthetic Nitrile tube with a single layer of high‑density steel wire reinforcement and an oil‑/ozone‑/abrasion‑resistant cover ensure long service life.

Applications

Ideal for high‑pressure hydraulic systems in mining, quarrying, construction, agriculture and industrial equipment, especially where FRAS certification is mandatory (e.g., underground coal mines, tunnels and hazardous processing plants). Suitable for petroleum‑based fluids, water, air, water‑glycol, fire‑resistant fluids, hot oil, grease, lubricants, crude and fuel oils. Note: For compressed air above 100 psi, the cover should be pin‑pricked.

Available Full‑Roll Sizes

Fittings & Compatibility

For optimal safety and performance, Gates MXT hoses must be assembled using genuine Gates one‑piece Megacrimp™ fittings. We stock these Megacrimp fittings, as well as a two‑piece Gates ferrule system with matched hose tails. Both systems are fully compliant and backed by R&D, ensuring your hose assemblies meet MDG‑41 matched fittings requirements.

Compliance & Safety

• MDG‑41 & Recognised Standard 23: Our hoses help meet the requirements of MDG‑41 for fluid power system safety, including hose management and fire resistance. Queensland’s Recognised Standard 23 emphasises FRAS materials and proper hose selection.
• Fire & static risk reduction: FRAS‑rated hoses are designed to prevent ignition, minimise static build‑up and resist flame, reducing risks of explosions, fires and equipment damage.

Benefits in Mining & Heavy Industry

• Safer Operations: FRAS hoses help protect workers by reducing fire and shock hazards.
• Regulatory Compliance: Using FRAS hoses ensures compliance with NSW MDG‑41 and Queensland mining regulations requiring fire‑resistant and anti‑static materials for certain equipment.
• Reduced Downtime: MDG‑41 recommends developing a hose management program to cut downtime and maintain peak performance. MXT’s durability means fewer replacements and less maintenance.

For pricing, stock availability or help selecting the right hose and fittings for your application, call our friendly team today. We provide expert advice and ship nationwide.

Email: sales@hydraulic.online

Phone: 1300 1 HOSES or 07 5563 1982

Easier Installation: Flexible, compact design makes routing hoses in tight machinery easier, reducing labour time and improving ergonomics.
