P32 2" Hydraulic Crimper, 14-75mm Automatic Foot Pedal 13 Dies
SKU HYD-P32NMS-1PH
AU$9 975.00
Black Friday Sale! 💥
was AU$12 500.00 Save 20%
Voltage
Please choose
In stock: 2 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
P32 2" Hydraulic Crimper, 14-75mm Automatic Foot Pedal 13 Dies
Product Details
Brand: ENGMATTEC Sunflex
Weight: 253.00 kg

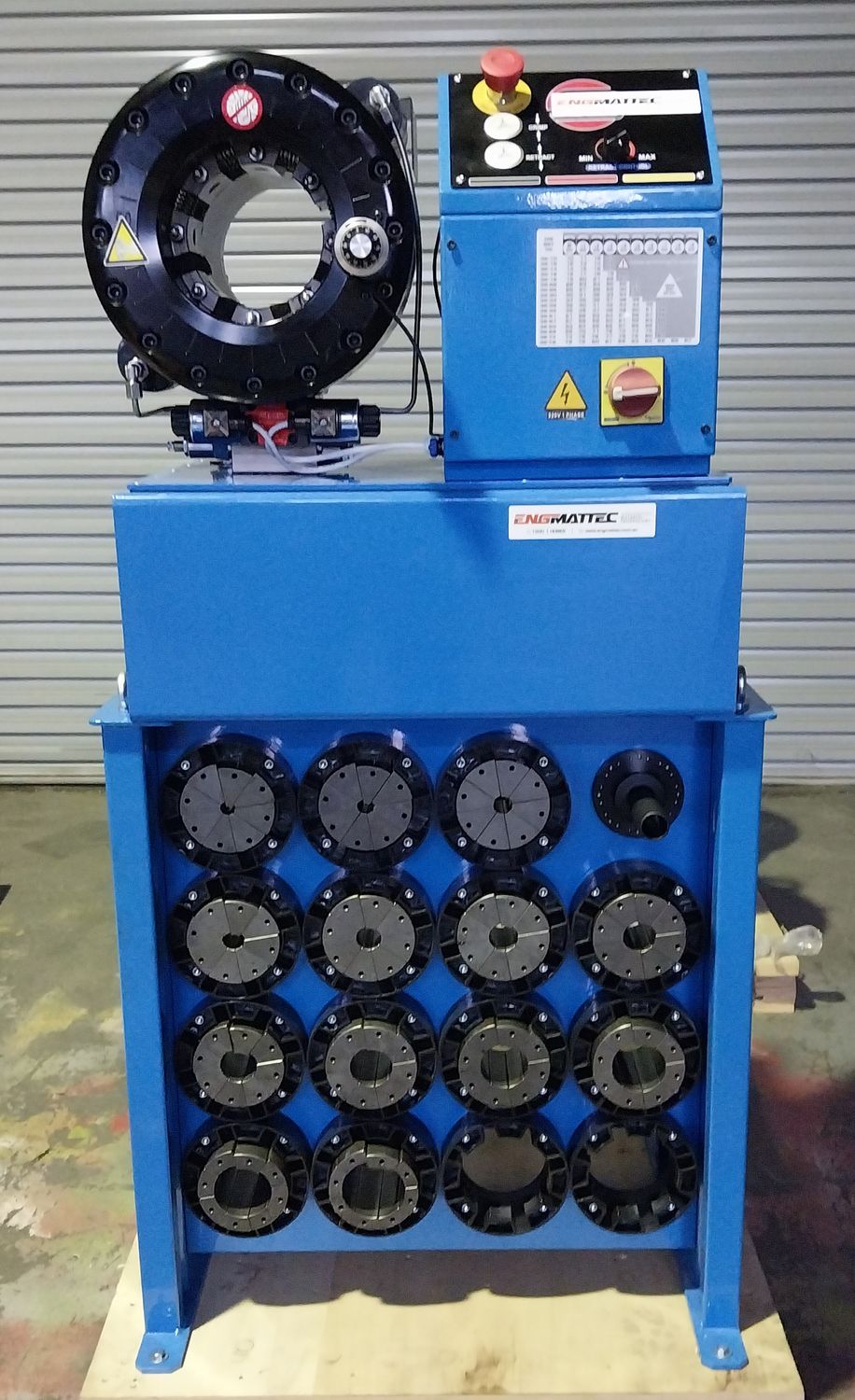

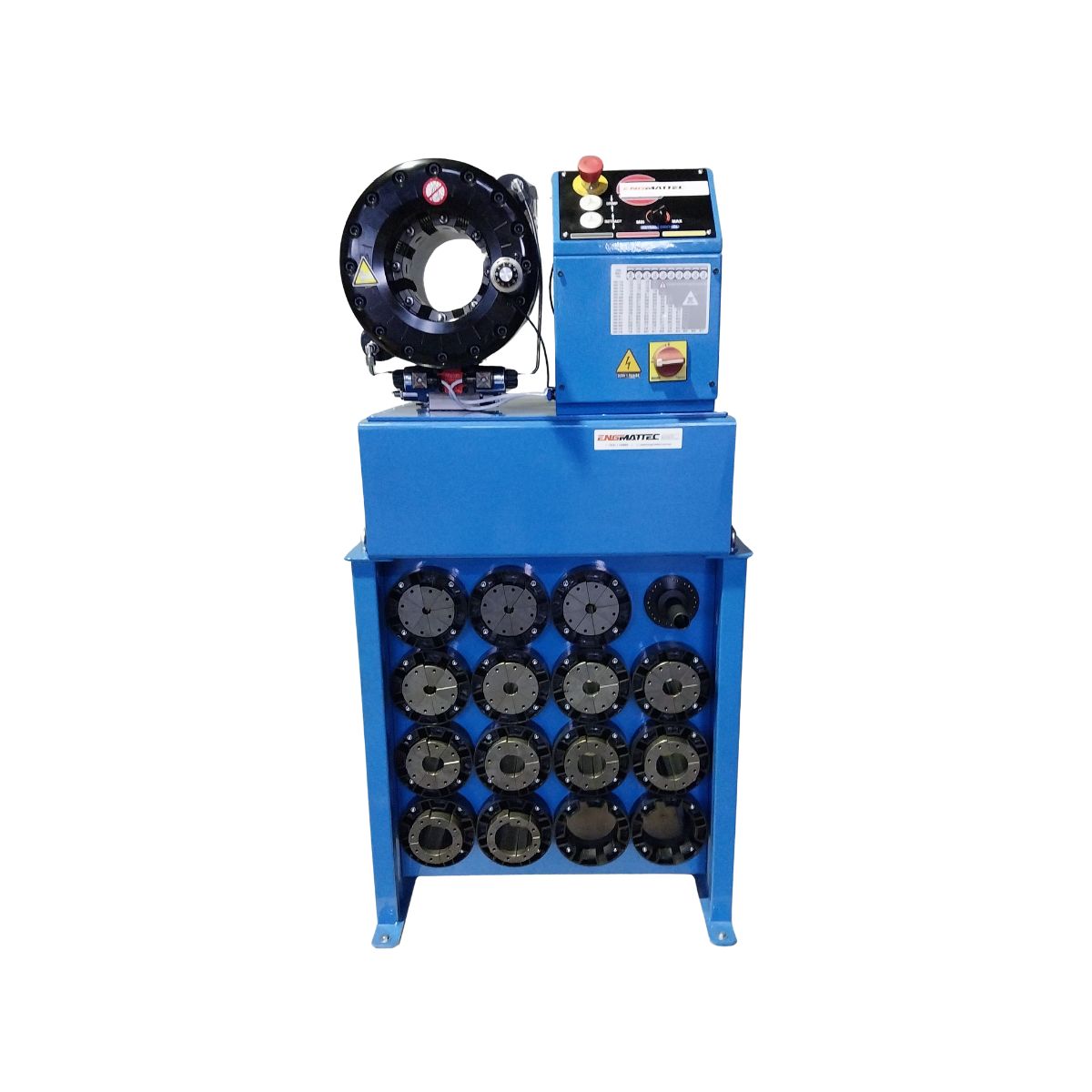

ENGMATTEC P32 Full Automatic Control 240 Volt AC Single Phase, 2 inch hydraulic Hose Crimping Machine, with 60 Lt Oil tank, and Die Rack with 13 PC die Set.
FEATURES:
Crimps from 14 to 73 mm (with Standard 13 die sets)
Full automatic control with foot pedal
Quick change tool and die rack (13 die sets as standard)
Automatic built-in PLC Control Module
Voltage
- Available with a 3 kW 240 Volt AC single phase motor
- or a 415 Volt AC 3 Phase Motor.
- or 24 Volt DC Model also available (see Options)
Energy saving features with safe operation.
TUV CE Approved
Die sets included: 14, 16, 19, 22, 26, 30, 34, 39, 45, 51, 57, 63, 69mm
| Max Hydraulic Hose | 2 " inch 4SP |
| Crimping Range (mm) | 14-73mm (standard 13 die sets) |
| Die Type | P32 |
| Master Die Length | 80mm |
| Max. Opening (mm) | +32mm |
| Motor kW | 3kW (240 V AC ingle phase) |
| Crimping Force kN | 2,200 |
| Crimps Per Hour | 1,200 |
| Noise Level (dBA) | 65 |
| Protection Rating | IP56 |
| Dimensions | 680mm x 600mm x 1400mm |
| Weight | 300 kg |
Standard Die Sets Included:
Die Size 10* 12* 14 16 19 22 26 30 34 39 45 51 57 63 69 74* 78*
* Optional or Special Die sets or dedicated die sets for RYCO, PARKER, Manuli, and Eaton hose available upon request.
