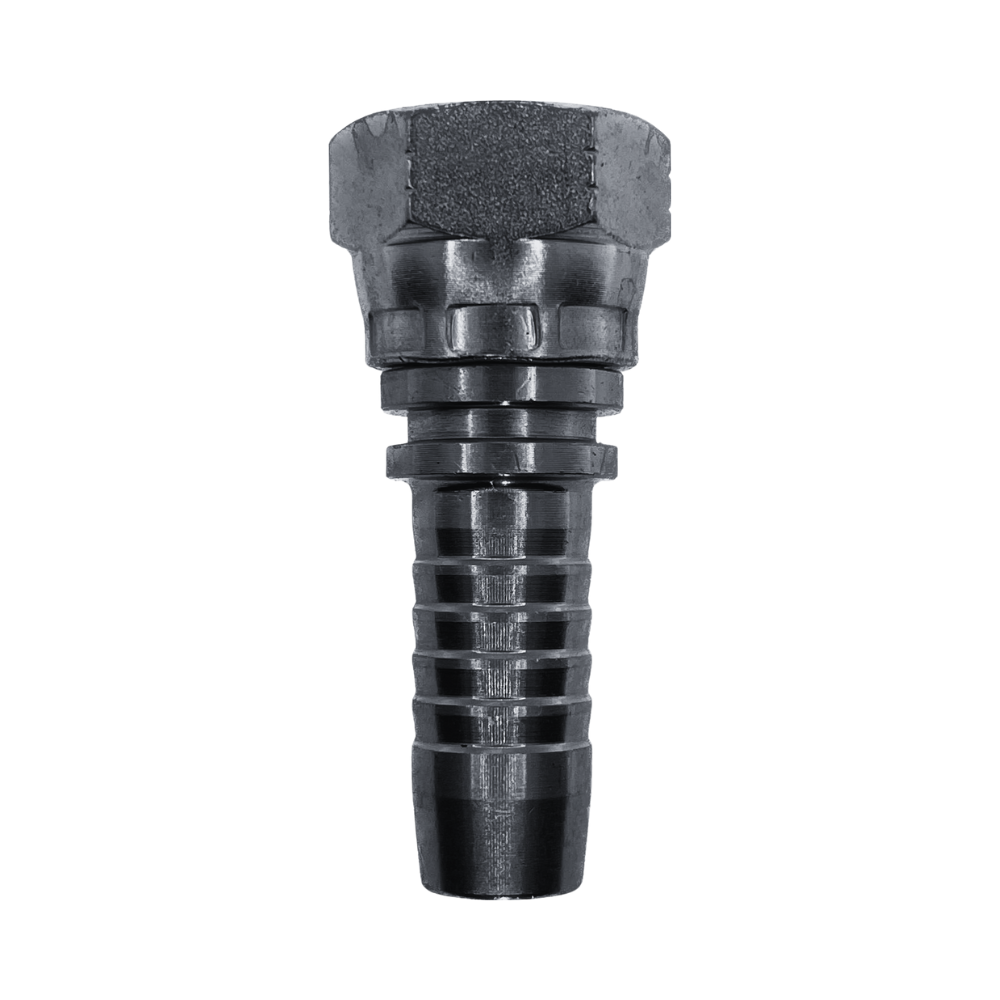

Hose Tail – JIC Swivel Female – Straight – Two-Piece Crimp-On

A JIC 37° swivel female on a straight crimp tail. The most-used hose end on the shelf, and the default for anything built to the American standard.

Mild steel body with a plated finish, manufactured to the standard listed above.

Two-piece crimp-on – how it goes together

This is the tail (stem) only. A two-piece assembly is the tail plus a separate ferrule crimped over the hose. Our FS‑R2 Multi‑Fit ferrule covers 1‑wire, 2‑wire, M3K and MXT braided hose, so one ferrule series does the lot and you stock half the parts.

🔗 Add the matching FS-R2 Multi-Fit ferrule

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Swivel Female – SAE J514 37° flare, seals on the 37° cone seat and swivels, so the hose is never wound up during assembly

How to Choose

• A straight tail is the default. Only go to a bend when the hose would otherwise leave the port at an angle it does not like.
• The swivel nut turns as you tighten, so the hose is never wound up during assembly.
• Seals metal to metal on the 37° cone. No tape, no sealant, no O-ring.

Technicians Advice

Wipe the cone before you connect it. A JIC pulled up with grit on the seat leaves a witness ring, and once that ring is there the joint seeps every time the machine warms up.

Where You’ll Find It

• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.

Cross-Reference

• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Downloads

📄 Crimp Dimensions Chart (PDF) 📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 45° Swept – same threads 🔗 90° Swept – same threads 🔗 90° Compact – same threads 🔗 90° Long Drop – same threads
