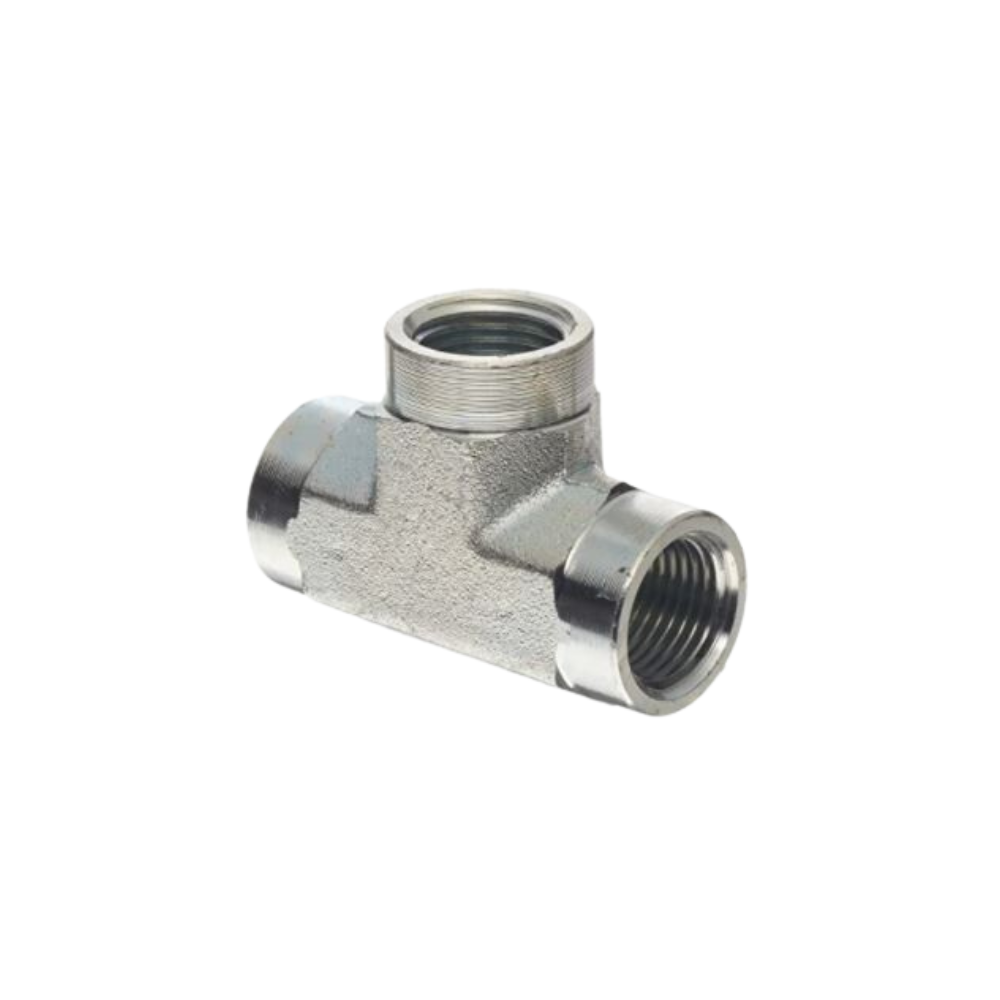

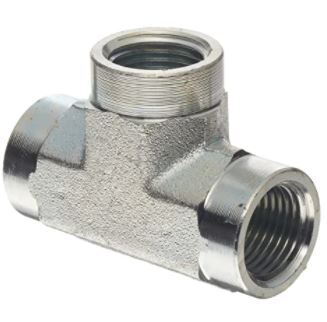

BSP Tapered Female Equal Socket Tee

Three BSP tapered female ports. The BSPT socket tee, used to join three male fittings on Australian and British-built gear.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Tapered Female – BSPT to ISO 7 / BS 21. It seals on the thread interference and must be taped or sealed.

How to Choose

• All three ports are the same size and thread, so it does not matter which way the tee goes in.
• Every joint seals on the thread of the male going in, so all three males need sealant.
• BSPT is 55°. A 60° NPT male will start and then tear the thread out of the socket.

Technicians Advice

The females are the parts that split when someone over-tightens a male going in. Hand tight plus two or three turns on each male and let the sealant close the joint rather than the torque.

Where You’ll Find It

• BSP Tapered Female – Female side of local pipework, adaptor blocks and gauge manifolds.

Cross-Reference

• BSP Tapered Female – BSPT to ISO 7 / BS 21, written Rc for female.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	S1	C	Material	Finish
BTF-BTF-BTF-020202	1/8" BSPT	1/8" BSPT	19mm	1/8" BSPT	Mild steel	Plated finish

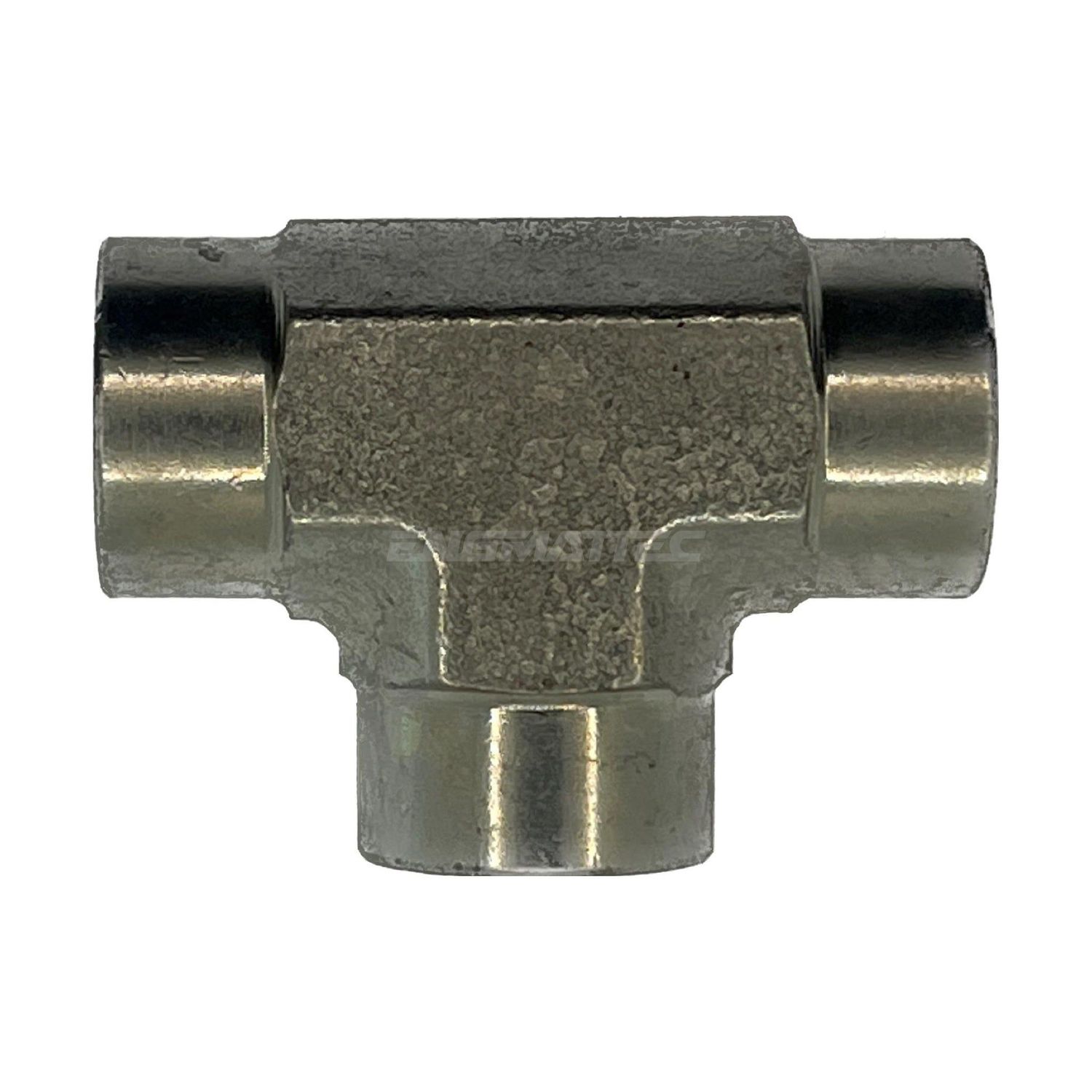

BTF-BTF-BTF-040404	1/4" BSPT	1/4" BSPT	19mm	1/4" BSPT	Mild steel	Plated finish
BTF-BTF-BTF-060606	3/8" BSPT	3/8" BSPT	24mm	3/8" BSPT	Mild steel	Plated finish
BTF-BTF-BTF-080808	1/2" BSPT	1/2" BSPT	27mm	1/2" BSPT	Mild steel	Plated finish
BTF-BTF-BTF-121212	3/4" BSPT	3/4" BSPT	33mm	3/4" BSPT	Mild steel	Plated finish
BTF-BTF-BTF-161616	1" BSPT	1" BSPT	41mm	1" BSPT	Mild steel	Plated finish
BTF-BTF-BTF-202020	1.1/4" BSPT	1.1/4" BSPT	50mm	1.1/4" BSPT	Mild steel	Plated finish
BTF-BTF-BTF-242424	1.1/2" BSPT	1.1/2" BSPT	60mm	1.1/2" BSPT	Mild steel	Plated finish
BTF-BTF-BTF-323232	2" BSPT	2" BSPT	70mm	2" BSPT	Mild steel	Plated finish

Key: S1 hex across flats 2, C across corners. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
