Lifting Capacity: from 4 to 24 Tons

Stroke or Lift height Max: from 790 mm to 2,977 mm

Available in multiple telescopic stages: in 4, 5, 6, and 8 stage Telescopic Cylinders

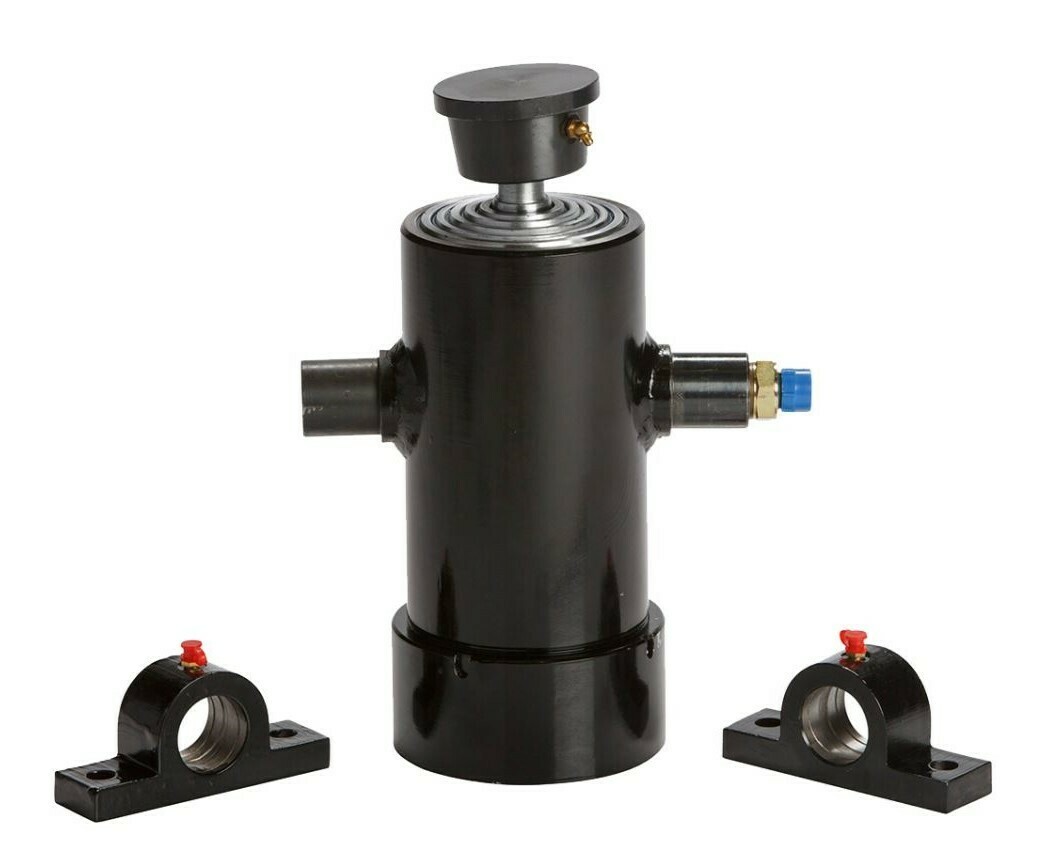

Design: Mid Mount Trunnion Style Hydraulic Telescopic Hoist Cylinder

Building a tipper trailer?

Replacing an old unit?
or Converting your old winch style tipper to a hydraulically operated unit?
This broad range of telescopic hoists are ideal for tippers and trailers and even utes thanks to its compact design lower mounting height design and straightforward installation.

Chart of tipping angles at which various materials will slide out of a tipped body

The Video Below: Shows you hose to calculate the tipper hoist extend length or lift stroke you will require to achieve a certain tipper angle to allow product to slide out.

Important points to Consider when Mounting Hoist Cylinders

To ensure the safe and efficient operation of your hydraulic tipper hoist, follow these critical mounting guidelines regarding the Center of Gravity (CG) of the loaded Trailer or Tipper body:

Mounting Point Positioning

• Forward-Facing Cylinders (X): The upper mounting point must be positioned forward of the body's center of gravity. This ensures the cylinder has the necessary leverage to initiate the lift.
• Rearward-Facing Cylinders (X1): If the cylinder is angled toward the rear, the mounting point must not exceed 100mm behind the center of gravity. Mounting it further back can cause excessive strain on the hinges and hydraulic system.

Installation Steps

1. Identify the Center of Gravity: Determine the balance point of your trailer body when fully loaded.
2. Measure Horizontal Distances (X / X1): Mark your mounting brackets according to the 100mm rule mentioned above.
3. Verify Vertical Clearance (Z / Z1): Ensure there is sufficient depth in the chassis for the hoist to retract fully without striking the ground or axle components.
4. Check Alignment: Ensure the trunnion mounts and top pin eye (30mm) are perfectly square to prevent side-loading, which can damage the internal seals of stages.

Note: Always refer to the specific stroke length (1200 - 1710 mm) of your model to ensure the tipping angle meets your material discharge requirements.

Made in Italy and available with full-service kits and plenty of Stock meaning, you can rest easy knowing you'll have reliable supply for your operation for many years.

Includes trunnion brackets, mounting flanges.

and Special Swivel pressure inlet "Pin" adaptor that has a 1/2" BSPP male thread

Click here to see our range of "Base Mount" Underbody Trunnion Cylinders

• Part Number	50 DEG PIVOT CENTER (mm)	Stages	Nominal. Cap. (Tons)	MAX. Cap. (Tons)	Stroke (mm)	Oil Capacity (litres)	Weight (Kg)	A (mm)	B (mm)	C (mm)	E ø (mm)	F ø (mm)	G (mm)	H (mm)	I ø (mm)
  DNB3047S	1785	4	7	11.5	1510	8.7	43	572	395	177	124	40	40	150	95
  DNB3048S	2025	4	7	11.5	1710	10	46	622	445	177	124	40	40	150	95
  DNB3049S	2380	4	7	11.5	1990	11.5	51	692	515	177	124	40	40	150	95
  DNB3052S	1490	5	9	15	1230	9	45	450	265	185	152	45	45	175	95
  DNB3053S	1785	5	9	15	1480	11	53	500	315	185	152	45	45	175	95
  DNB3055S	2550	5	9	15	2130	15.5	67	630	445	185	152	45	45	175	95
  DNB3063S	950	4	5	8.5	790	3.2	21	380	220	160	112	35	40	135	112
  DNB3065S	1260	4	5	8.5	1050	4.3	26	445	280	165	112	35	40	135	112
  DNB3092S	1190	5	5	8.5	1040	5	29	395	225	170	124	40	40	150	112
  DNB3093S	1425	5	5	8.5	1190	6	31	425	255	170	124	40	40	150	112
  DNB3094S	1785	5	5	8.5	1490	7.5	35	485	315	170	124	40	40	150	112
  DNB3095S	2550	5	5	8.5	2140	10.8	45	615	445	170	124	40	40	150	112
  DNB3096S	2960	5	5	8.5	2490	12.4	50.5	685	515	170	124	40	40	150	112
  DNB3356S	2975	5	9	15	2480	18	75	700	515	185	152	45	45	175	95
  DNB4058S	1890	6	14	24	1540	18.5	82	478	210	268	190	50	45	230	107
  DNB4060S	2675	6	14	24	2225	25.9	102	593	325	268	190	50	45	230	107
  DNB4062S	3570	6	14	24	2910	34.6	125	713	445	268	190	50	45	230	107
  DNB6002S	1010	6	4	6.5	840	3.6	23	315	155	160	124	40	40	150	112
  DNB6003S	1190	6	4	6.5	1005	4.5	26	355	185	170	124	40	40	150	112
  DNB6008S	1785	6	5	8.5	1480	8.9	46	440	265	175	152	45	45	175	112
  DNB6009S	2140	6	5	8.5	1780	11.2	51	490	315	175	152	45	45	175	112
  DNB6012S	3500	6	5	8.5	2977	19	71	690	515	175	152	45	45	175	112
  DNB8004S	2300	8	7	11.5	1940	19.5	78	462	192	270	190	50	45	230	112
