4 Stage Tipping Hoist 7 -12 tons, 1200 to 1710 mm strokes | Base mount Underbody Cylinder

Store/Cylinders and Rams for Hydraulics/12 and 24 Volt DC Hydraulic Tipper Cylinders and Kits

SKU 3545UCE105-4-1200

AU$981.75

On Sale

was ~~AU$1 276.00~~ Save 23%

Bottom / Base Mount-Trunnions

4 Stage 1200 mm Stroke 7 - 12 ton lift (Barrel Entry)

4 Stage 1290 mm Stroke 7 - 12 ton lift (Barrel Entry)

4 Stage 1300 mm Stroke 7 - 12 ton lift (Trunnion Entry)

4 Stage 1500 mm Stroke 7 - 12 ton lift (Trunnion Entry)

4 Stage 1500 mm Stroke 7 - 12 ton lift (Barrel Entry)

4 Stage 1710 mm Stroke 7 - 12 ton lift (Barrel Entry)

Add Foot Mount & Oil Inlet Nipple (For all parts # ending in "F" only)

Not Required

2 x Foot Mounts (45 mm Bore) (+AU$93.30)

Oil Inlet Nipple x 1 (+AU$121.60)

Compact 4-Stage Italian-Made Base mount Hoist | 7-12 Ton Capacity Underbody Telescopic Ram

In stock: 5 available

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

4 Stage Tipping Hoist 7 -12 tons, 1200 to 1710 mm strokes | Base mount Underbody Cylinder

Store/Cylinders and Rams for Hydraulics/12 and 24 Volt DC Hydraulic Tipper Cylinders and Kits

Product Details

Brand: UCE

Weight: 36.00 kg

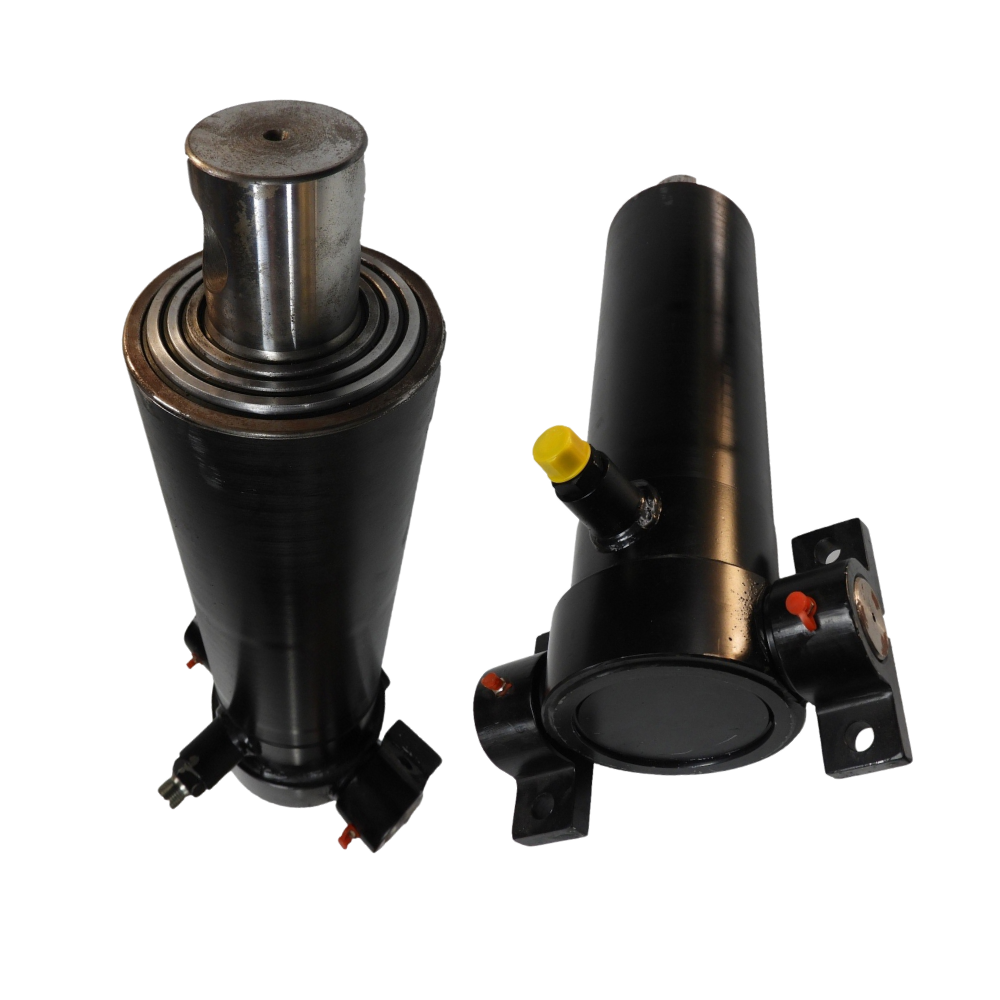

Four stage Hydraulic Telescopic Hoist for or small to medium sized tippers and Trailers, Base Mounted Trunnion Style Underbody Type.

This range of Hoists will filt between 7 to 12 tons and Come in 6 models with Lifting Strokes from 1200 to 1710 mm.

Please Note

Part Numbers Ending in "F " Have a "Trunnion Oil Entry" and do not Come with Foot Mounts or an Oil Inlet Pin.
Please order using the "Options" if required
Part Numbers Ending in "UCE" Have a "Barrel Oil Entry" and Come with Foot Mounts.

Specifications

Lifting Capacity: from 7 to 12 tons
Available Strokes: = 1200 mm, 1290 mm, 1510 mm, and 1710 mm
Trunnion Diameter = 45 mm
Top Pin Hole Diameter = 30mm
Type UCE Hoists are Supplied with a Foot Mounts and Oil Inlet Pin : 1/2" BSPP Male

Building a tipper trailer?

Replacing an old unit?
Converting your old winch style tipper to a hydraulically operated unit?

Chart of tipping angles at which various materials will slide out of a tipped body

Material	Angle (°)	Material	Angle (°)	Material	Angle (°)
ASHES, DRY	33	COAL, HARD	24	ORE, FRESH MINED	37
ASHES, MOIST	36	COAL, SOFT	30	RUBBLE	45
ASHES, WET	30	COKE	23	SAND, DRY	35
ASPHALT	45	CONCRETE	30	SAND, MOIST	40
CINDERS, DRY	33	EARTH, LOOSE	28	SAND & CRUSHED STONE	27
CINDERS, MOIST	34	EARTH, COMPACTED	50	STONE	30
CINDERS, WET	31	GARBAGE	30	STONE, BROKEN	27
CINDERS & CLAY	30	GRAVEL	40	STONE, CRUSHED	30
CLAY	45	ORE, DRY	30

This unit is ideal for tipper trailers and larger Utes thanks to its compact design and straightforward installation.

Our hydraulic tipper rams are Italian made with full-service kits available, in stock, in QLD or VIC you can rest easy knowing you'll have reliable operation for many years.

Large range of sizes available we have something suitable for your needs.

WE ALSO HAVE 'MID MOUNT' TRUNNION UNDER BODY HOIST,

Click here to see out other listings for Mid Mount Telescopic cylinders

Top Pin Eye Diameter" is 30 mm designed for a 30 mm Pin

Please remember all hoist with Part Numbers ending in "F" are not supplied with Foot mounts or Oil Inlet Pin and if required must be ordered though the options

Important points to Consider when Mounting Hoist Cylinders

To ensure the safe and efficient operation of your hydraulic tipper hoist, follow these critical mounting guidelines regarding the Center of Gravity (CG) of the loaded Trailer or Tipper body:

Mounting Point Positioning

Forward-Facing Cylinders ( $X$ ): The upper mounting point must be positioned forward of the body's center of gravity. This ensures the cylinder has the necessary leverage to initiate the lift.
Rearward-Facing Cylinders ( $X1$ ): If the cylinder is angled toward the rear, the mounting point must not exceed 100mm behind the center of gravity. Mounting it further back can cause excessive strain on the hinges and hydraulic system.

Installation Steps

Identify the Center of Gravity: Determine the balance point of your trailer body when fully loaded.
Measure Horizontal Distances ( $X / X1$ ): Mark your mounting brackets according to the 100mm rule mentioned above.
Verify Vertical Clearance ( $Z / Z1$ ): Ensure there is sufficient depth in the chassis for the hoist to retract fully without striking the ground or axle components.
Check Alignment: Ensure the trunnion mounts and top pin eye ( $30mm$ ) are perfectly square to prevent side-loading, which can damage the internal seals of stages.

Note: Always refer to the specific stroke length (1200 - 1710 mm) of your model to ensure the tipping angle meets your material discharge requirements.

WARNING: Hydraulic cylinders without a hose burst valve, pilot operated check valve or counter balance valve directly mounted to the cylinder will not meet Australian Standard AS1418.8, nor occupational health & safety rules.
