Multi Spiral 6000psi 1" 100R15-16 | Taipan 10m Coil
Store/High Pressure Hose for Hydraulics 1, 2, 4 or 6 wire/Multi Spiral hose 4000 to 6000 psi SAE 100 R12 R15 4SH 4SP
SKU H-R15-16-TP-5
AU$477.95
🔥 EOFY SALE!
Length
Please choose
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

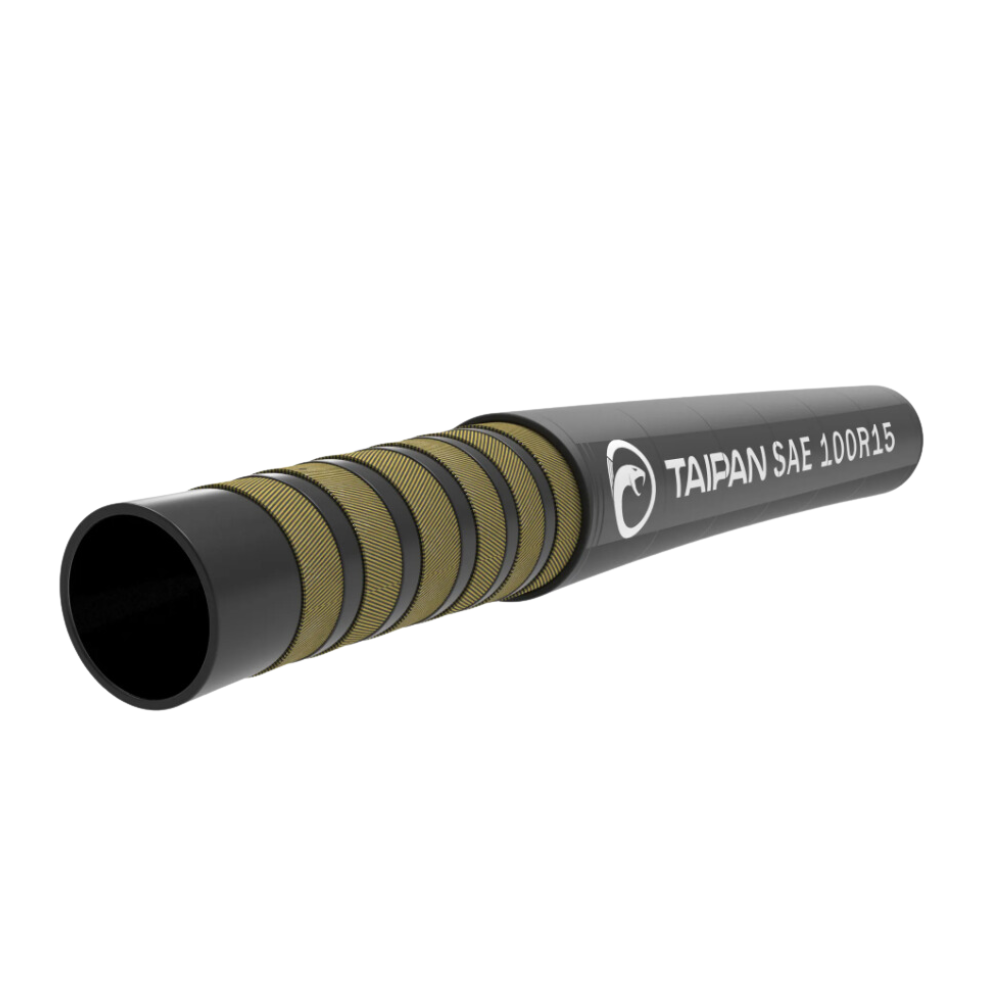

Multi Spiral 6000psi 1" 100R15-16 | Taipan 10m Coil
Store/High Pressure Hose for Hydraulics 1, 2, 4 or 6 wire/Multi Spiral hose 4000 to 6000 psi SAE 100 R12 R15 4SH 4SP
Product Details
Weight: 10.00 kg
10 Meter Coil of 4SH / 100R15 1" Multi Spiral FRAS
Specifications: Non skive, Exceeds SAE J517 100R15.
Application: Very high pressure hose, with high performance and half bend radius of the SAE 100R15 standard. Higher flexibility compared with conventional spiral hoses. Tested to over 1,000,000 impulse cycles at 133% of working pressure from -06 to -12 and 120% working pressure from -16 to -32, more than twice that required by SAEJ517, EN 856 or ISO 3862-1. Suitable for the passage of mineral and vegetable oils, water-based solutions, water, air and inert gases.
Temperature Range: -40˚C to + 121˚C (intermittent to 125˚C)
Ultra High Pressure Matched Crimp On Fittings Compatible and Compliant to MDG41 are also available separate or as a complete pressure tested Hose assembly. (Tested to 12000 PSI)
Hose Ends Available
- Flange Code 62 in Straight, 45° and 90° elbows
- JIC Female in Straight, 45° and 90° elbows
- BSPP Female in Straight, 45° and 90° elbows
- ORFS Female in Straight, 45° and 90° elbows
Couplings: N series non skive, L series 3/8” - 5/8”
Note: * = up to 1” four spirals, 1 1/4” - 1 1/2” six spirals.
