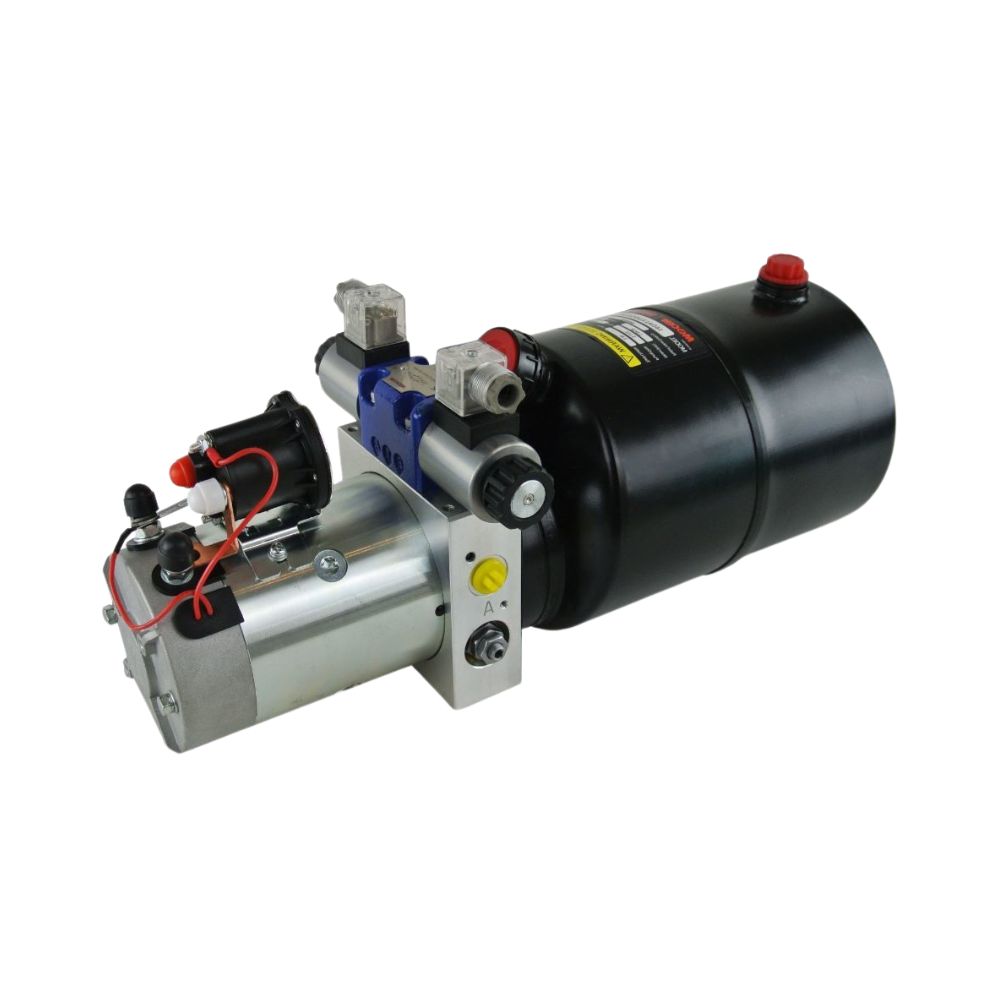

Mocen 12 Volt DC 9 LPM Hydraulic Power Pack – 2.5 kW, 3.2 cc, up to 3,000 PSI

The step up from the 5 LPM packs: a 3.2 cc pump moving 9 litres a minute for bigger rams and faster cycle times – crane trucks, larger tippers, tailgate loaders and car carriers. 2.5 kW motor on 12 volt, 10 litre steel tank, P and T, single acting or double acting. Every configuration below is a real part number in stock.

Ways to buy this power pack:

• Off the shelf – three configurations below.
• Running 24 volt? See the 24 volt 9 LPM pack.
• Only need 5 LPM? The 12 volt and 24 volt 5 LPM packs carry our sharpest pricing.
• Multi-circuit crane truck builds (2x, 3x and 4x double acting) – see the crane truck power packs or call us.

Pick your function

What is in the box

• One assembled power unit: 2.5 kW 12 V DC motor (425A-2) with start solenoid, 3.2 cc pump, 10 L steel tank and the solenoid valve for the function chosen. Pendant controllers are optional – add below.

Specifications

How to choose

• 9 LPM roughly halves cylinder times vs a 5 LPM pack – pick it when a 2.5"+ bore ram feels lazy.
• Gravity loads = Single Acting; powered both ways = Double Acting; running your own valve = P and T.
• Bigger tank? Larger tanks are on the oil tanks listing below.

Technicians Advice

The 2.5 kW motor pulls serious amps at full pressure – this is the pack where undersized battery cable really shows. Run heavy cable, keep it short, and fit the 500 A start solenoid if the pack does repeated long lifts. These are S3 intermittent duty packs: work them a minute at a time and they last a decade. Fill the tank with the rams RETRACTED, cycle twice, top up. Leave the factory relief setting alone unless you have a gauge on the port, and fit a magnetic drain plug on day one – there is no return filter on these.

Official Datasheets

📄 9 LPM Power Unit Spec (PDF)

Watch: Everything about 12 and 24 Volt DC Hydraulic Power Units

Watch: How to Wire Up a 12 or 24 Volt DC Hydraulic Power Pack

Complete your setup

KCB Pendant ControllersPendant HolsterMotor Dust CoverOil Tanks 1-400 LMagnetic Drain PlugsSpare DC MotorsStart Solenoids

Buying in bulk or fitting out a fleet? Call us for trade pricing.

Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au – real technicians, real answers.
