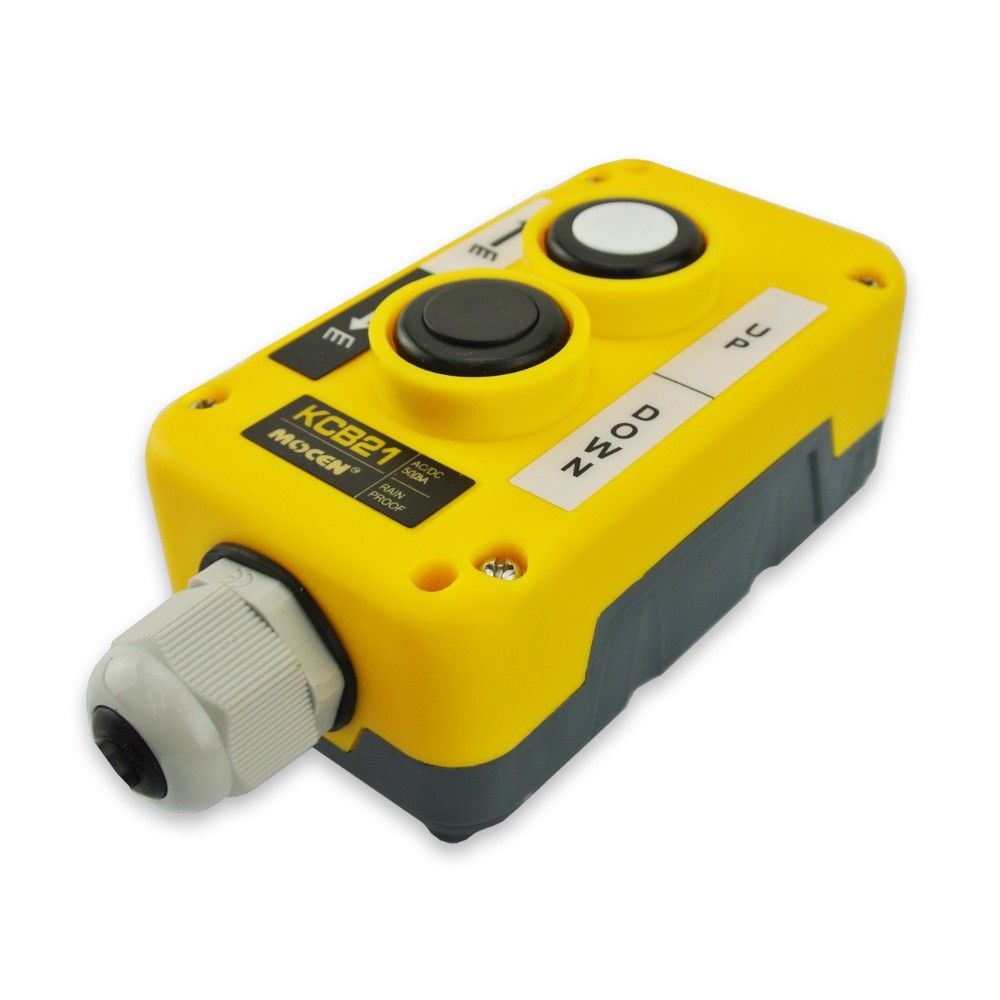

Mocen KCB Pendant Controllers – 2 to 6 Button, Single and Double Acting, E-Stop Options

The KCB is the standard hand pendant on 12 and 24 volt DC hydraulic power packs Australia-wide – tippers, crane trucks, tail lifts, hoists and winch packs. IP55 rated, 5–48 volt DC switching, momentary buttons, rubber-booted and built to be dropped. Every model is here: 2, 4 and 6 button, E-stop versions, 10 metre cables, quick-connect plug versions and pre-wired DIN plug versions that plug straight onto your solenoid valve coils.

Ways to buy your pendant:

• Off the shelf – every variation below with its own part number.
• 240 V AC or machine control? See the CHARLIE and ALPHA pendant stations.
• ETB powerpack owner? The plug-and-play ETB pendants are on the ETB controllers listing.
• The clip-on pendant holster is on the KCB holster listing.
• Custom cable lengths and functions – call us, we wire to order.

Pick your pendant

What is in the box

• One pendant controller with moulded strain relief and cable as listed. DIN versions ship with the DIN 43650A plugs fitted and wired.

Specifications

How to choose

• Count your functions: one single-acting circuit (tipper up/down) = 2 button S/A. One double-acting ram = 2 button D/A. Two D/A circuits = 4 button. Three = 6 button.
• Take the DIN-wired version if your power pack has DIN plugs on the solenoid coils – it is literally plug and play.
• Working under a tipping body or on a vehicle hoist? Spend the extra on the E-stop model.
• KCB pendants are DC only – for 240 V AC control go to the CHARLIE or ALPHA stations.

Technicians Advice

Ninety percent of dead pendants we see died at the cable entry, not the switch – the pendant gets left dangling off the truck body and the copper fatigues just inside the gland. Clip a holster somewhere sane and the pendant will outlast the truck. When wiring bare-wire versions, the common feeds the buttons and each button output drives one coil – keep the run under 10 m on 12 volt systems or voltage drop starts dropping out solenoids under load; go 24 volt or relay-switch anything longer. And test with the E-stop RELEASED – a latched E-stop looks exactly like a broken pendant.

Official Datasheets

📄 KCB Pendant Controllers (PDF)📄 KCB Wiring Diagrams (PDF)📄 KCB Plug and Play (PDF)

Watch: Quick Wire Up of a 12 Volt DC Power Pack
