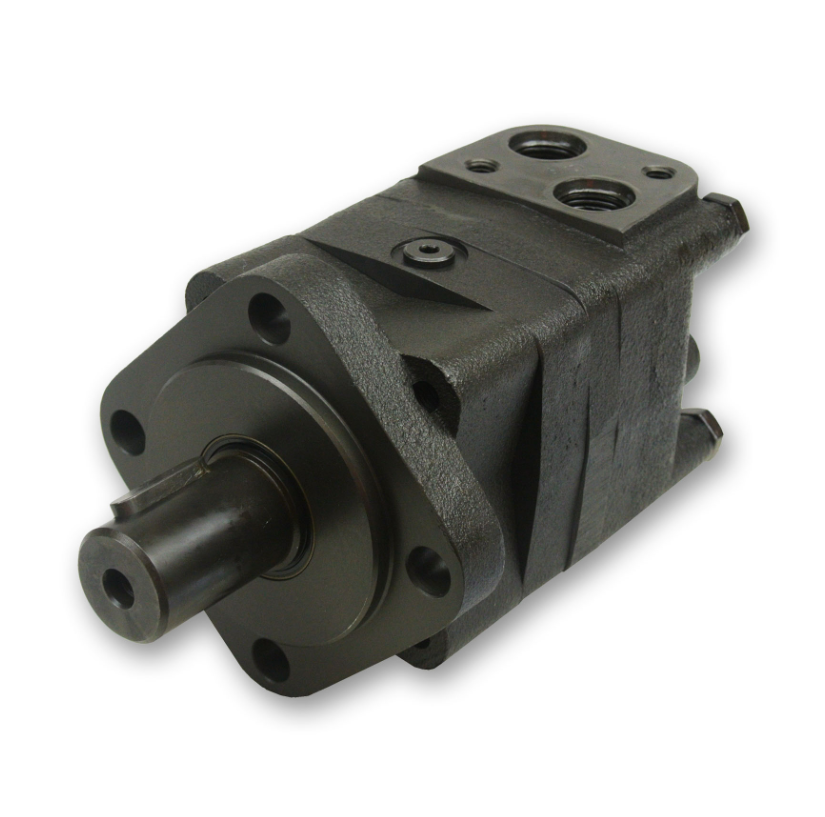

The M+S MLHS and MLHSY Series is a disc valve orbital motor - the highest-torque, highest-pressure class of orbital motor M+S build. Instead of the spool valve used in a Gerotor or Geroler motor, a hardened rotating disc valve is held against its seat by hydraulic pressure. The seat is pressure-balanced and self-compensating, so it keeps sealing as it wears. That is what lets these motors run higher inlet pressures for longer, hold their volumetric efficiency for years and deliver full torque down to a crawl.

MLHS is the US-standard build of the same disc valve frame: SAE A 4-bolt mount, 1-1/4 inch keyed shaft, and 7/8 inch UNF O-ring boss working ports with a 7/16 inch UNF case drain. That is the interchange most Australian workshops need when the machine came out of North America - Eaton Char-Lynn 2000 Series, Parker TG, Ross ME, White RE (500) and the US Danfoss OMS all live on this face. Sizes 200 to 475 cm3/rev are supplied as MLHSY, the same frame with the higher-displacement gear set.

230 bar inlet, up to 865 Nm continuous, 11 sizes from 80.5 to 564.9 cm3/rev.

Applications

• Drive replacements on US and European plant with UNO ports
• Winch, hoist and capstan drives
• Slew and rotation drives on grabs and material handlers
• Auger and drill head drives on piling and post-driving rigs
• Conveyor and feeder drives on crushing and screening plant

Cross-Reference - Compatible Equivalents

Verified against the M+S factory motor index and cross-reference chart. Type any competitor part code into the cross-reference tool on our Hydraulic Motors category page and it will identify your equivalent instantly.

Standard Supply Configuration

• SAE A-4 mount, four holes
• 1-1/4 inch straight keyed output shaft (C)
• 2 x 7/8-14 UNF O-ring boss working ports, side entry (port code 4)
• 7/16-20 UNF case drain
• High pressure shaft seal (U) - 230 bar inlet rating
• Manganese phosphate finish as standard from the factory

How to Order - Part Number Breakdown (Nomenclature)

Read left to right. Example: MLHS 160 C4U

★ = the configuration we hold and sell from the dropdown above. Factory note: the MLHSE wheel-mount version is not available with the D, P, SW, SA or S shafts. Codes outside the dropdown are factory builds - use the quote form and we will price them for you.

General Performance Data

Download the M+S MLHS and MLHSY Series Factory Datasheet (PDF)

Technician's Advice

When do you need a disc valve motor? When the job is heavy and continuous - conveyor and auger drives, agitators, winches, drum and mixer drives, road-sweeper brushes, feed mixers, forestry heads, drilling rotation. If the motor spends its day near the pressure limit or turning slowly under full load, the disc valve frame is the one that survives. For light intermittent duty a Gerotor or Geroler motor costs less and does the job.

Case drain. Always run the case drain back to tank on its own line, with the lowest practical back pressure and no shared return. A blocked, teed or missing drain line is the number one killer of shaft seals on every orbital motor ever made - and on a high-pressure disc valve unit it will blow a seal in minutes, not months.

Running in. Fill the case with clean fluid before you start it. Run 5 to 10 minutes at moderate load and moderate speed before you go to full pressure. Never crack a motor to full relief on the first turn.

Shaft loads. These frames run tapered roller bearings, so they will take genuine radial load from a sprocket, pulley or chain drive - but check the permitted overhung load and its distance from the flange face in the datasheet before you hang a drive off it. Overhung load is the second most common failure we strip down.

Filtration and fluid. Keep the system at ISO 4406 20/18/15 or cleaner and the fluid between 20 and 60 cSt at running temperature. Disc valve motors are more tolerant than a piston motor, but grit still laps the valve face flat.

Straight-thread ports, not tapered. The 7/8-14 UNF ports on this motor are O-ring boss (ORB) - they seal on the O-ring against the port face, not on the thread. Do not put thread tape or sealant on them and do not overtighten trying to stop a weep; back it out, check the O-ring and the seat, and re-seat it.

MLHS or MS? Same gear set and the same performance. Choose MLHS for US-pattern machines and UNF ports, MS for the European BSPP build.

Seal kits: MLHS-SKU, MLHSY-SKU - see the seal kit listing below.
