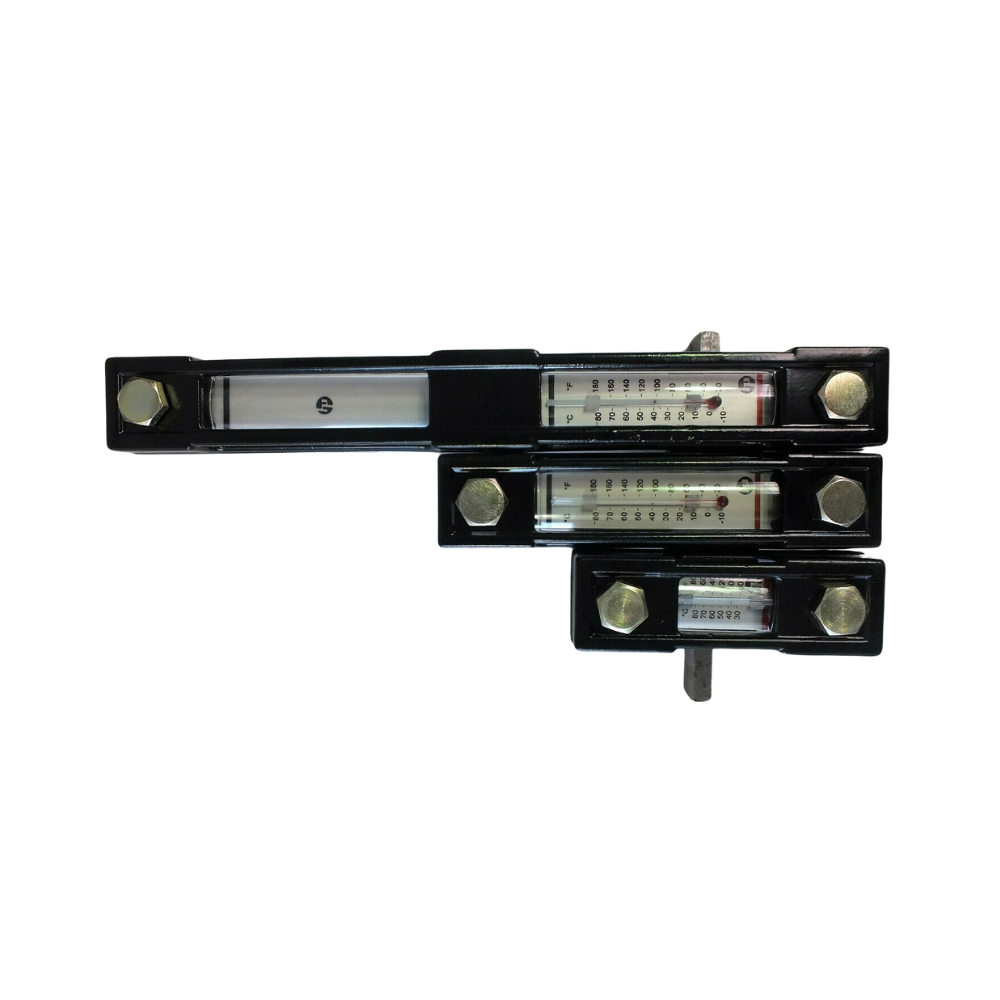

Oil Level Temperature gauges
Level Gauges provide Visual fluid level indication in hydraulic reservoirs and tanks at a glance without having to dip the tank.
It is also fitted with a Red capillary tube thermometer with a dual Celsius / Fahrenheit scale, Temperature display range is up to 80 °C / 180 °F
Suitable for Pressurised tanks up to a maximum tank pressure not exceeding 2 bar / 29 PSI. These come with steel 'bolts' that can be welded to your tank.
Dimensions
76 mm 3" Hole Centres LGT1 M10 BOLTS
127 mm 5" Hole Centres LGT2 M12 BOLTS
254mm 10" Hole Centres LGT3 M12 BOLTS
Maximum tank wall thickness = 8 mm
Width = 31 mm
Height from tank wall when installed = 27mm
Media Compatibility
Suitable for use with Mineral and Petroleum based hydraulic fluids.
Materials of Construction
Housing made of black powder coated Steel.
Sight tubes and plugs made of Polyamide (PA)
Sealing rings made of NBR (Buna-N®)
Scale plate made of PVC
Technical Data
IP 65 protection rating: Dust tight and protected
against water jets.
Operating temperature range:
-30 °C ... +80 °C / -22 °F ... +176 °F
