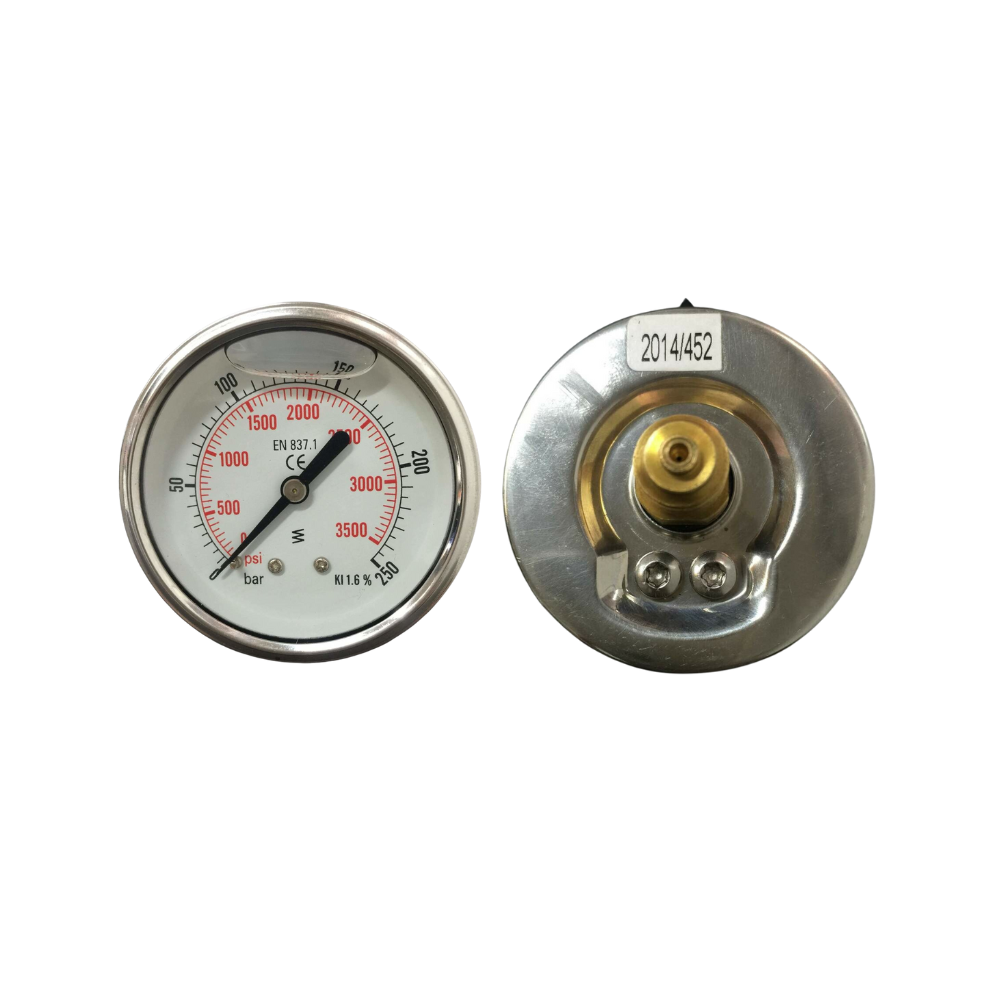

Stainless Steel Liquid
Filled Pressure Gauge 63 mm face, Design is a liquid-filled Bourdon tube pressure gauge,

the case is made from stainless steel, with wetted parts from copper alloy.

Liquid filled, so pressure element & movement are efficiently damped.

Particularly suited to measuring pressure with high dynamic loads, fast cycles
& vibrations.

High accuracy 63 mm Rear Entry Liquid Filled Pressure Gauges.

The gauge has a 1/4"BSPP stem (standard for most gauges).

Please message us with the pressure range required if it is not listed above.

We also have vacuum and up to 15,000 psi

0 - 25 bar = 360 psi

0 - 60 bar = 870 psi

0 - 100 bar = 1450 psi

0 - 160 bar = 2320 psi

0 -250 bar = 3600 psi

0 - 400 bar = 5800 psi

0 - 700 bar = 10,150 psi
