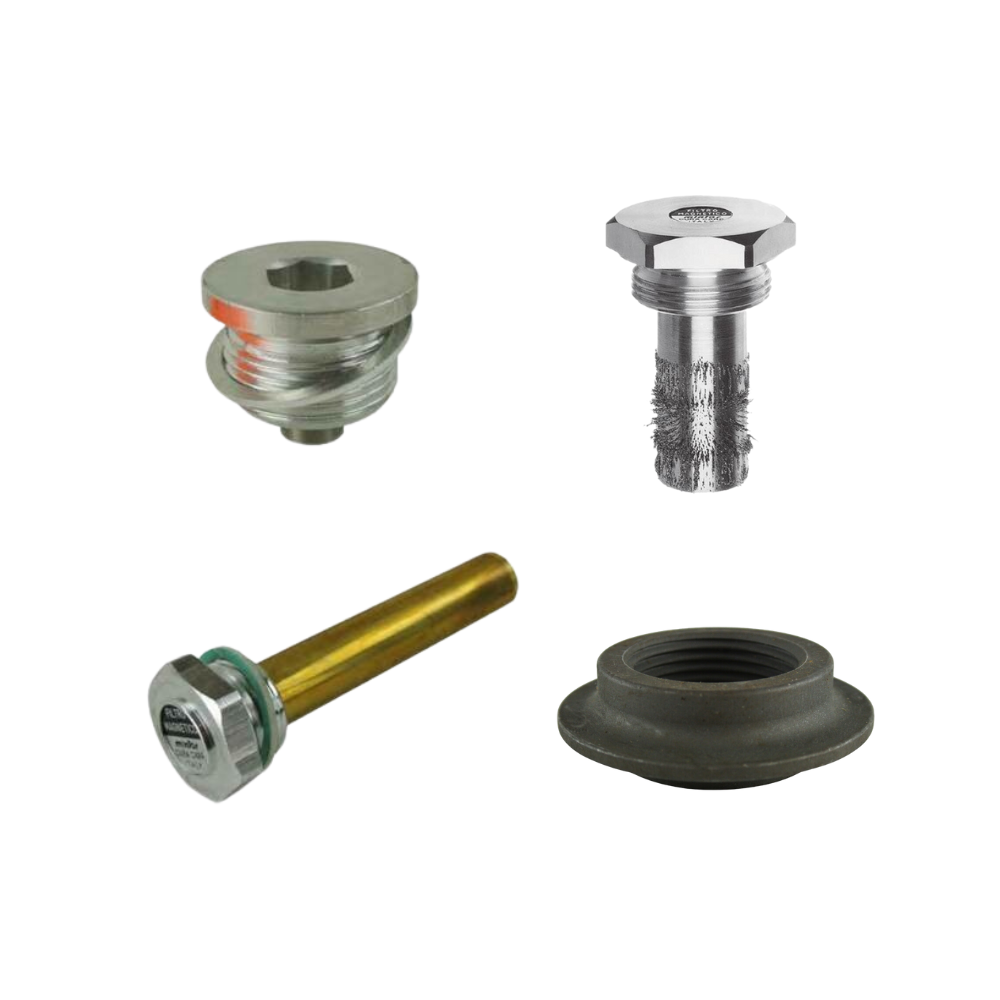

Magnetic hydraulic tank plugs and Magnetic Filter Rods are the extra protection you need to attract and trap ferrous particles that are suspended in hydraulic oil and fuels in Tanks and Sumps.

Machined from High Strength Aluminium, Magnetic Drain Plugs have a small magnet fitted to them.

Specifications of Magnetic Drain Plug

A strong permanent high-temperature "Alnico" magnetic insert attracts and
holds ferrous particles suspended or circulating in the oil.

Also available are Steel Weld on Flanges to suit Magnetic Plugs see options to the right

Magnetic Filter Rods have a longer magnetised rod with more surface area to attract and trap even more particles in a shorter time or in larger tanks with more oil or fuel in them.

Recommended for

Coolants in grinding machines,

Machined with BSPP threads the plugs are magnetized to allow the collection of any metal fragments in your oil and cooling system.

Also available are Steel Weld Flanges to suit Magnetic Plugs please see Options to the right.

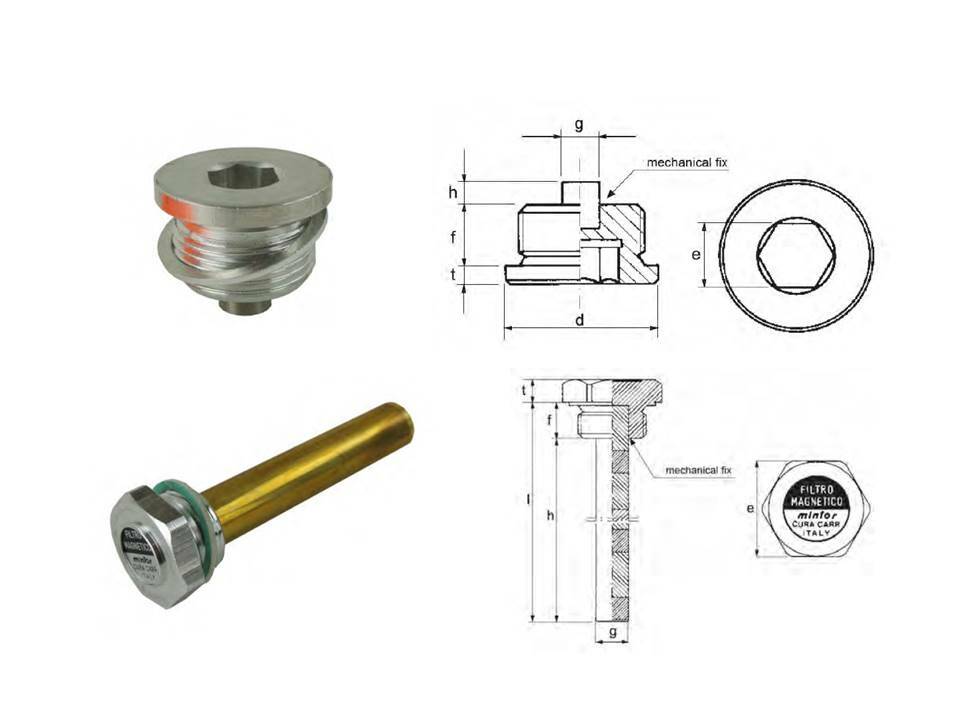

There are two styles, a Magnetic Plug or A Magnetic Filter Rod, please refer below for dimensions as per

technical Drawings and Charts.
