Tilt Tray Electro Hydraulic Remote Control Valve 5 Functions with 3 functions Radio Remote Control flows 80 LPM

Name: Tilt Tray Radio Controlled Hydraulic Valve 5 Spool 3 x Remote
Brand: hydraulic.online
SKU: MBV-80-53-E-24
Price: 2434.85 AUD
Availability: InStock

Store/Hydraulic Valves/Monoblock Valves/Remote Control Ready Valves and Complete Kits

SKU MBV-80-53-E-24

AU$2,434.85

Coil Voltage

Please choose

Five functions, three on the remote - electro-hydraulic tilt tray valve with manual override

In stock: 14 available

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Tilt Tray Electro Hydraulic Remote Control Valve 5 Functions with 3 functions Radio Remote Control flows 80 LPM

Store/Hydraulic Valves/Monoblock Valves/Remote Control Ready Valves and Complete Kits

Product Details

Brand: hydraulic.online

Weight: 28.00 kg

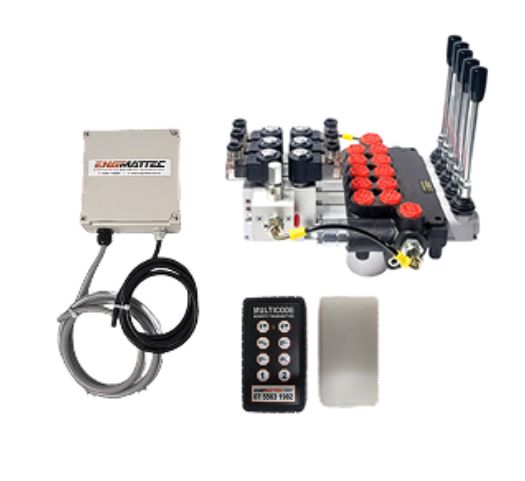

Tilt Tray Electro Hydraulic Remote Control Valve 5 Functions with the option of 3 functions Radio Remote Control flows 80 LPM includes 8 Button Wireless Remote Transmitter and Receiver.

Tilt Tray or Tow Truck Ready Electro-Hydraulic 5 Spool Monoblock Valve and 3 x Electro-Hydraulic controls with 80L/min Flow and 250 Bar Rating. Designed for high performance hydraulic control in transport, recovery, and industrial applications.

This listing is for the full kit Electro hydraulic valve and the radio remote transmitter and receiver

or
the remote Kit only can purchased separately by Clicking below:
Remote Kit Listing

Features:

• 5 Spool Monoblock Valve (5 Levers / 10 Functions)

• 3 Electro-Hydraulic Solenoids (2 Actuators Per Spool for 3 Spools)

• Allows Control of 3 Functions via Electrical Input (e.g. Remote or Switch Panel)

• Manual Lever Control on All Functions with Override

• Durable Steel Construction with Case Hardened Steel Spools

• Cylinder Spools for Load Holding When Controls Are Released

• Spring Return to Centre for Safe and Precise Operation

• Adjustable Built-In Relief Valve (Factory Set at 175 Bar / 2500 PSI)

Common Applications:

• Winch In / Out

• Tray Slide In / Out

• Tray Up / Down

• Tilt Tray Trucks and Recovery Vehicles

• Crane Trucks, Skip Bin Trucks

• Farming, Excavation and Drilling Equipment

• Any System Requiring Control of Multiple Hydraulic Cylinders or Motors

Specifications:

• Construction: Monoblock Steel

• Spool Material: Case Hardened Steel

• O-Rings: NBR (Buna-N®)

• Number of Spools: 5

• Electro-Hydraulic Actuators: 6 (Across 3 Spools)

• Spool Type: Cylinder

• Spool Movement: Lever Action, Spring Return to Centre

• Max Flow Rate: 80 Litres/Minute (20 GPM)

• Max Working Pressure: 250 Bar (3,675 PSI)

Port Sizes:

• Pressure Port: 1/2" BSPP

• Cylinder Ports: 1/2" BSPP

• Tank Port: 3/4" BSPP

• Power Beyond Port: 3/4" BSPP

Additional Information:

• Operating Temperature: -20°C to +80°C

• Dimensions: 380 x 360 x 160 mm (300 mm Height with Levers Installed)

• Weight: 17 kg

• Suitable Replacement for Most Tilt Tray Spool Valves

• Can Reuse Existing Hoses or Adapt with Available Fittings

• Requires Clean, Filtered Hydraulic Oil for Operation

• Compatible with 24V DC Electrical Systems

• Wiring Diagram Typically Supplied for Installation

• Suitable for DIY Installation with Basic Mechanical and Electrical Knowledge

Hydraulic.Online supplies a full range of compatible fittings, adapters, hoses and accessories to support complete system setups.

For custom configurations, technical support or bulk enquiries contact 07 5563 1982 or sales@mhfgc.com.au.

MM 09/06/2026 $ abc

Technicians Advice

Electro-hydraulic banks with radio remotes save a second operator on tilt tray work. Keep the receiver away from the exhaust side and route the loom clear of the tray rails. Call us with your truck details and we will spec the functions and remote channels.
