MADE IN ITALY – genuine Hydronit COMPACT series · P and T ported (run your own valve)

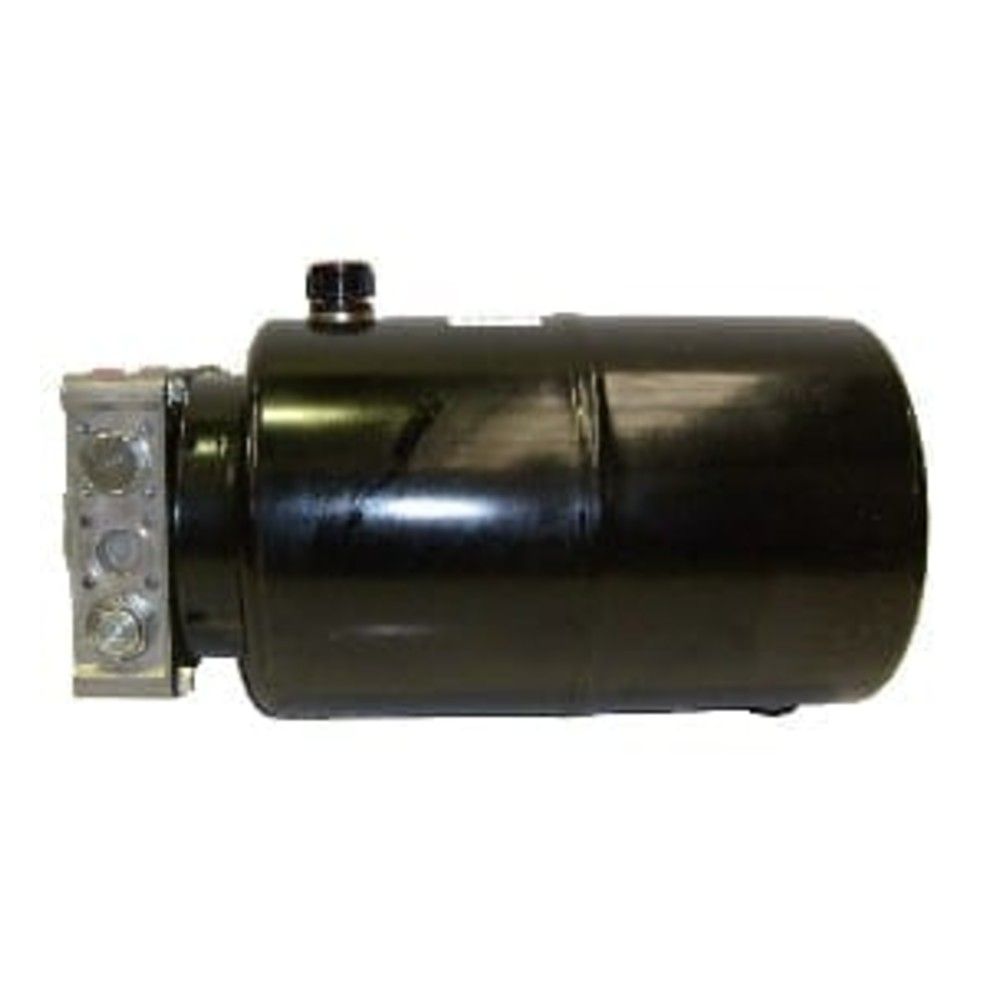

Hydronit Compact Hydraulic Power Unit – No Electric Motor (1.1 to 8.0 cc)

The compact power unit supplied WITHOUT the electric motor – pump, manifold, relief valve and steel tank as one assembly, ready for you to fit your own motor (AC, DC or air). Ideal when you have a motor to suit, are matching an existing install, or are building a special. Pick your pump size and tank below – every combination is a real part number.

Ways to buy this power unit:

• Off the shelf – choose the pump size (cc) and tank in the dropdown below.
• Fit your own motor – standard compact coupling and face; confirm your motor shaft before ordering.
• Need a complete unit with the motor fitted? See our 12 V DC and 24 V DC, 240 V AC and 415 V AC compact power units.
• Need a motor, pump or bigger tank – links below, or call us to build to order.

Pick your power unit

What is in the box

• One pump-and-tank assembly: gear pump, manifold block, factory-set relief valve and steel tank as selected. NO electric motor – you supply and fit your own. Motors, pumps and valves are available separately – see below.

Specifications

How to choose

• Pump size (cc) sets the flow for a given motor speed – bigger cc = more L/min, but needs more motor power.
• Match the motor to the pump and pressure: undersize it and the pump stalls under load.
• Tank size: add up your cylinder oil volume and leave 20-30%% air space.

Technicians Advice

This is the pump, manifold and tank assembly WITHOUT the electric motor – you fit your own. Match the motor shaft, flange and rotation to the pump: these use a standard compact coupling, so confirm your motor’s shaft and face before ordering. Size the motor to the pump and pressure – a bigger pump on an undersized motor stalls under load.

Prime the pump before first run, fill with the ram retracted, cycle twice and top up. Leave the relief factory-set unless you have a gauge on the port, and fit a magnetic drain plug from day one – there is no return filter.

Why the Italian build matters

These are genuine Hydronit COMPACT (PPC) power units, designed and built in Italy – not a budget far-east copy. Italian-made castings, motors and pumps mean tighter tolerances, cleaner machining and a unit that holds pressure and lasts. It is the same platform sold across Europe for OEM mobile and industrial plant, and we bring it in at sharp Australian pricing.

Official Datasheets

The PPC compact range is the Hydronit COMPACT series, made in Italy. Full technical data – motor ratings, pump displacements, flow and pressure curves, tank and port dimensions – is in the manufacturer catalogue:

📄 Hydronit COMPACT Series Catalogue (PDF)

Watch: Everything about Hydraulic Power Units

Complete your setup

DC MotorsStart SolenoidsGear PumpsOil Tanks 1-400 LMagnetic Drain Plugs

Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au – real technicians, real answers.
