PLEASE NOTE: This unit will be supplied with a 7.5l tank fitted and the 'Stubby' tank packed separately

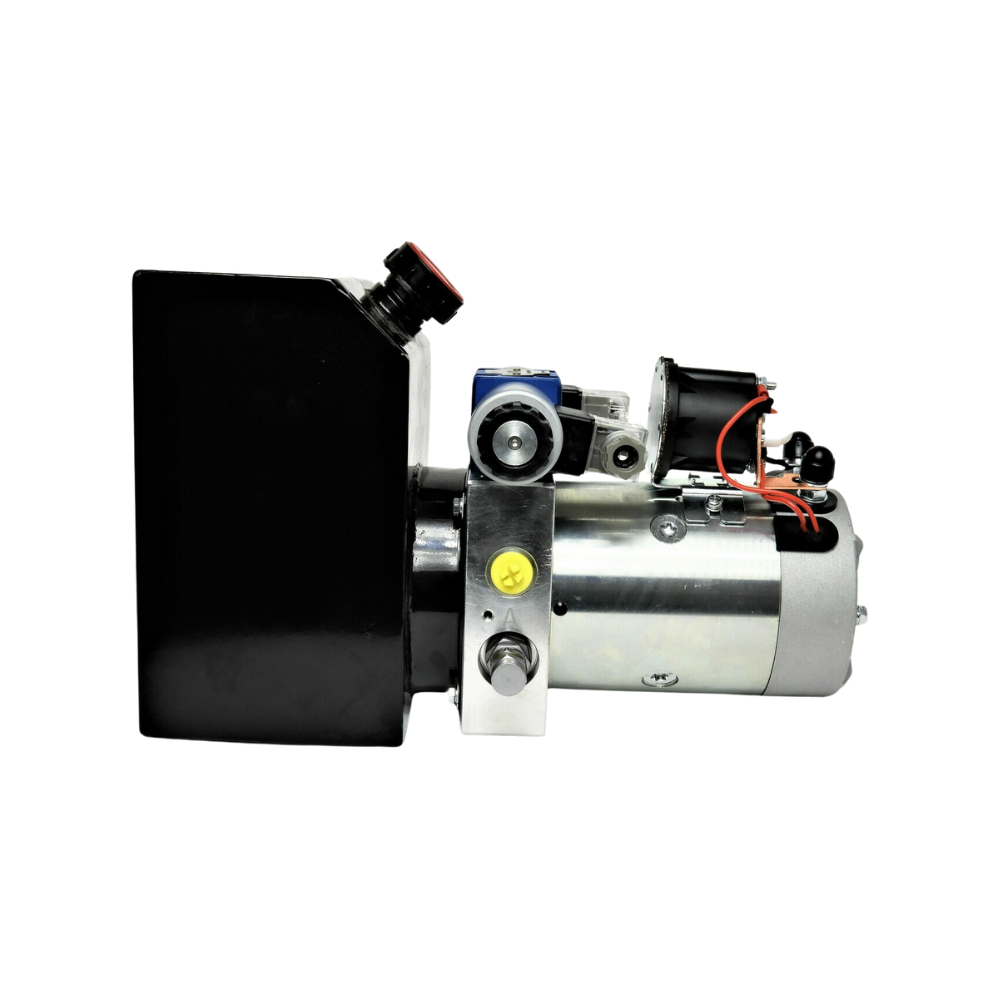

Powered by 12 or 24 Volt DC this extra compact Hydraulic Power Pack or HPU comprises a Motor, Pump, Tank & optional Solenoid valves. It is designed to supply an oil flow of 5 Lt/Min at a Pressure of 2500 PSI.

Special short-length unit 2.5 liter tank. Dimensions Length = 36cm x Width = 23cm x Height = 21cm
This is available in;
1. P & T. Pressure & Tank port model. Connect a pressure line to the hydraulic unit's outlet, which in turn will connect to your own manual flow control valve.
The other port is a return to tank port from your valve. Please note, with this option, you will need to switch on the power pack to operate.
Some control valves have microswitches that turn the power pack on automatically.

We can supply our valves with micro switches. No pendant is supplied or required.

2. S/A single acting. Comes with a pendant controller, Powerpack only drives load up. gravity brings load down

3. D/A Double acting. comes with pendant control, and drives load both up & down. (as per photos)

The Video Below explains some of the great features that these quality units come standard with

The video below shows you how to correctly wire up a 12 or 24 Volt DC Electric
Powered Hydraulic Power Unit.

e.g. Mini Cranes, Tail Gate Loaders, Ramps on trailers and low loaders Camper van or camper trailer leveling or any other hydraulic circuit requiring intermittent use, low flow, and high-pressure hydraulic oil.

This Unit is capable of generating up to 200 Bar (3000 PSI) Pressure at a reduced flow rate.

Pressure relief is set at 2500 psi as standard

Specifications

• Power Rating 12 Volt DC, 1.6 KW, or 24 Volts DC, 2.2 KW
• Flow 5.0 liters per Minute at 170 Bar (2500 PSI)
• Max Pressure up to 200 BAR (3000 PSI at reduced flow)
• Pressure relief valve Factory set at 170 BAR (2500 PSI)
• Discharge Ports 9/16 UNO
• 2.5 Liter capacity Oil tank with combination filler breather level plug and separate plug.
• Can be mounted Horizontally as well as Vertically (Motor Up only)# You MUST contact us so we can change the oil pick up!!!!
• Safety thermistors are installed in motor windings to prevent overheating.
• Duty Cycle = 25% at Low Duty, low load and pressure (600 PSI) = 100Amps Draw,
• Allowable run time 12.5 minutes and then allowed to totally cool down.
• or 150 seconds ON - 400 seconds OFF.
• Duty Cycle = 19% at Medium duty medium load and pressure (1600 PSI) = 160 Amps Draw
• Allowable run time of 7.5 minutes and then allowed to totally cool down.
• or 150 seconds ON - 640 seconds OFF.
• Duty Cycle = 7% 300 Amps High Duty High Load and pressure (3000 PSI) = 300 Amps Draw
• Allowable run time 1.7 Minutes and then allowed to totally cool down
• or 150 seconds ON and 2000 seconds OFF.
• Dimensions Length = 36cm x Width = 23cm x Height = 21cm
• Weight 16 KG
