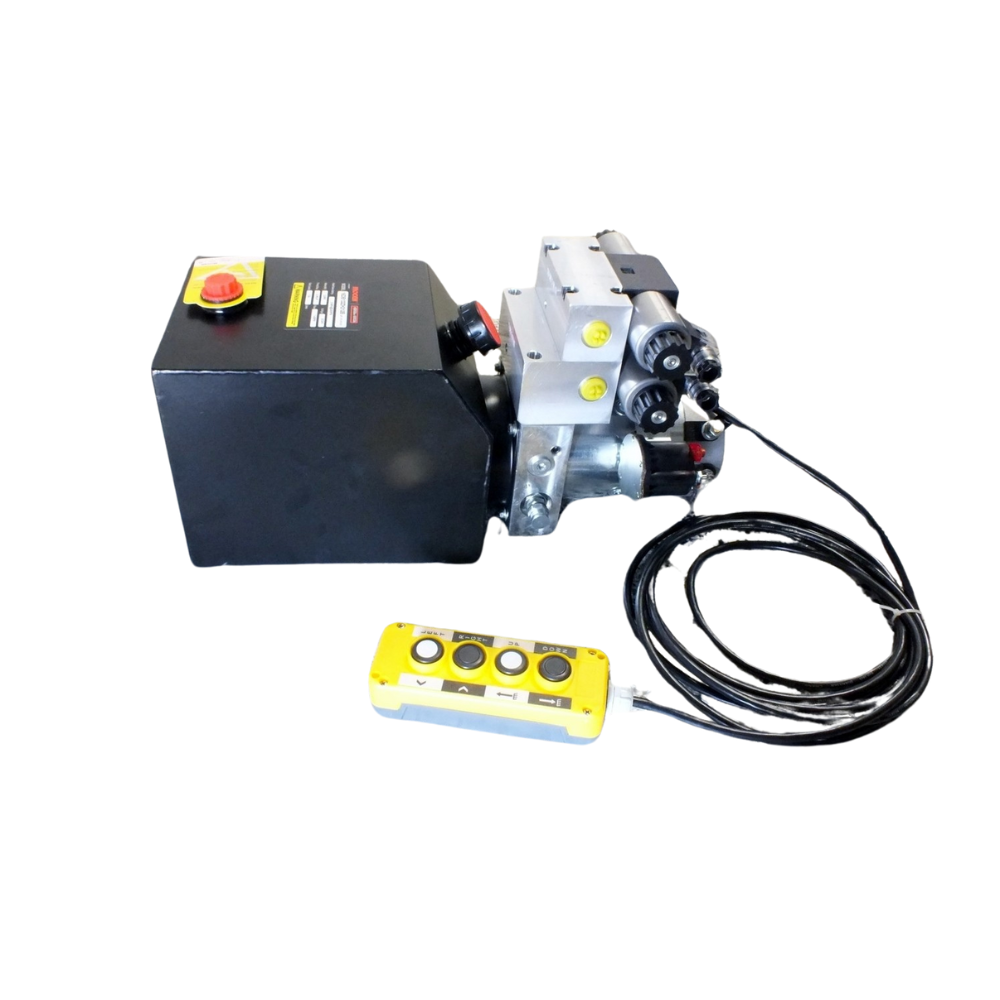

Higher power 12 V DC 2.5 KW or 24 V DC 2.8 KW Hydraulic Power Unit with 2 x Double Acting Solenoid Valves
10 Lt tank and Flows Up to 9 Lt/Min at 2,500 psi.

This is a higher KW-powered and more versatile power unit as it has 2 x Double acting Solenoid valves.

We have a 'regular' 5 Lpm version at a cheaper price in other listings.

This 2 x double acting solenoid operated Hydraulic Power Pack has been designed specifically to actuate two separate hydraulic circuits or two separate Double Acting cylinders found on Tail Gate Loaders, Ramps on trucks and trays on low loaders, small cranes, or any double-acting hydraulic cylinder that is used intermittently.

It is available in both 12 Volt DC and 24 Volt DC. Because hydraulic power causes a lot of heat, this higher power, higher flow powerpack can move more oil in less running time, causing less heat. It comes with a four-button pendant cable controller.

We also have a regular 5lpm version of this at a cheaper price. See listings.
Ideal if you need to operate two sets of 2 Rams.
4 Button Control Pendent is Supplied with Order
Capable of generating up to 200 Bar (3000 PSI) Pressure.
2500 psi Relief setting standard
Can be mounted Horizontally or Vertically. # You must contact us if mounting vertically as we need to change the oil pick up.
This is a quality motor and pump Manufactured in Shanghai to very high standards.
Postage is standard at $40
Some Remote areas may incur a Small Postage fee
Specifications
Power Rating 12 or 24 DC, 2.5 KW /2.8KW
Flow 9.0 liters per Minute at 170 Bar (2500 PSI)
Max Pressure up to 200 BAR (3000 PSI)
Pressure relief valve Factory set at 170 BAR (2500 PSI)
Ports 9/16 UNO
10 Liter capacity Oil tank with combination breather/level plug and separate fill plug.
Twin Solenoids are mounted to a Steel Valve Block that has a spring-to-center position with all Ports Closed in the center position.
Four Heavy Duty Solenoid Coils
Manual Actuation or Override on Solenoid Spindles.
LED Indicator Lights on Hirschmann Type cable connectors to coils
Flexible Mounting Positions can be mounted Horizontally or Vertically (Motor Up)
4 button Control Pendant IP 55 Rated (water and dust resistant) with 5 M cable
Safety thermistors are installed in motor windings to prevent overheating.
Duty Cycle = 25% at Low Duty, low load and pressure (600 PSI) = 100Amps Draw,
Allowable run time 12.5 minutes and then allowed to totally cool down.
or 150 seconds ON - 400 seconds OFF.
Duty Cycle = 19% at Medium duty medium load and pressure (1600 PSI) = 160 Amps Draw
Allowable run time of 7.5 minutes and then allowed to totally cool down.
or 150 seconds ON - 640 seconds OFF.
Duty Cycle = 7% 300 Amps High Duty High Load and pressure (3000 PSI) = 300 Amps Draw
Allowable run time 1.7 Minutes and then allowed to totally cool down
or 150 seconds ON and 2000 seconds OFF.
Dimensions Length = 49 cm Width = 20 cm Height = 22 cm
Weight 19 KG
Use ISO 48 Hydraulic Oil or ATF Fluid for this unit
