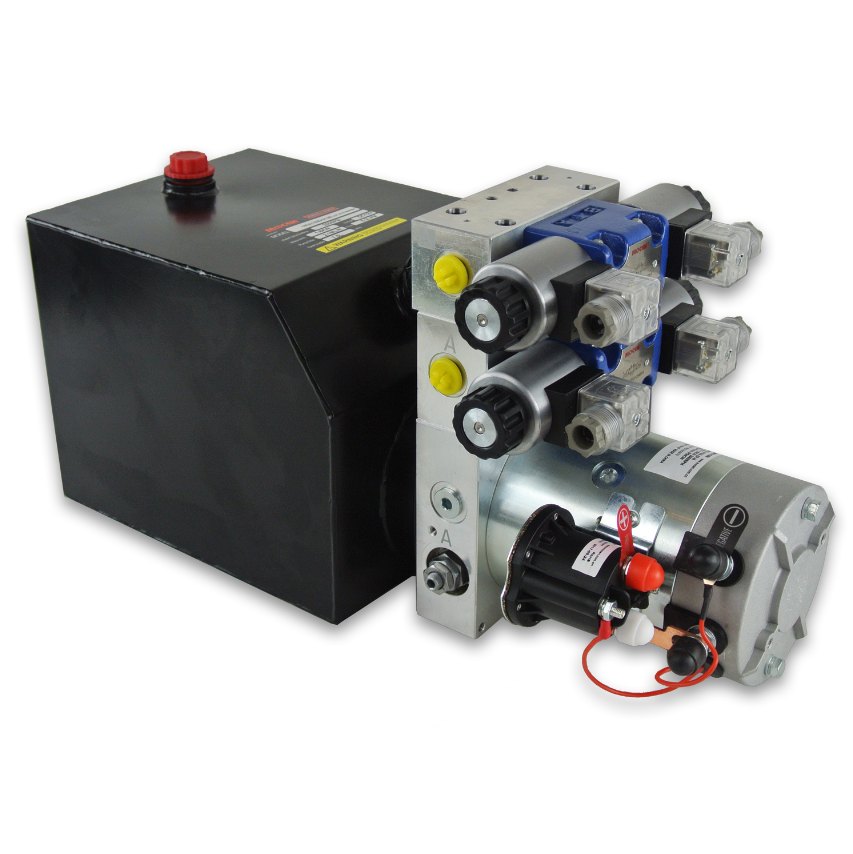

Hydraulic Power Pack 12 or 24 Volt DC fitted with two Double acting Cetop 3 Solenoid valves supplies oil flow 5.0 Lt/Min at 2,500 psi.

Powered by 12 or 24 Volt DC this compact Hydraulic Power Pack or HPU comprises a Motor, Pump, Tank & Two Double Acting Solenoid valves. It is designed to supply an oil flow of 5 Lt/Min at a Pressure of 2,500 PSI to two separate Hydraulic functions.

Connect the pressure lines to the hydraulic power pack's manifolds to intermittently control the movement of double-acting cylinders or rams used in most mobile equipment or machinery.

It comes with an optional 4 button pendant .

There are Many Diverse Uses for this Hydraulic Power Unit

Small Truck mounted Mini cranes, Car Carriers, Tow Trucks, Stabiliser systems for Caravans, and motor homes and any mobile or remote hydraulic plant and applications that require tow (2) separate hydraulic circuits.

Tippers with Stabilisers, Tow Trucks, Tail Gate Loaders, Ramps on trailers and low loaders, Camper van or camper trailer leveling, boat lift or tilt systems, or any other 2 circuits double acting hydraulic circuit requiring intermittent use, low flow, and high-pressure hydraulic oil.

Industrial Applications:

• Machine tool clamping: For quick and precise clamping of workpieces.
• Assembly line automation: For powering pneumatic or hydraulic tools and actuators.
• Material handling equipment: For powering small lifts, tilters, and other equipment.

• Agricultural machinery: For powering hydraulic cylinders for various operations, such as lifting, tilting, and clamping.
• Livestock handling equipment: For powering hydraulic gates, feeders, and other equipment.

Boat lifts: For powering hydraulic cylinders to raise and lower boats.

Mobile workshops: For powering hydraulic tools and equipment.

Watch the video: below to see first hand some of the great features that come as standard on these quality units.

Watch the video below that shows you How to Electrically Wire up a 12 or 24 Volt DC
Hydraulic Power Pack.

This Unit is capable of generating up to 200 Bar (3,000 PSI)
Please note that at 3,000 psi Pressure delivery flow rate will be reduced.
This is a quality motor and pump Manufactured in Shanghai to very high standards.

Buy with Confidence from a long-established Hydraulic Service Center
and get a 12-month warranty and an Australian Tax Invoice.

Hydraulic Power Pack 12 or 24Volt DC
2 X Double Acting cetop solenoid valves
Flows 5.0 Lt/Min at Max pressure of 200 Bar

This is a higher quality unit than most offerings online:, in that the 'duty' cycle is vastly superior, (see below).
DC power uses a lot of currents & produces a lot of heat, therefore depending on your usage needs, cheaper units will fail quickly.

This unit will produce 5 Lpm @ 2,500 psi, but when your load, ie.cylinders are not under full tonnage, it will produce considerably more, meaning your cylinders move faster. 5 Lpm is the Minimum it will achieve.

Available also in P & T, Single acting, or Double acting
Capable of generating up to 200 Bar (3000 PSI) Pressure.
Can be mounted Horizontally or Vertically. (Motor UP tank Down)
This is a quality motor and pump Manufactured in Shanghai to very high standards.

• Power Rating 12 (1.6 KW) or 24 DC, 2.2 KW
• Flow 5.0 liters per Minute at 170 Bar (2500 PSI)
• Max Pressure up to 200 BAR (3000 PSI)
• Pressure relief valve Factory set at 140 BAR (2000 PSI)
• Ports 9/16 UNO
• 7.5 Liter capacity Oil tank with combination breather/level plug and separate fill plug.
• Twin Solenoids are mounted to a Steel Valve Block that has a spring-to-center position with all Ports Closed in the center position.
• Four Heavy Duty Solenoid Coils
• Manual Actuation or Override on Solenoid Spindles.
• LED Indicator Lights on Hirschmann Type cable connectors to coils
• Flexible Mounting Positions can be mounted Horizontally or Vertically (Motor Up Tank Down)
• Optional 4 button Control Pendant IP 55 Rated (water and dust resistant) with 5 M cable
• Safety thermistors are installed in motor windings to prevent overheating.
• Dimensions Length = 49 cm Width = 23 cm Height = 24.5 cm
• Weight 19 KG
• Oil requirements Use ISO 48 Hydraulic Oil or ATF Fluid for this unit

Duty Cycle = 25% at Low Duty, low load and pressure (600 PSI) = 100Amps Draw,
Allowable run time 12.5 minutes and then allowed to totally cool down.
or 150 seconds ON - 400 seconds OFF.

Duty Cycle = 19% at Medium duty medium load and pressure (1600 PSI) = 160 Amps Draw
Allowable run time of 7.5 minutes and then allowed to totally cool down.
or 150 seconds ON - 640 seconds OFF.

Duty Cycle = 7% 300 Amps High Duty High Load and pressure (3000 PSI) = 300 Amps Draw
Allowable run time 1.7 Minutes and then allowed to totally cool down
or 150 seconds ON and 2000 seconds OFF.

We can also provide quality hydraulic hose, adaptors, and field fit hose fittings at very competitive rates please see our other eBay listings or send us a message with any questions you may have.
For any questions, you may have or for more information regarding this listing please call us at (07) 5563 1982 or email us at
