Hydraulic Power Pack 2.2 kW, 240 Volts AC, Oil Flow up to 6.0 Lt/min at maximum 3,000 PSI pressure.

Available with Pressure and Tank Ports for remote valve applications or with single or double acting Cee Top 3 valve with remote push button solenoid coil control.

Summary

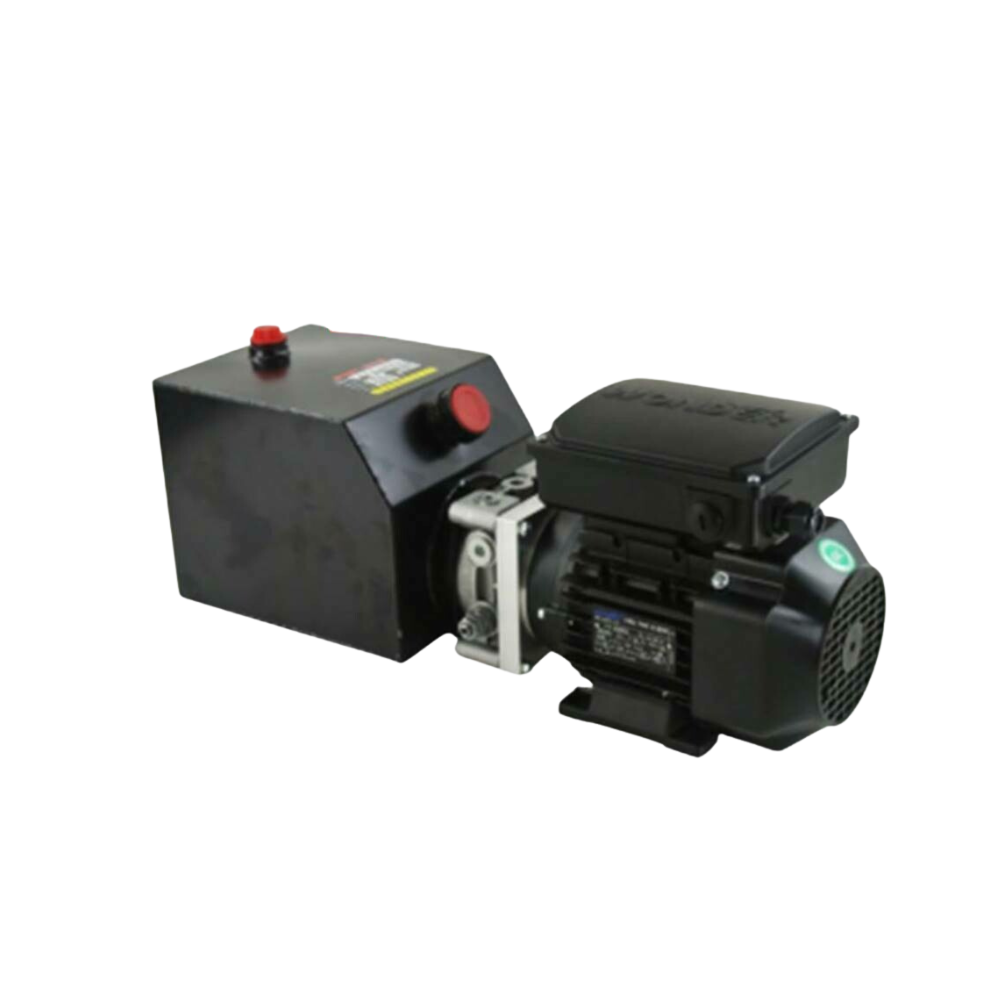

This is a single-phase 240 Volt AC hydraulic Power Unit with a 2.2 kW motor and a 2.1cc/rev pump with a flow rate of 6 liters per minute at a factory set pressure of 2,500 PSI. (max pressure is 3,000 psi)

Available in 3 variations: 240 volt AC - P & T (Pressure & Tank), Single acting, and Double acting.

This 240 Volt DC Power Pack has been designed specifically as a compact pressure supply unit to supply oil flow at pressure to a remote-mounted hydraulic circuit.

These pumps are are designed only for intermittent use, not constantly running.

Capable of generating up to 200 Bar (3000 PSI) Pressure. This unit is available as a P & T (for use with a lever directional valve),

S/A single acting drives the load up (load drops down via gravity) or

D/A double acting which drives the load both up & down.

For the S/A & D/A, we can supply solenoid coils in a choice of 12v, 24,v, or 240v.

We also can supply a 5-48V momentary cable control pendants in another listing please see link below
Click here for Pendant Controllers

Pendants are not supplied with these power units.
Please note: for 240-volt coils, we cannot supply hand-held control pendants.

Please also note; electric cables are not supplied with these units as per Australian law an Electrician is required by law to connect power cords..

There is a wiring diagram under the power terminal lid.

ROTATION When installing cable, the fan must run counterclockwise when looking from behind at the motor fan
Mocen AC power units are CCW looking at the motor fan.

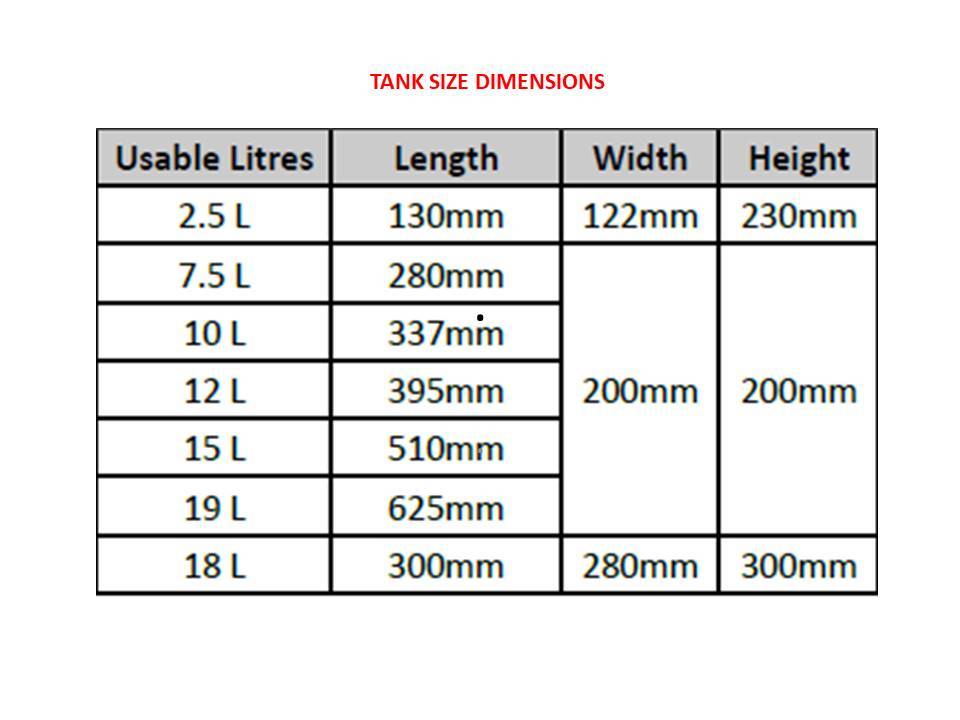

Tank Size Selection:

Heat is a by-product of hydraulic energy. It is the biggest enemy of hydraulic circuits, in that it can significantly degrade oil structure, 'cook' hoses & seals & lead to early pump failure so as a general rule a larger tank is always better.

For these reasons, it is important to choose the correct oil tank size to aid in oil cooling.
Tank dimensions are below. (please use dimensions as per below to work out length & height)
This unit comes with a 10 lt tank standard

Specifications

• Power Rating 1.1 KW, 240 Volts
• Flow 6.0 liters per Minute at 170 Bar (2500 PSI)
• Max Pressure up to 200 BAR (3000 PSI)
• Pressure relief valve Factory set at 150 BAR (2200 PSI)
• Ports 9/16 UNO
• 10 Liter capacity Oil tank with combination breather/level plug and separate fill plug.
• Flexible Mounting Positions can be mounted Horizontally or Vertically (Motor Up)
• Power draw 9.7 amp draw`
• Duty Cycle = intermittent

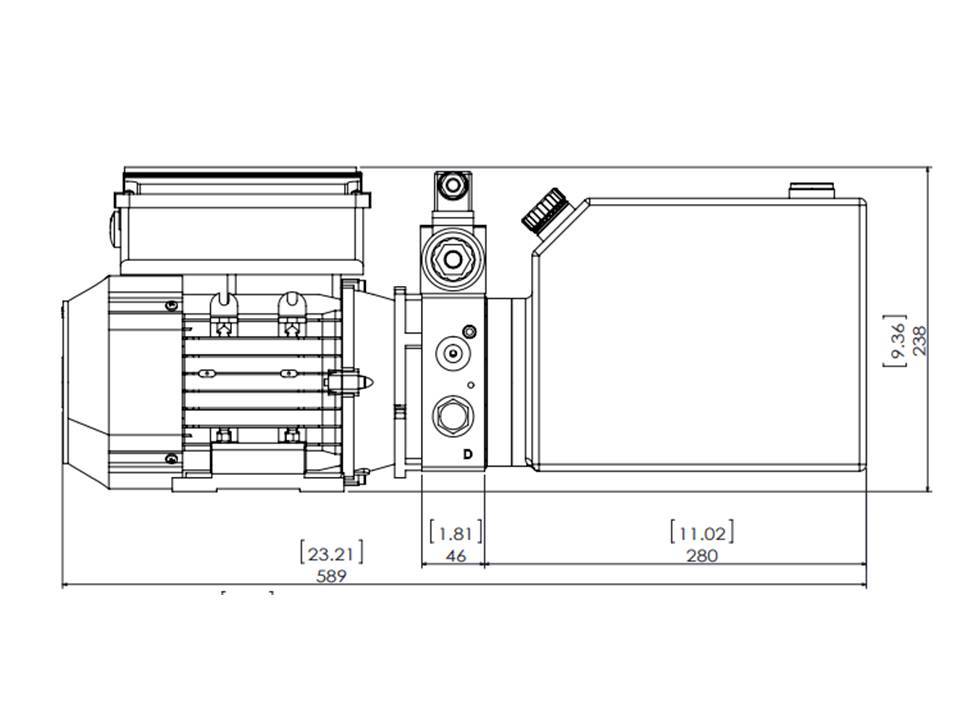

• Dimensions Length = 60 cm Width = 20 cm Height = 23 cm
• Weight 27 KG
