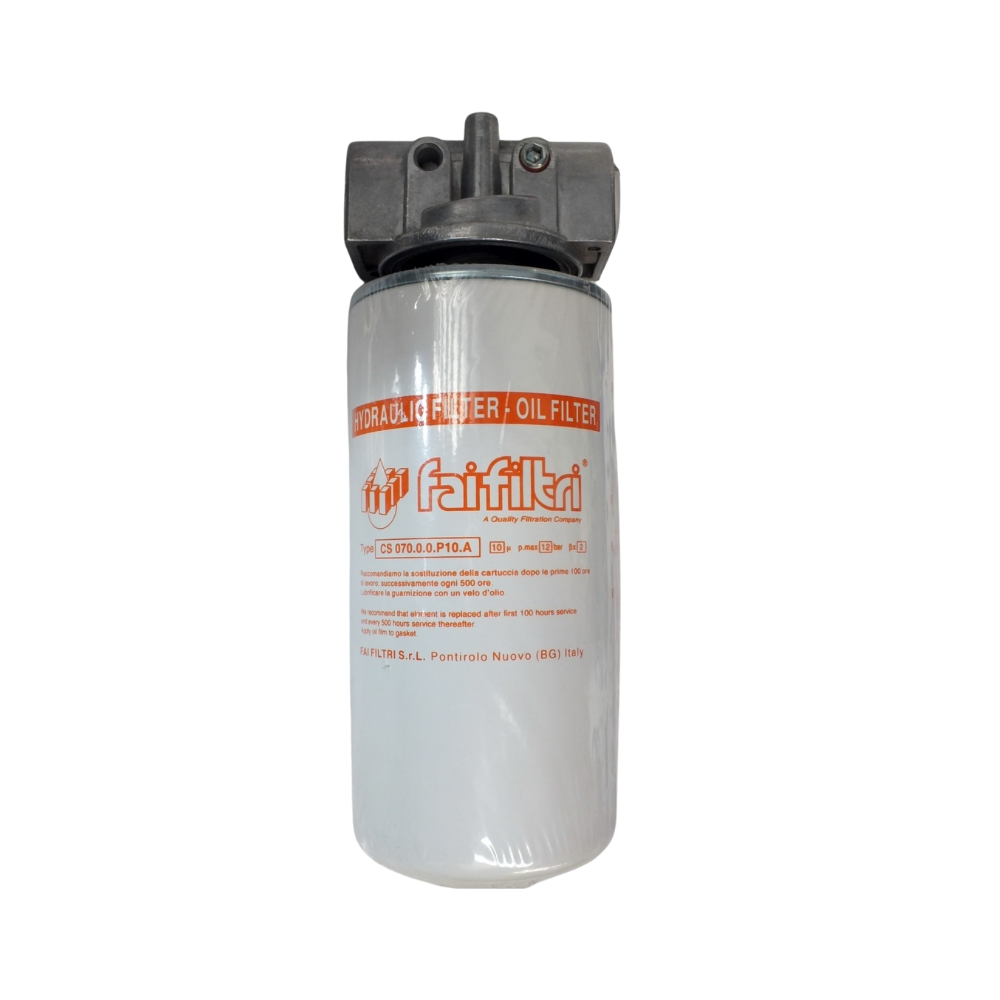

Hydraulic Oil Spin on Return filters, 3 to 90 Micron, flows from 30 to 120 Lt/min with optional aluminium 3/4" BSPP Filter Head.

Suitable for all hydraulic systems and mobile equipment, tilt trays, tractors, log splitters, etc

Hydraulic equipment is generally used and operated in some of the harshest environments around and if damaged they are Expensive to Replace.

The Long term reliability of hydraulic equipment is greatly enhanced if the Hydraulic Oil is continuously filtered.
These Filter items are Quality items and are manufactured using the latest Filtration materials and technology by FaiFiltri Italy.

Filters are usually installed in the low-pressure tank return line: and generally just before the oil returns to the tank. 25 microns is ideal for most agricultural-type hydraulics. It provides good flow.

For protecting the Pump 90 Micron Suction: Filters should also used to Strain out large particles before they are ingested into the tight tolerances of the pump.

Available Options; Please note for complete head & filter, select each item & click 'Add to Bag'

• Aluminium Alloy Filter Head with 3/4" BSPP Ports
  Complete with a "Clogged filter" internal bypass set at either 0.3 or 1.7 Bar (5 or 25 psi)
  The filter head has two 1/8" BSPT ports available to mount an optional "clogging indicator"
  On the top of the Filter Head are two M6 threaded holes 38 mm apart for mounting the filter assembly to a bracket or machine framework.
• Filters
• CS5000 - Series Spin on filters Available in 3, 6 , 10 ,25 and 90 micron
  flows from 35 to 100 Lt/min
  Filter has a metal Canister and paper filter media, Size is 96 mm diameter x 148 mm long
• CS7000 - Series Spin on filters Available in 3, 6 , 10 ,25 and 90 micron
  flows from 40 to 120 Lt/min
  Filter has a metal Canister and paper filter media, Size is 96 mm diameter x 210 mm
• Dial Type Clogging Indicators are an Option

• CS5000 HEAD + FILTER 175 mm high 100 mm wide 100 mm deep.
• CS7000 HEAD + FILTER 240 mm high 100 mm wide 100 mm deep.

Specifications

• Max Oil Flow Rate 35 - 120 liters / Minute ( 30 US GPM) (Larger flows and sizes available)
• Max Operating Pressure 12 Bar (174 PSI)
• Max Differential pressure 4 Bar (58 PSI)
• Burst Pressure 25 Bar (363 PSI)
• Filter head internal Bypass Pressure 0.3 or 1.7 Bar (5 or 25 psi)
• Filter media = inorganic, impregnated resin-bonded micro fibers supported upstream and downstream.
• Filtered Media = Suitable with All Mineral Oils, Fuels, Glycol/Water solutions, and Most Synthetic oils.
• Operating Temperature -25 to +110 degrees C
