CRANE TRUCK HYDRAULIC POWER UNIT HIAB, UNICH, etc

Powered by 12 or 24 Volt DC this compact Hydraulic Power Pack or HPU comprises a Motor, Pump, Tank & three Double Acting Solenoid valves. It is designed to supply an oil flow of 5 Lt/Min at a Pressure of 3000 PSI to three separate Hydraulic functions. 10 Litre tank standard. This is an ideal pump replacement to operate small truck-mounted Hiab-type cranes. This will lift full tonnage, & the 5 Lpm is an ideal speed for small cranes. We also have a more powerful unit, which will lift the same tonnage but will move your crane faster. This is a better choice for bigger cranes.

Also available in up to Six sandwich valves (12 solenoids) Please contact us for pricing.

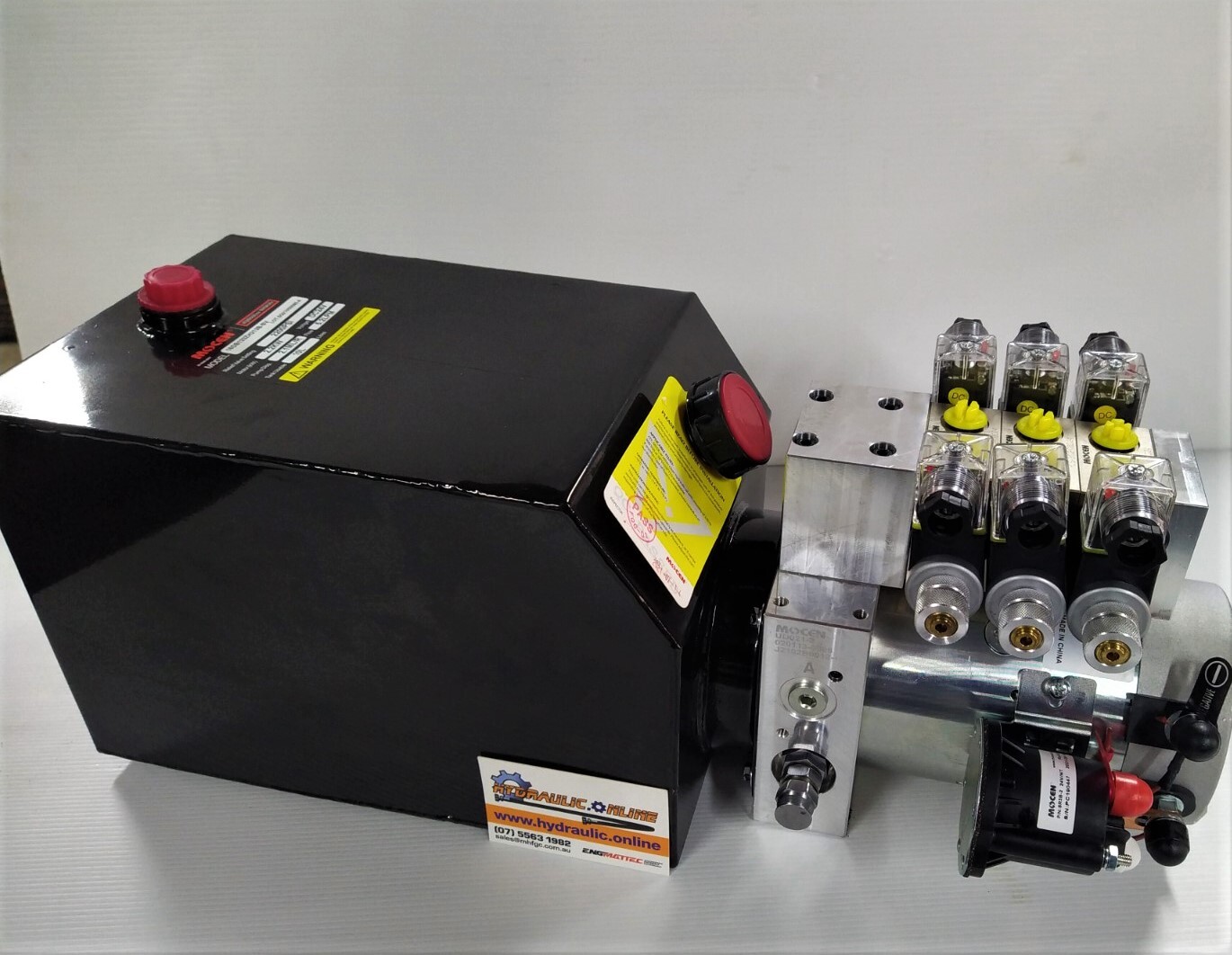

The photo is of the actual unit, however, STEEL tanks will now be supplied.

This unit is ready to be hooked up to your power cables, & can then be operated from an existing electric or remote control, or we can supply a 6-button pendant control or even a remote control unit.

Will suit any other 2 circuits double acting hydraulic circuit requiring intermittent use, low flow, and high-pressure hydraulic oil. Please use Hydraulic 46 oil.

This Unit is capable of generating up to 200 Bar (3000 PSI) Pressure at a reduced flow rate.
This is a quality motor and pump Manufactured to very high standards.

Specifications
Power Rating 12V (1.6 KW) or 24V DC, 2.2 KW
Flow 5.0 liters per Minute at 170 Bar (2500 PSI)
Max Pressure up to 200 BAR (3000 PSI)
Pressure relief valve Factory set at 140 BAR (2000 PSI)
Ports 9/16 UNO
10 Litre Steel Liter capacity Oil tank with combination breather/level plug and separate fill plug.
Three Solenoids are mounted to a Steel Valve Block that has a spring to the center position with all Ports Closed in the center position.
Six Heavy-Duty Solenoid Coils
Manual Actuation or Override on Solenoid Spindles.
LED Indicator Lights on Hirschmann Type cable connectors to coils
Flexible Mounting Positions can be mounted Horizontally (or Vertically (Motor Up you MUST advise us!!)
Safety thermistors are installed in motor windings to prevent overheating.
Duty Cycle = 25% at Low Duty, low load and pressure (600 PSI) = 100Amps Draw,
Allowable run time 12.5 minutes and then allowed to totally cool down.
or 150 seconds ON - 400 seconds OFF.
Duty Cycle = 19% at Medium duty medium load and pressure (1600 PSI) = 160 Amps Draw
Allowable run time of 7.5 minutes and then allowed to totally cool down.
or 150 seconds ON - 640 seconds OFF.
Duty Cycle = 7% 300 Amps High Duty High Load and pressure (3000 PSI) = 300 Amps Draw
Allowable run time 1.7 Minutes and then allowed to totally cool down
or 150 seconds ON and 2000 seconds OFF.

Dimensions Length = 49 cm Width = 20 cm Height = 22 cm
Weight 19 KG
