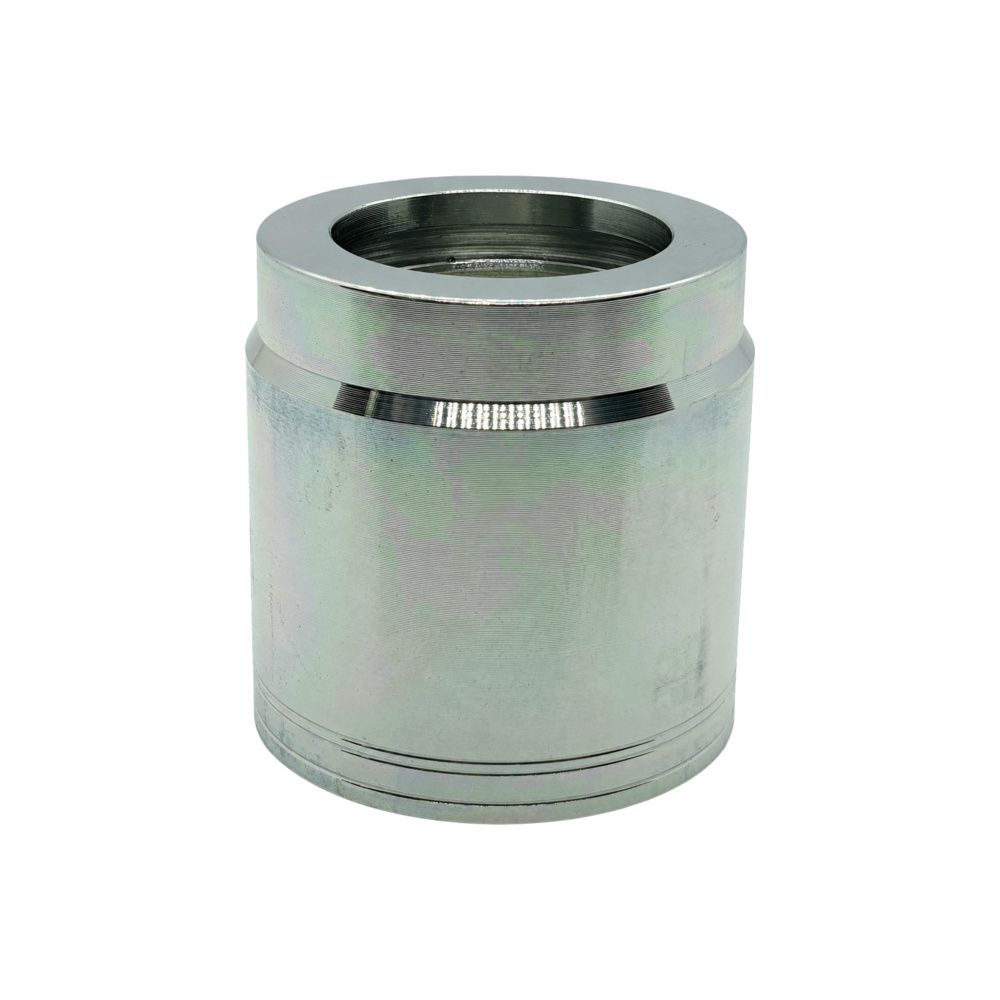

Ferrule – Multi‑Fit 1 & 2 Wire Braided Hose – FS‑R2 – Crimp-On

The crimp-on ferrule that covers most braided hose. One series suits 1‑wire, 2‑wire, Gates M3K and MXT, so you stock a single ferrule range instead of four.

Mild steel body with a plated finish, sized to suit 1‑wire, 2‑wire, M3K and MXT braided hose.

This is the ferrule only – tails are sold separately

A two-piece crimp-on assembly is two separate parts: a hose tail (the stem that carries the thread) and this ferrule, which crimps over the hose. The tail is not included. You need one ferrule per tail.

🔗 Browse two-piece hose tails

How to Choose

• Match the ferrule to your hose type first, then the size. Braided hose only. Thermoplastic 100R7 and PTFE 100R14 take their own ferrule series.
• Order the same dash size as the hose bore. One ferrule per tail.
• Never mix systems – a tail from one manufacturer with a ferrule from another will not crimp to a safe diameter.

Crimp Dimensions

Crimp to the figure on the 2026 chart for your exact hose, measured across the flats, and check it with calipers at two points 90° apart before the assembly goes near a machine.

📄 Crimp Dimensions Chart (PDF)

Technicians Advice

This is the ferrule most jobs take, which is exactly why it gets grabbed without checking. If the hose is thermoplastic or PTFE it is the wrong part – confirm the hose printing before you crimp, not after.

Where You’ll Find It

• General hydraulic repair and manufacture across earthmoving, agriculture, transport and industrial plant – anywhere 1‑wire or 2‑wire braided hose is used.

Downloads

📄 Crimp Dimensions Chart (PDF) 📄 Thread Identification Chart (PDF)

Other Ferrule Styles

🔗 See all crimp ferrules
