2.2 kW 3 Phase 415 Volt Ac Hydraulic Power Pack with 10 Litre oil tank delivering 6.0 Lt/Min flow at 185 Bar (2,800 PSI) Pressure.

Designed for industrial machinery, conveyors, presses, punches, benders, tippers & folders small motors, P & T, Double or Single acting cylinders intermittent light duty.

Larger Flow Sizes at lower pressures are also available at NO EXTRA COST.

Heat is the by-product of hydraulic equipment & is one of the major causes of early failure. For a little extra cost, Oil tanks can be upsized to create a larger oil capacity in order to increase heat soak time and also heat dissipation from a larger surface area.

Please note; electric plug cables are not supplied with these units as per Australian law. There is a wiring diagram under the power terminal lid. An Electrician is required by law to hook up.

ROTATION
Mocen AC power units are CCW looking at the motor fan
This comes standard with a 2.2 CC pump please call or email us for other options listed below.
email = sales@mhfgc.com.au

Phone Australia +61 07 5563 1982

Different tank sizes are also available for minimal additional cost.

Please note if you want more Pressure you will be reducing maximum flow & conversely,
if you install a larger pump for higher flow your max Pressure will be reduced.

P/T= Pressure/Tank (requires the use of a remote mounted control valve)
D/A= Double Acting (requires pendant/electrical controller), not included see below at our other listing for pendants.
Click here to view pendant controller options

S/A=Single Acting (requires pendant/electrical controller) not included see other listings for pendants
Click here to view pendant controller options

This is a quality motor and pump Manufactured in Shanghai to very high standards.

• for 2.2cc Pump
• Motor has an Aluminium Frame fan cooled with fins, Frame size = 90
• Flow 6 liters per Minute @ 2,500 PSI (175 BAR)
• Max Pressure up to 193 BAR (2800 PSI)
• Pressure relief valve Factory set at 195 BAR (2825 PSI)
• Ports 9/16 UNO
• Standard 10 Liter capacity Oil tank with combination breather/level plug and separate fill plug.
  Larger tanks available up to 38 liters please call for pricing.
• Manual Actuation or Override is available on Solenoid Spindles Please contact us for this option
• Flexible Mounting Positions can be mounted Horizontally or Vertically (With Motor Up)
• Duty Cycle = Intermittent

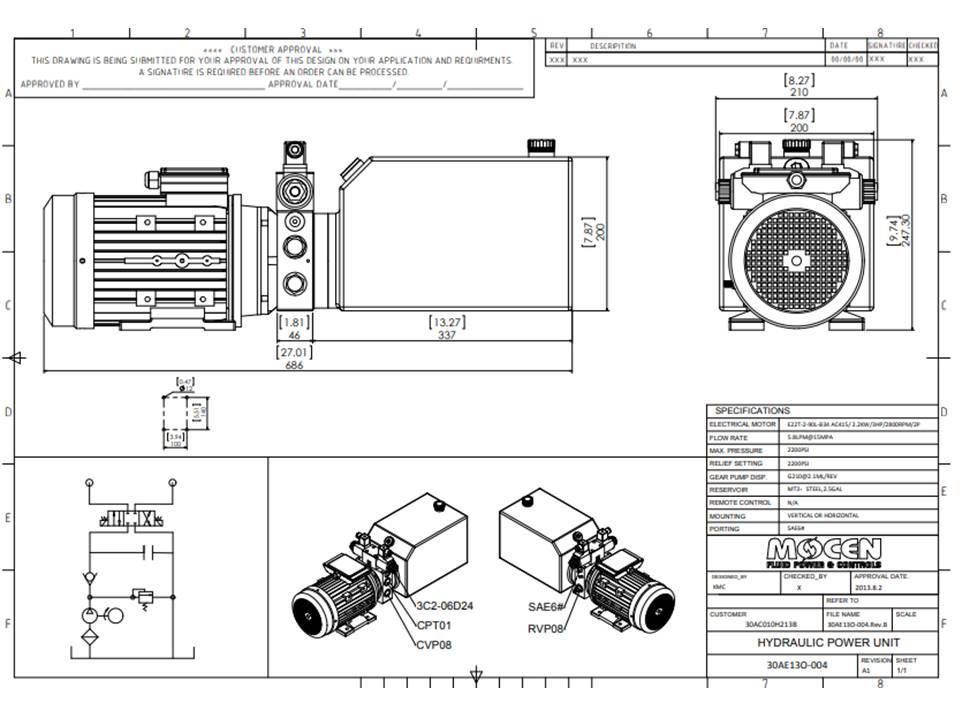

• Dimensions Length = 69 cm Width = 20 cm Height = 24 cm
• Weight 22 KG

Use ISO 48 Hydraulic Oil or ATF Fluid for this unit

Intermittent Use As a guide … 8% - 10 % per hour at full flow and pressure, this time needs to be intermittent over the hour, with max time on a 2 - 3 min duty cycle. ( depending on Flows and Pressures )

So if you are using the Power Unit you could only activate every 12 -14 min for 2 - 3 min Hence the recommendation of 3-5 times per hour max .. And in some application you should increase the Tank size as a precaution against heat. These can be upsized for a little extra cost.

We can also provide quality flow control valves, hydraulic hoses, adaptors, and field fit hose fittings at very competitive rates please see our other listings or contact us at 0755 631 982, or contact us at; sales@mhfgc.com.au
