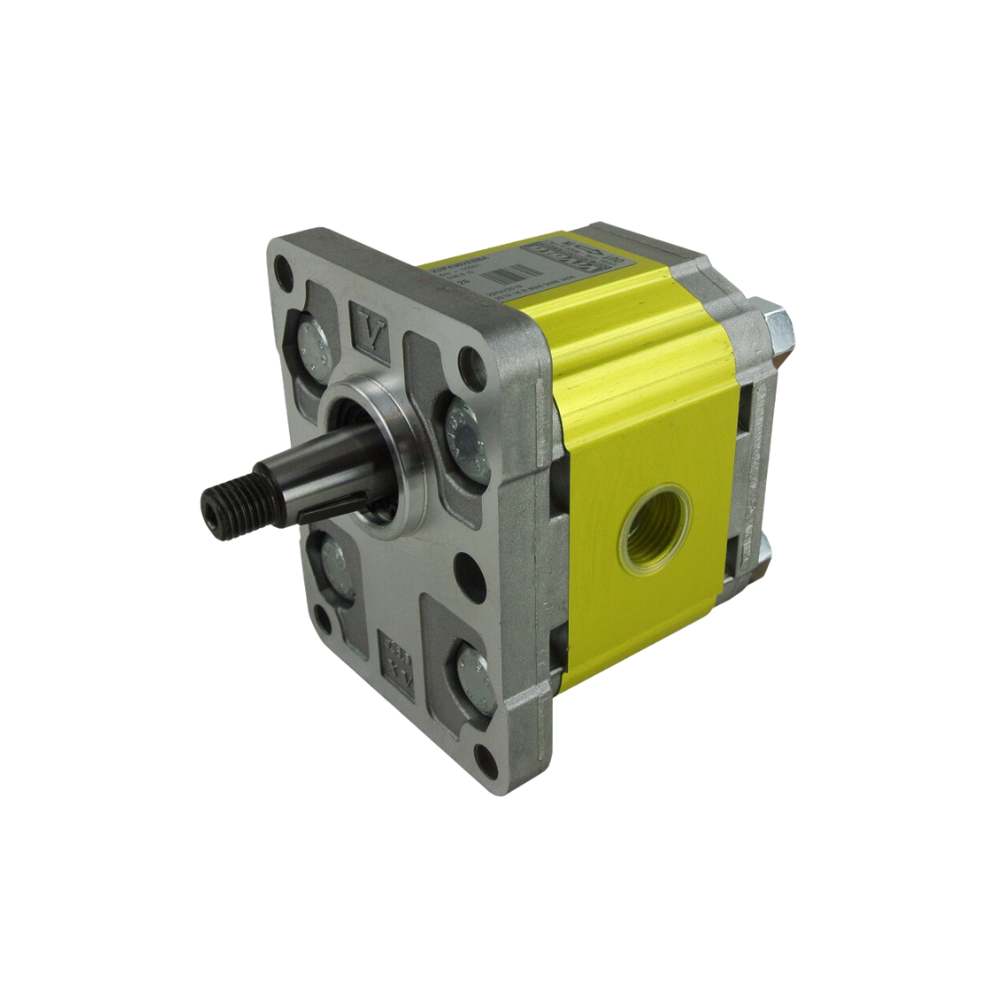

Vivolo Italian Made Hydraulic Group 2 Gear Pump, available in the following displacement sizes, from 4.2 cc/rev to 39.6 cc per revolution.

Features:

• 4 Bolt DIN Mounting Flange (71.5 x 96.5 mm) with
• 36.5 mm Diameter Locating Spigot
• and 1:8 Tapered Shaft

These are a high-quality Vivolo Italian-made hydraulic gear pumps.

Hydraulics demands extremely fine tolerances & quality materials.

Vivolo has been producing hydraulic items for over 30 years.

We offer a 12-month warranty. These are pumps are fully interchangeable with "Casappa" gear pumps.

Specifications:

• These gear pumps come standard with Clockwise rotation, but we can supply counter-clockwise rotation as well.

• Please contact us for this counter-clockwise rotation option.

• Pressure and Suction ports come with BSPP threaded ports,

• Heat treated Aluminium Alloy Body and and Caps
• Case Hardened Steel Shafts and Gears
• Driven Shaft has a 1:8 taper and threaded lock nut and washer.
• DIN Mount Front Flange.
• For High Axial Loads: please see Pumps with
  Group 2 Pump Cast Iron DIN Mount Flange With Bearing Carrier, 1:8 Tapered Shaft.
• The ports & dimensions are per the Chart below and or images above
• The flow & pressure ratings are as per the Chart Below and or Images above.

•



























































































































  Part Number	Displacement CC/Rev	Max Working Pressure (bar)	Max Peak Pressure (bar)	Max/Min RPM	Suction Port Size	Pressure Port Size
  X2P4102EBBA	4.20	260	300	3500/700	1/2” BSPP	1/2” BSPP
  X2P4302EBBA	6.00	260	300	3500/700	1/2” BSPP	1/2” BSPP
  X2P4502ECBA	8.40	260	300	3500/700	3/4” BSPP	1/2” BSPP
  X2P4702ECBA	10.80	260	300	3500/700	3/4” BSPP	1/2” BSPP
  X2P4902ECBA	14.40	250	290	3500/700	3/4” BSPP	1/2” BSPP
  X2P5102EDCA	16.80	230	270	3500/700	1” BSPP	3/4” BSPP
  X2P5302EDCA	19.20	210	250	3000/700	1” BSPP	3/4” BSPP
  X2P5502EDCA	22.80	200	240	3000/700	1” BSPP	3/4” BSPP
  X2P5702EDCA	26.20	170	210	3000/700	1” BSPP	3/4” BSPP
  X2P5902EDCA	30.00	160	200	2500/700	1” BSPP	3/4” BSPP
  X2P6102EDCA	34.20	150	190	2500/700	1” BSPP	3/4” BSPP
  X2P6302EDCA	39.60	140	180	2000/700	1” BSPP	3/4” BSPP

We are a functioning hydraulic service center, so feel free to ring, or message us for prices on hydraulic adaptors, etc.

If you are unsure about identifying your pump, please clean & send a photo of numbers & letters stamped in the body of all pumps and we will be more than likely be able to interpret this for you.

Contact us on 07 5563 1982 or 1300 1 HOSES

or by email on sales@mhfgc.com.au
