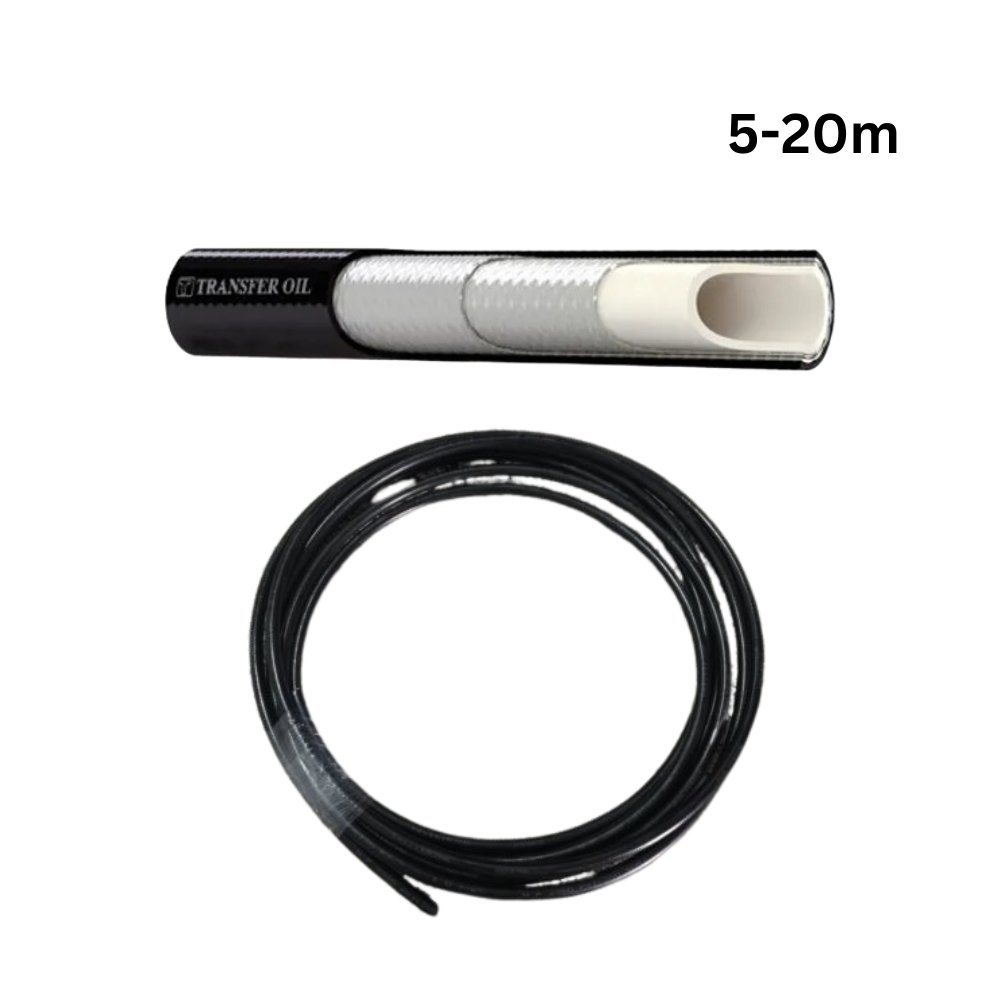

SAE 100R7-04 ThermoPlastic hydraulic Hose with1/4" inch bore

Specifications

Working pressure = 155 bar (2,250 psi)
Minimum Bend radius =127 mm
Range of Temperature- -40˚C to +100˚C

Construction

Thermoplastic hydraulic hose with Elastomer inner tube,
1 layer of braided synthetic fiber reinforcement and a black polyurethane Outer Cover.

Application
Medium pressure hydraulic lines to 190 bar (2,800 psi).
Suitable for hydraulic applications with restrictions on weight (eg high rise window washing) and resistance to continuous wet, corrosive and or marine environments.
Increased resistance to abrasion, can be used for pressure washing and drain cleaning.

For use with petroleum, synthetic, or water-based fluids in hydraulic systems.

Suitable for hydraulic applications with increased resistance to abrasion especially in Corrosive, Wet or Marine Conditions.

Also suitable for Irrigation and Dust Suppression Systems and Cherry pickers.
