RYCO AVENGER T26A and RYCO DIEHARD T26D Non-Skive Hoses.
EATON GH195 AQP HI-IMPULSE
PARKER 301SN-6 NON SKIVE HOSE
MANULI FLUICONNECTO 2SN FL2T06
PIRTEK SAE 100R2AT, SIZES R2AT-06.
TOTAL RUBBER SUNFLEX SAE 100 R2AT EN 853 2SN, SIZE HYD-R2T-06-SF-S

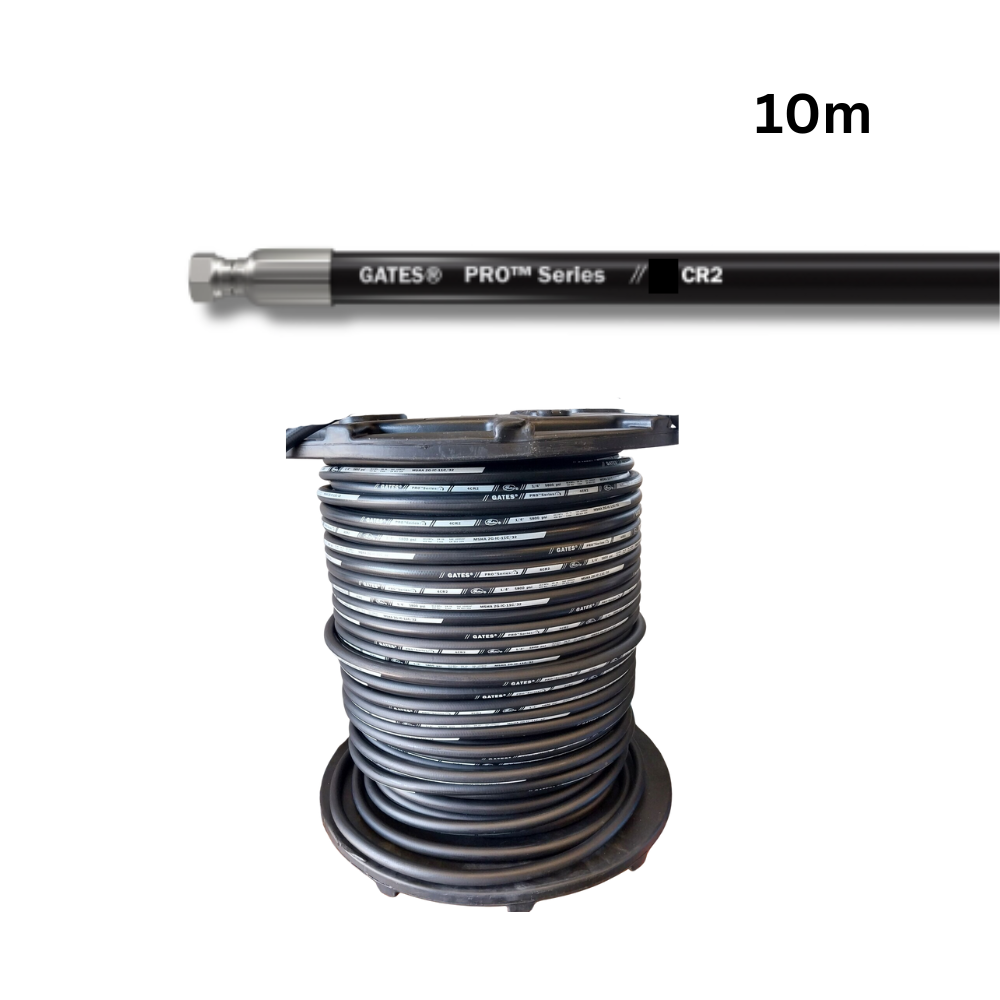

GATES PRO SERIES 6CR2 100R206 3/8" DN10 Hose can also be used with the following hose fittings
RYCO BITELOK ONE-PIECE CRIMP NON-SKIVE T200 AND T700 hose tails
EATON TTC / Z Series braided hose one-piece bite the wire style hose fittings.
Southcott Super Crimp S series stems with FNP-06 ferrules as well as Ezi-Crimp Non-Skive One Piece Series E fittings.
CHILD FIELD FIT COUPLINGS Series RMB, RFB, RMJ, RFJ, with BN2-06 non-skive Bodies.
RYCO FIELD ATTACHABLE L SERIES L00-06 FERRULES and 600 SERIES INSERTS.
TAIPAN 100R2GP-06AHF and 100R2-06AHF hose and K06 series
one-piece non-skive hose tails and or Field Attachable D06 Tails and D2-06 Bodies
This hose is Certified to work without failure a minimum of 200,000 Impulse Cycles
(equivalent to almost 1000 excavator earth moving hours) at 133% of maximum pressure
(6450 psi) and at 100% of maximum temperature 100 °C.
We have used this same hose extensively in our hydraulic service trucks, & on new builds.
It has a Smooth yet tough outer case, is very flexible for ease of fitting.
This hose is a quality product it suits either crimped ends or our D.I.Y field fit reusables also available from this store.
SAE 100R2AT– 06 NON SKIVE HOSE (Two Wire)

Construction

Synthetic rubber inner tube with two layers of braided high tensile steel wire reinforcement and an oil, Ozone, weather, and abrasion-resistant synthetic rubber outer cover.
Application
High-pressure service with petroleum base hydraulic fluids, water, Air, Water-glycol, water-oil, fire-resistant hydraulic fluids, hot oil grease, lubricants, crude, and fuel oils. For air applications above 100 PSI, the cover should be pin pricked
Need another hose size, field fit reusable fittings couplers, and or adaptors for your application? Please see our extensive 'crimp on' hose ends & field fit re-usable.
Specifications
Pressure Range
Working Pressure: 4890 PSI
Burst Pressure: 20000 PSI (Minimum)
Range of Temperature -40⁰C to + 120⁰C
Minimum Bend Radius 135mm
Weight 0.46 KG/Mtr
