Please note Gates 3/8" Hose will be supplied

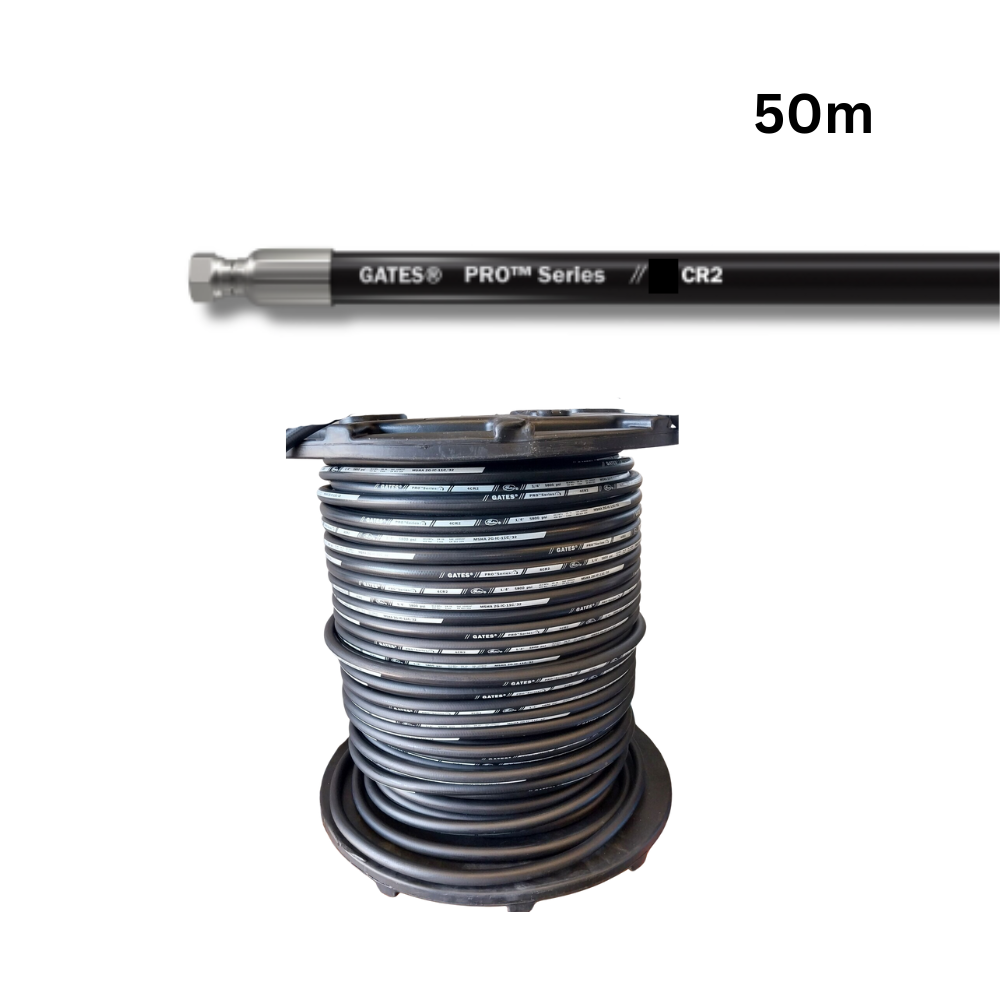

50 M coil of 3/8" HYDRAULIC HOSE 3/8" ID Two Wire 330 bar (4800 PSI) Working Pressure
Made with a Synthetic rubber inner tube with two layers of braided
high tensile steel wire reinforcement and wrapped in an Oil, Ozone, Weather,
and Abrasion Resistant synthetic rubber outer cover.
Meets and exceeds SAE 100R2AT and German EN 853 standards.
This hose is Certified to work without failure a minimum of 200,000 Impulse Cycles (equivalent to almost 1000 excavator earthmoving hours) at 133% of maximum pressure (6450 psi) and at 100% of maximum temperature 120 °C.

ENGMATTEC and GATES PRO SERIES CR2 is a 100R2 3/8" DN10 Hose and is fully compatible, interchangeable, and or as a direct replacement for the following brands of hoses
RYCO AVENGER T26A and RYCO DIEHARD T26D Non-Skive Hoses.
EATON GH195 AQP HI-IMPULSE hoses
PARKER 301SN-6 NON SKIVE HOSE
MANULI FLUICONNECTO 2SN FL2T06
PIRTEK SAE 100R2AT, SIZES R2AT-06.
TOTAL RUBBER SUNFLEX SAE 100 R2AT EN 853 2SN, SIZE HYD-R2T-06-SF-S

ENGMATTEC and GATES PRO SERIES CR2 100R2AT 3/8" DN10 Hose
can also be used with the following hose fittings
RYCO BITELOK ONE-PIECE CRIMP NON-SKIVE T200 AND T700 hose tails
EATON TTC / Z Series braided hose one-piece bite the wire style hose fittings.
Southcott Super Crimp S series stems with FNP-06 ferrules as well as Ezi-Crimp Non-Skive One Piece Series E fittings.
CHILD FIELD FIT COUPLINGS Series RMB, RFB, RMJ, RFJ, with BN2-06 non-skive Bodies.
RYCO FIELD ATTACHABLE L SERIES L00-06 FERRULES and 600 SERIES INSERTS.
TAIPAN 100R2GP-06AHF and 100R2-06AHF hose and K06 series one-piece non-skive hose tails and or Field Attachable D06 Tails and D2-06 Bodies
This great hydraulic hose is manufactured in Europe. Have peace of mind fitting a proven high-quality hose
Please note for lengths greater than 20m one or more cuts may be used to make up the full length, please let us know if you require a continuous length and we will do our best to accommodate

AT rated for higher temperature resistance to 120° C
We have used this same hose for over 10 years in our hydraulic service trucks as well as on new builds.
It suits either crimped ends or our D.I.Y field fit reusables also available from this store.
Freight Please contact us with your address/postcode for a freight quote. We only charge what freight actually costs. Weight & dimensions are; 27 KG , 48cm x 42 cm x 42 cm
Application
High-pressure service with petroleum base hydraulic fluids, water, Air, Water-glycol, water-oil, fire-resistant hydraulic fluids, hot oil grease, lubricants, crude, and fuel oils. For air applications above 100 PSI, the cover should be pin pricked.
Need another hose size, field fit reusable fittings, Crimp-on fittings, couplers, and or adaptors for your application?
Specifications
Pressure Range
Working Pressure: 4890 PSI
Burst Pressure: 16000 PSI (Minimum)
Range of Temperature -40⁰C to + 120⁰C
Minimum Bend Radius 135mm
Weight 0.48 KG
