Hydraulic Flow Control Valve 3/4" BSP Ports 5-Spool 80 Lt/Min TILT TRAY fully Interchangeable with Wavoil Italy.

This is a brand new, made in Taiwan, Youli brand high quality 80Lpm monoblock
valve. it is designed for any application where you need to control 5 individual function or cylinder.

It has a 'power beyond' port 'C', which gives the valve the abilty to supply another valve downstream pressure. You must select 'power beyond sleeve ' for this function to work. Please note, you MUST still use a tank return hose from BOTH valves.

Standard this comes with a 'cylinder' spool. This will 'lock' your load/cylinder in place when in centre position.

If using this to spin a motor, a motor spool is recommended. If your motor is spinning fast, the centrifugal force if shut of dead by a cylinder spool, may cause damage to various components of your system.

A motor spool will allow the motor to spin to a slow stop. It will not lock in place. Lever action is Spring Return to

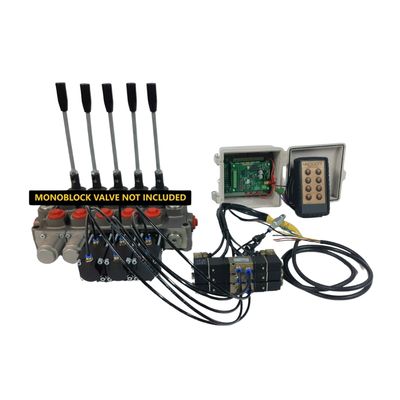

Center. (photo is incorrect, this will be 5 lever model).
