Hose Tail – JIC Swivel Female – 90° Compact Elbow – Two-Piece Crimp-On

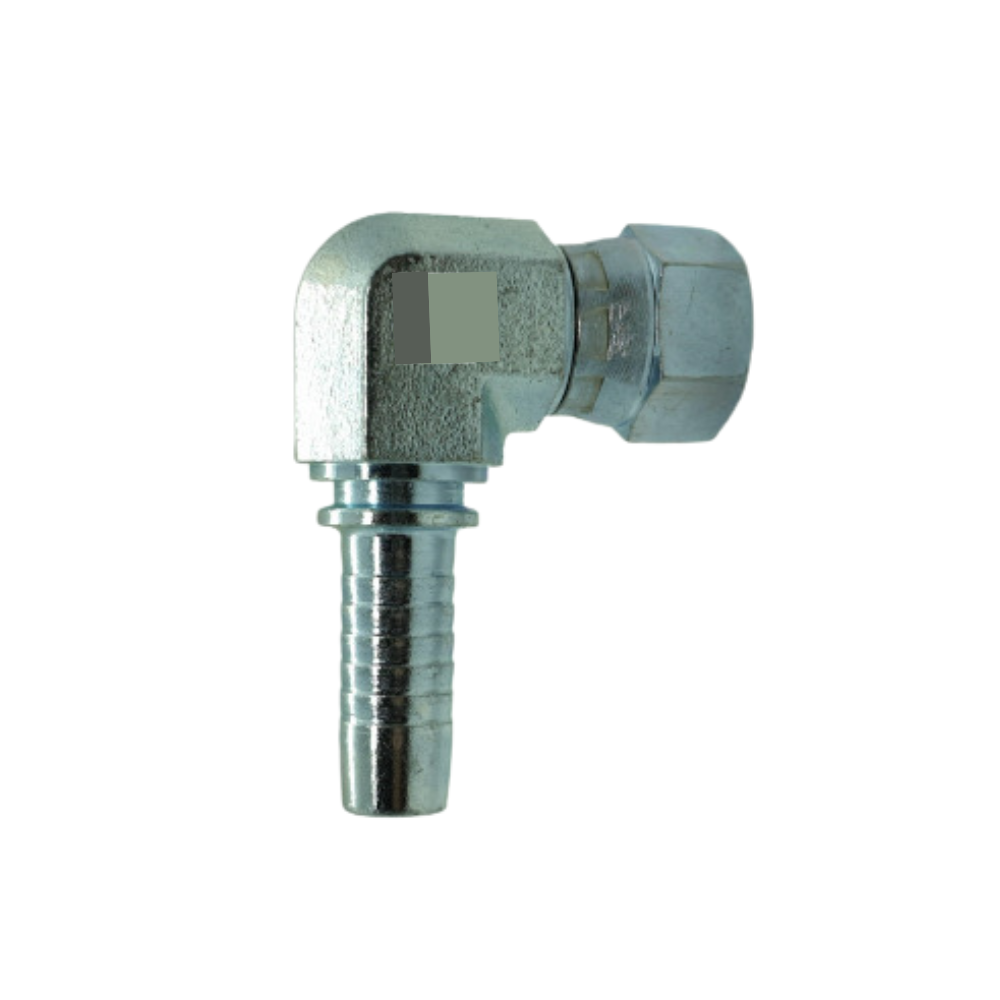

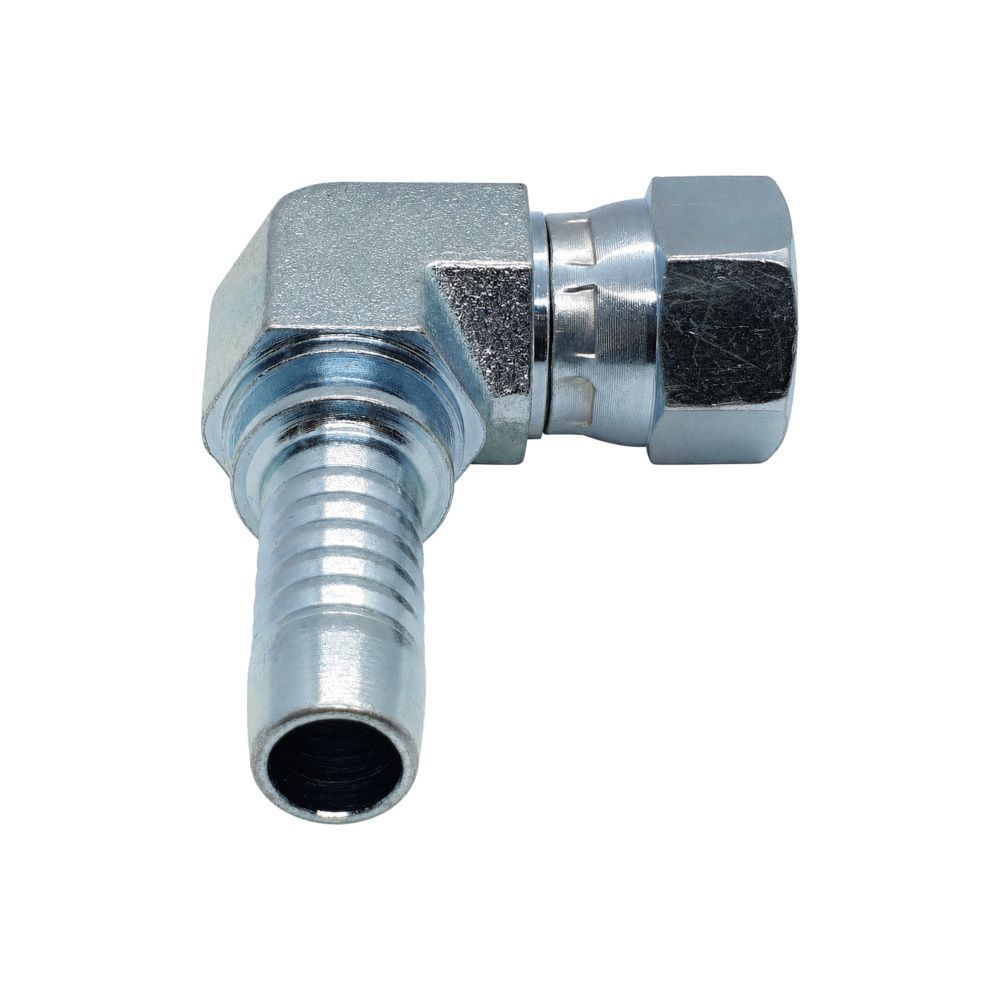

A JIC swivel female on a 90° compact crimp tail. The tight right angle for when the hose has to turn square with almost no room.

Mild steel body with a plated finish, manufactured to the standard listed above.

This is the tail only – ferrules are sold separately

A two-piece crimp-on assembly is two separate parts: this tail (the stem) and a ferrule that crimps over the hose. The ferrule is not included. You need one ferrule per tail.

We sell them separately on purpose. Several different ferrule styles will fit, and the right one depends on the hose you are crimping onto, not just the size:

• FS‑R2 Multi‑Fit – 1‑wire, 2‑wire, M3K and MXT braided hose. One series covers the lot, so most jobs take this.
• FS‑R7 – thermoplastic 100R7 hose. Different outside diameter and crimp figure to braided hose.
• FS‑R14 – PTFE 100R14 hose with stainless braid.

🔗 Choose your ferrule – see all styles

Not sure which one? Tell us the hose you are using on 1300 146 737 and we will match it. Never mix a tail from one system with a ferrule from another – the crimp diameter will be wrong.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Swivel Female – SAE J514 37° flare, seals on the 37° cone seat and swivels, so the hose is never wound up during assembly

How to Choose

• The bend is formed into the tail, so the angle is fixed. Decide which way the hose has to leave the port before you order – you cannot rotate it after it is crimped.
• Swept is a long, gentle radius. Compact turns in a much shorter space but works the hose harder. Use compact only where you genuinely have no room for a swept.
• Seals dry on the 37° cone.

Technicians Advice

Compact bends work the hose harder right at the ferrule, which is where assemblies fail. If a swept will fit, use the swept. Keep compact for the spots that genuinely will not take one.

Where You’ll Find It

• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.

Cross-Reference

• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.
