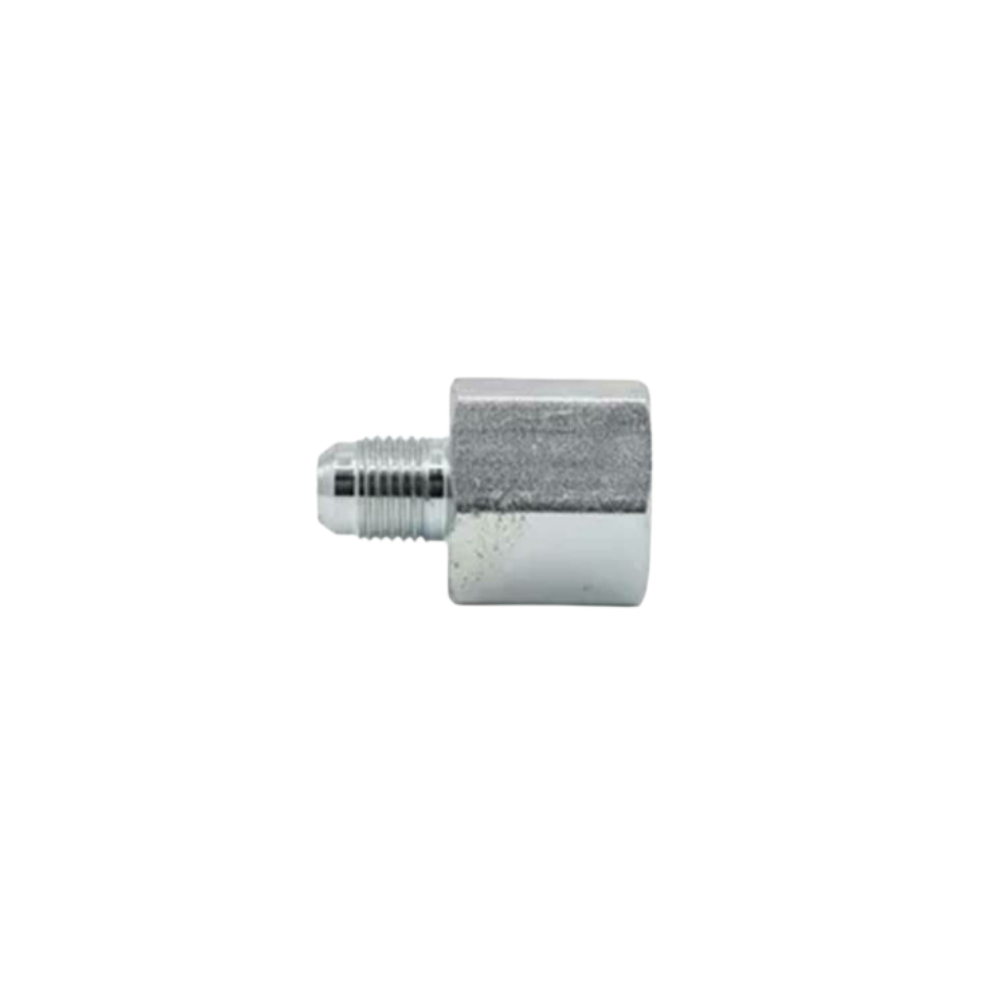

JIC 37° Fixed Female x JIC 37° Male Straight Adaptor

JIC fixed female one end, JIC male the other. The rigid JIC extension and size-change piece, for runs where the mating part is free to turn and a swivel is not wanted.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Fixed Female – SAE J514 37° flare, non-swivel. It seals metal-to-metal on the 37° cone but does NOT swivel, so the mating part must be free to turn.
• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.

How to Choose

• This female is fixed, not swivel. The part going into it has to be able to rotate, or you will wind up the line.
• Both ends seal metal to metal on the 37° cone. No tape, no sealant.
• If the run cannot turn at either end, use the swivel female version instead.

Technicians Advice

Fixed female is the one that catches people out. If both ends of the assembly are rigid, something has to give and it is usually the cone. Check you have a swivel somewhere in the run before you fit a fixed female into it.

Where You’ll Find It

• JIC 37° Fixed Female – American and Australian-built machinery on JIC-plumbed circuits. Used where a rigid female is wanted for a bulkhead, manifold or a run that is assembled from one end.
• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.

Cross-Reference

• JIC 37° Fixed Female – SAE J514 / JIC 37° flare, fixed nut. Parker call the 37° range Triple-Lok. The fixed female is a different part from the swivel female even at the same thread and cone.
• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
JFF-JIM-0607	3/8" JIC	7/16" JIC	28mm	12.7mm	Mild steel	Plated finish
JFF-JIM-0709	7/16" JIC	9/16" JIC	29mm	15.9mm	Mild steel	Plated finish
JFF-JIM-0712	7/16" JIC	3/4" JIC	32mm	20.6mm	Mild steel	Plated finish
JFF-JIM-0807	1/2" JIC	7/16" JIC	29mm	15.9mm	Mild steel	Plated finish
JFF-JIM-0809	1/2" JIC	9/16" JIC	30mm	15.9mm	Mild steel	Plated finish
JFF-JIM-0907	9/16" JIC	7/16" JIC	30mm	17.5mm	Mild steel	Plated finish
JFF-JIM-0908	9/16" JIC	1/2" JIC	30mm	17.5mm	Mild steel	Plated finish
JFF-JIM-0909	9/16" JIC	9/16" JIC	30mm	17.5mm	Mild steel	Plated finish
JFF-JIM-0912	9/16" JIC	3/4" JIC	33mm	20.6mm	Mild steel	Plated finish
JFF-JIM-0914	9/16" JIC	7/8" JIC	35mm	23.8mm	Mild steel	Plated finish
JFF-JIM-1207	3/4" JIC	7/16" JIC	33mm	22.2mm	Mild steel	Plated finish
JFF-JIM-1209	3/4" JIC	9/16" JIC	33mm	22.2mm	Mild steel	Plated finish
JFF-JIM-1214	3/4" JIC	7/8" JIC	38mm	23.8mm	Mild steel	Plated finish
JFF-JIM-1217	3/4" JIC	1.1/16" JIC	41mm	28.6mm	Mild steel	Plated finish
JFF-JIM-1407	7/8" JIC	7/16" JIC	35mm	23.8mm	Mild steel	Plated finish
JFF-JIM-1409	7/8" JIC	9/16" JIC	36mm	23.8mm	Mild steel	Plated finish
JFF-JIM-1412	7/8" JIC	3/4" JIC	38mm	23.8mm	Mild steel	Plated finish
JFF-JIM-1417	7/8" JIC	1.1/16" JIC	43mm	28.6mm	Mild steel	Plated finish
JFF-JIM-1421	7/8" JIC	1.5/16" JIC	45mm	34.8mm	Mild steel	Plated finish
JFF-JIM-1707	1.1/16" JIC	7/16" JIC	37mm	31.8mm	Mild steel	Plated finish
JFF-JIM-1709	1.1/16" JIC	9/16" JIC	37mm	31.8mm	Mild steel	Plated finish
JFF-JIM-1712	1.1/16" JIC	3/4" JIC	40mm	31.8mm	Mild steel	Plated finish
JFF-JIM-1714	1.1/16" JIC	7/8" JIC	42mm	31.8mm	Mild steel	Plated finish
JFF-JIM-1721	1.1/16" JIC	1.5/16" JIC	46mm	34.8mm	Mild steel	Plated finish
JFF-JIM-1917	1.5/16" JIC	1.1/16" JIC	48mm	38.1mm	Mild steel	Plated finish
JFF-JIM-2107	1.5/16" JIC	7/16" JIC	40mm	38.1mm	Mild steel	Plated finish
JFF-JIM-2109	1.5/16" JIC	9/16" JIC	40mm	38.1mm	Mild steel	Plated finish
JFF-JIM-2112	1.5/16" JIC	3/4" JIC	42mm	38.1mm	Mild steel	Plated finish
JFF-JIM-2114	1.5/16" JIC	7/8" JIC	45mm	38.1mm	Mild steel	Plated finish
JFF-JIM-2117	1.5/16" JIC	1.1/16" JIC	48mm	38.1mm	Mild steel	Plated finish
JFF-JIM-2126	1.5/16" JIC	1.5/8" JIC	50mm	42.9mm	Mild steel	Plated finish
JFF-JIM-2617	1.5/8" JIC	1.1/16" JIC	49mm	50.8mm	Mild steel	Plated finish
JFF-JIM-2621	1.5/8" JIC	1.5/16" JIC	50mm	50.8mm	Mild steel	Plated finish
JFF-JIM-2630	1.5/8" JIC	1.7/8" JIC	55mm	50.8mm	Mild steel	Plated finish
JFF-JIM-3021	1.7/8" JIC	1.5/16" JIC	53mm	57.2mm	Mild steel	Plated finish
JFF-JIM-3026	1.7/8" JIC	1.5/8" JIC	55mm	57.2mm	Mild steel	Plated finish
JFF-JIM-3040	1.7/8" JIC	2.1/2" JIC	64mm	66.7mm	Mild steel	Plated finish
JFF-JIM-4030	1.7/8" JIC	2.1/2" JIC	64mm	73.0mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
