FINN POWER 2 Inch Hydraulic Hose Crimper crimps from 14 -76 mm 24 V DC
Product Details
Brand: FINNPOWER
Weight: 150.00 kg

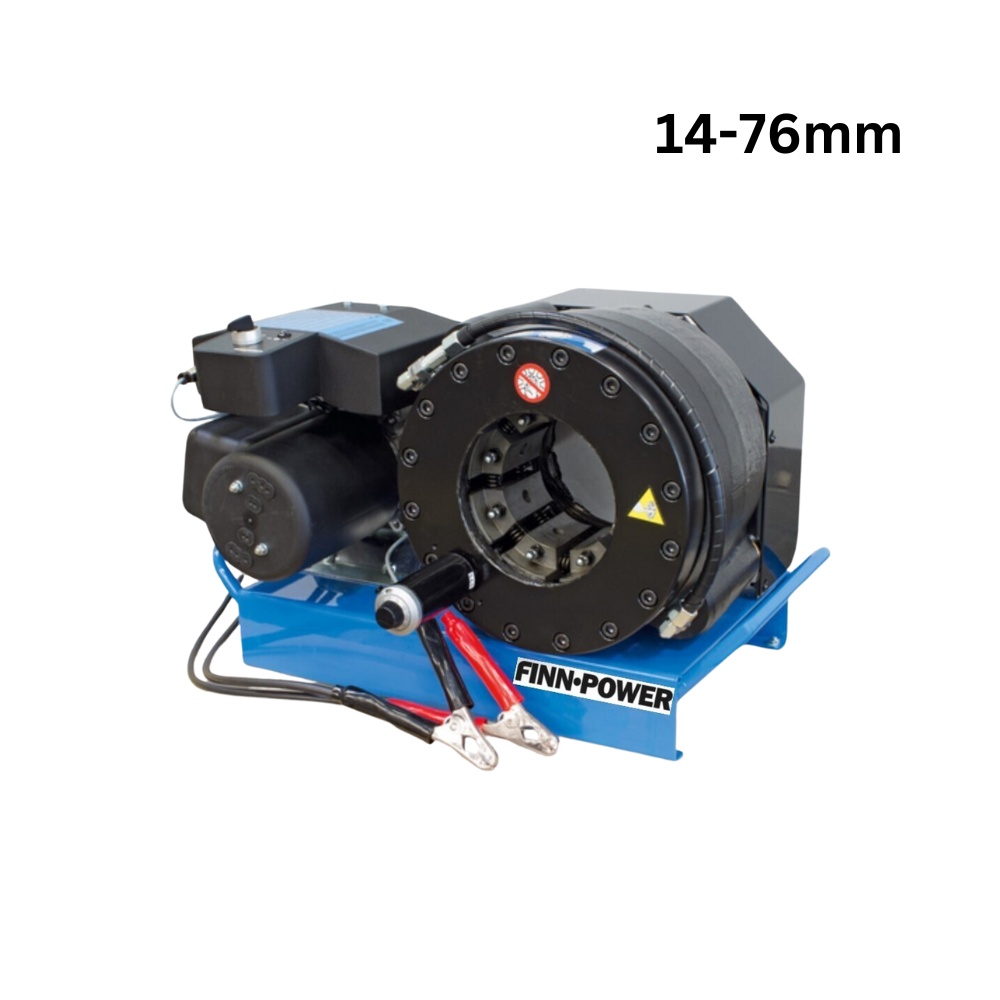

FINN POWER P32CS 24 Volt DC Hydraulic Hose Crimping Machine will Crimp hoses with an inside diameter of up to 50 mm (2" inches)
Made In Finland and fitted with a Rexroth Pump it is in our opinion the original and still the best and most reliable Crimper available on the Australian Market and we should know because we have tried the others over the two decades we have been making Hydraulic Hose assemblies.
This Portable 24 Volt DC model is good for Workshops as well as Mobile Service Trucks.
We have used two 100 amp 12 Volt DC batteries connected in Series and an Intelligent Charger to keep our workshop-based unit operating for years.
LAST THREE (2) AVAILABLE, Hurry while they last.
Supplied with a Standard set of 13 Dies, you can Crimp a range of Diameters from
- 14 mm all the way to 76 mm (2-inch Multispiral Hose)
- Fitted with 2.2 KW Rexroth Hydraulic Pump
- Producing 275 bar (4000 psi) pressure and
an Oil Flow of 1.2 Liters per Minute - Optional 3D printed Die Holders for Tidy and Organised vertical Storage and
Quick and easy Pick up and Release using the Quick Change Tool - Optional Quick Change tool with 8 Locating Pins and High Strength Magnets.
- Made in Finland (2022 Production).
The ideal choice for Service Vehicles or a remote Work Shop.
These reliable Finn-Power crimping machines are perfect when a wide range of sizes and types of fittings need to be crimped in situations where the electric network is not available.
These machines produce very efficient, accurate and repeatable crimping diameters.
| Description | P32 CS |
|---|---|
| Crimping Range Ø (mm) Standard supplied set | 14-76 mm |
| Max. crimping force (kN) | 2000 |
| Number of crimpings per hour | 150 |
| Maximum Hose Size Inside Diameter 2 inches (50.8 mm) | 2 inches |
| Number of Standard Die Sets 13 sets 14 to 69 mm (see chart below) (Optional dies available 10, 12, 74 and 78 mm for additional investment ) |
P32 |
| Max. opening (mm) past 99 mm | +33 |
| Master die Diameter x Length (mm) | 99 / 80 |
| Crimp Diameter Setting and Control = Manual | Manual Switch |
| Motor (kW) | 2.2 |
| Voltage (V) ₆ | 24 V DC |
| Size: Length (mm) | 626 |
| Size: Width (mm) | 543 |
| Size: Height (mm) | 421 |
| Weight incl. oil (kg) | 125 |
Crimp Dies Supplied with Standard Purchase.
| Part Number | Crimping Range (mm) | Length (mm) |
|---|---|---|
| 18506/14 | 14.0 – 16.0 | 55 |
| 18506/16 | 16.0 – 19.0 | 55 |
| 18506/19 | 19.0 – 22.0 | 55 |
| 18506/22 | 22.0 – 26.0 | 70 |
| 18506/26 | 26.0 – 30.0 | 70 |
| 18506/30 | 30.0 – 34.0 | 70 |
| 18506/34 | 34.0 – 39.0 | 75 |
| 18506/39 | 39.0 – 45.0 | 75 |
| 18506/45 | 45.0 – 51.0 | 90 |
| 18506/51 | 51.0 – 57.0 | 90 |
| 18506/57 | 57.0 – 63.0 | 100 |
| 18506/63 | 63.0 – 69.0 | 110 |
| 18506/69 | 69.0 – 75.0 | 110 |
Please note
Crimpers and Dies are available for immediate Dispatch
Quick Change Tool and Die Holders please allow 10 working days for 3D Printing and Assembly.
