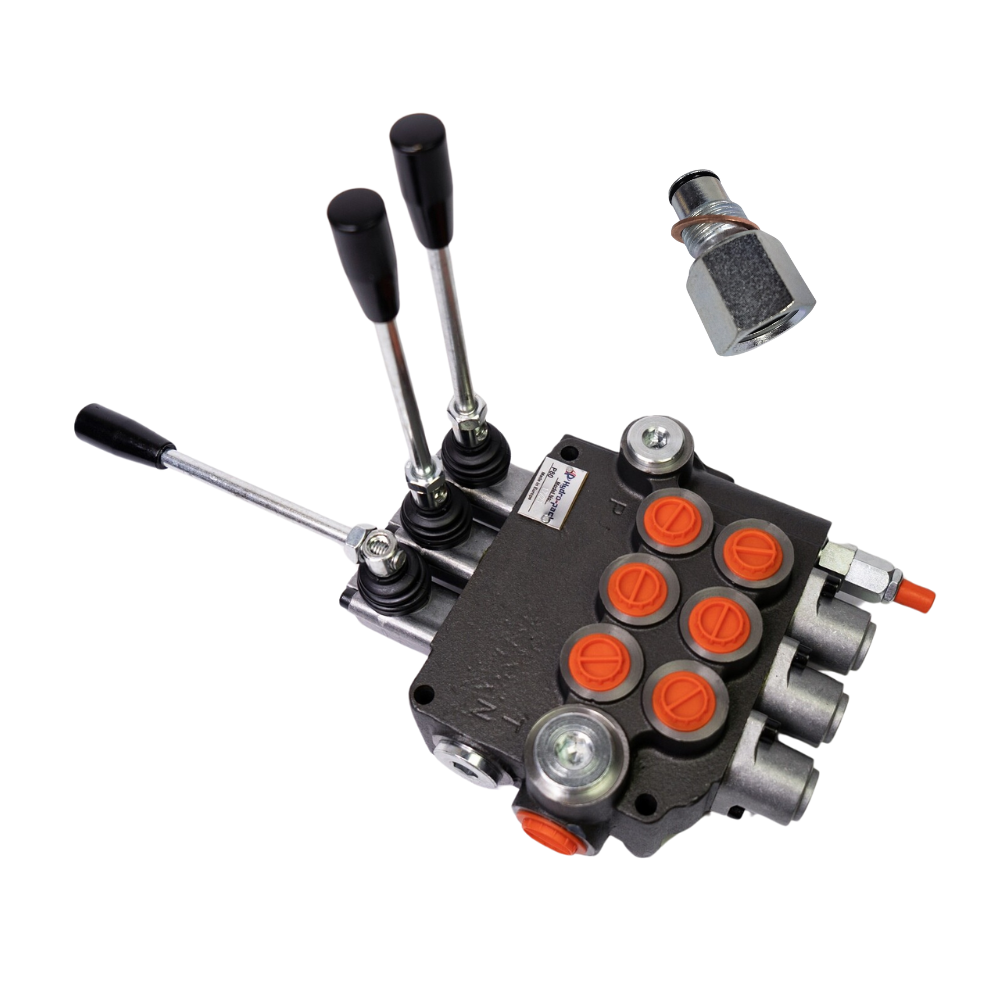

Directional Flow Control Valve BSP Ports 3 Spool 40 Lpm Monoblock EUROPEAN MADE
Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves
Product Details
Weight: 9.00 kg
Hydraulic 3 Spool, Directional Oil Flow Control Valve, flows up to 40 Lt/min pressures to 250 bar 3675 PSI Monoblock Construction EUROPEAN MADE.
This is a brand new high quality, made in Europe directional control valve, it is designed for any application where you need to control 3 individual functions such as 3 motors, or 3 cylinders or any combination of 3 motors and or cylinders .
Construction = Monoblock
Material of Construction = Steel
No of Spools = 3
Common Load Hold Check on P Port
Material of Construction = Case Hardened Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate = 40 liters/min (12 Gallons per Minute)
Max Working Pressures = 300 Bar (4,410 psi) on Ports A and B
Max Supply pressure = 250 Bar (3,675 psi) on P Port
Spool Types = Cylinder, Motor Spools or Single Acting and Float
Standard Spool Movement = Lever action, Spring Return to Center.
Built in Relief Valve = Adjustable (factory set to 220 bar at (3,230 psi)
Ports Sizes
P, T, and N Ports 1/2" BSPP
Pressure A & B Ports 3/8" BSPP
Mounting Bolt centres ; 132 mm wide x 80 mm deep
Operating temperature range: -20 °C to + 80°C
Dimensions = L x W x H =240 x 164 x 80 cm
Weight 9 KG
This a High Quality Valve and has many outstanding features, including.
These valves are regularly used in hydraulic circuits to divert the flow of high-pressure oil and are typically used to control the speed and movement of hydraulic cylinders or motors.
The Oil Ports Sizes are: 3/8" BSPP for A & B, & 1/2" BSPP for P, T, & N.
There is a 'power beyond' port ('N'), which can be used as a secondary pressure supply line if you ever wish to mount another additional valve downstream.
To make this option work, there a power beyond sleeve is required. This sleeve needs to be inserted into the power beyond "N" port to make this port open.
Please Note If using this function, a tank return line MUST still be fitted!
Please Note If using this function, a tank return line MUST still be fitted!
As standard, this DCV comes with a cylinder spools. This is best for use with double or single acting rams or cylinders .
Also available are Motor spools as well as Single acting spools .
A Motor spool is best used: to run spinning motors, as they will come to a slow halt once lever is back in centre position.
The lever action is a spring back to centre one. Ie. you must hold the lever 'On' to flow oil.
It then springs back to centre to lock the oil.
Another optional extra is 'Detent' This is mostly used for motors.
When you pull or push the lever, the lever will stay where pushed, until you pull it back to centre.
An Optional 'Float' function for spools with detent is also available, this means if you are controlling a loader (or mower / Slasher attachment) you can get your Blade or attachment to float and 'skim' or follow the contours of the ground.
The Float Lever function: is a 'four' position lever, Up, Down, Center, and Pull all the way down and there is a detent for the "Float" function.
The oil is open to the tank in the Float position allowing your blade to rise & fall freely with the contours of the ground.
The other two positions will allow up or down & will lock or hold the load in the centre position.
The second lever is a regular double acting cylinder or Motor spool according to your requirements.
Contact us for more information or select from the drop down menus
Specifications
This a High Quality Valve and has many outstanding features, including.
- built in adjustable relief valve
- high performance,
- high efficiency,
- small volume,
- mass flow,
- leak resistance.
In additional to compact size:, these control valves have fixed and large pull rods to control direction,
Various control options, manual, automatic and or remote control methods are also available including.
- Motor Spool
- Detent kit no spring return
- Detent kit with spring return
- Pneumatic spool control,
- Compact construction.
- Low pressure drop.
- Long service life.
- Choice of various ports and circuit valves.
- Spring return.
- High accuracy spool is hardened for long term accuracy.
IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.- MM 16/01/2025 abc $ seo
