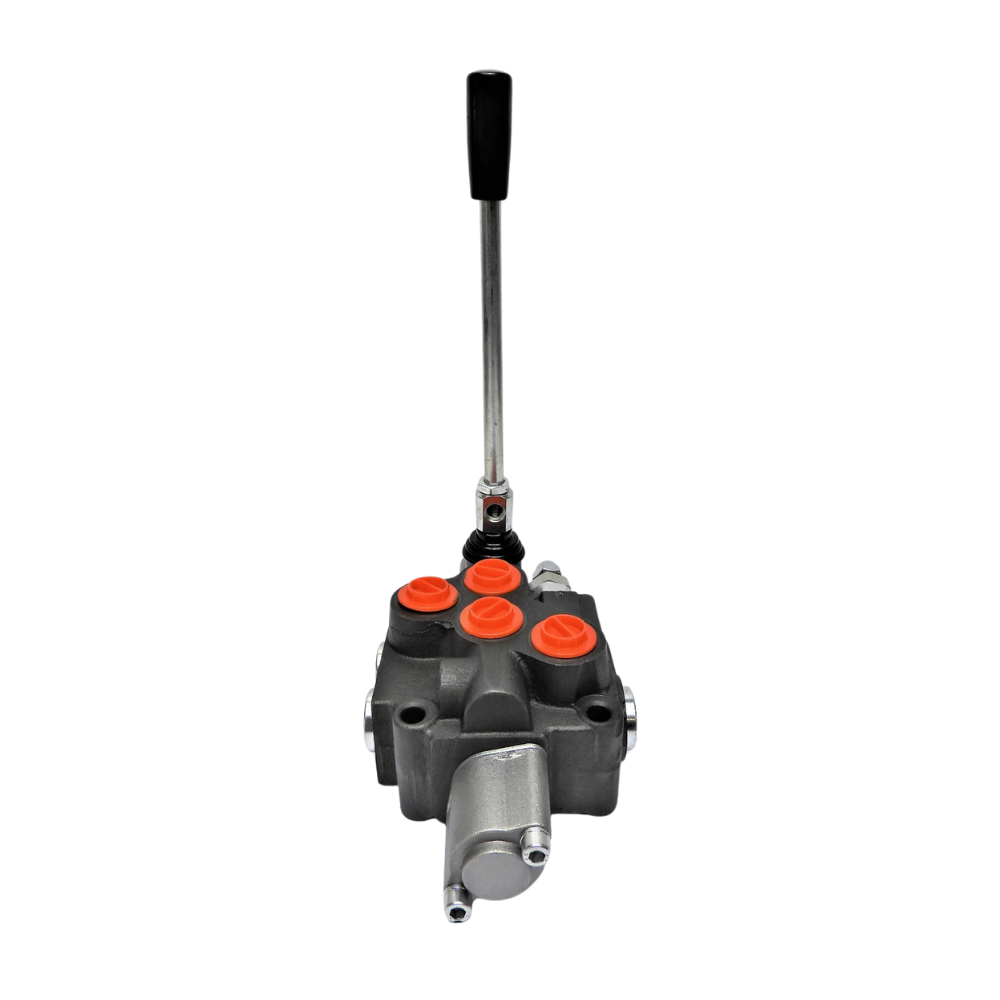

Hydraulic Flow Control Valve 1/2" BSP Ports 1 Spool Double Acting 50 Lpm Monoblock valve DCV
Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves
Product Details
Weight: 5.00 kg
Hydraulic Flow Control Valve 1/2" BSP Ports 1 Spool flows up to 50 Lt/Min Monoblock valve
This is a brand new high quality valve, it is designed for many industrial, mobile and recreational applications such as on Stabilisers, Front end Loaders, Backhoes or any application where you need to control 1 individual functions or cylinders.
These valves are regularly used in hydraulic circuits to divert the flow of high pressure oil and are typically used to control the speed and movement of hydraulic cylinders or motors.

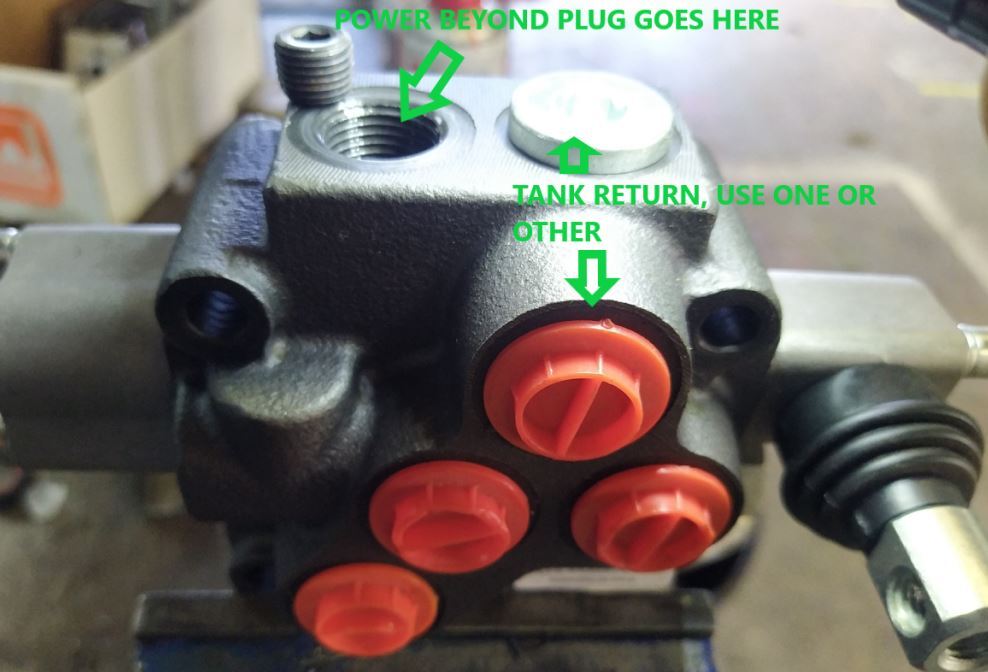

The ports are ALL 1/2" BSPP thread. There is a 'power beyond' port, which can be used as a pressure line if you ever wish to mount another valve downstream. There is a grub screw that comes with the valves. This needs to be inserted into the power beyond port to make this port open.
Detent (lever stays up or down on it's own) can be fitted for $40 per spool. Message us for this option.
Construction = Monoblock
Material of Construction = Steel
No of Spools = 1
Material of Construction = Case Hardened Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate = 50 liters/min (12 Gallons per Minute)
Max Working Pressure = 315 Bar (4750 PSI)
Spool Type = Cylinder. #Motor Spools also available $0 each.
Spool Movement = Lever action, Spring Return to Center.
Detent Kits also available at $40 each No Spring to centre
Built in Relief Valve = Adjustable (factory set at 1800 PSI)
Ports Sizes
Tank return Port 1/2" BSPP
Pressure A & B Ports 1/2" BSPP
Mounting Bolt centres ; 147mm x 81mm
Operating temperature range: -20 °C to + 80°C
Dimensions = L x W x H = 11 x 19 x 10 cm
Weight 4 KG
Specifications
Many types of adaptors threads, hydraulic hose and field fit hose fittings available please see our other listings.
This a High Quality Valve and has many outstanding features, including.
- built in adjustable relief valve
- high performance,
- high efficiency,
- small volume,
- mass flow,
- leak resistance.
In additional to compact size, these control valves have fixed and large pull rods to control direction,
Various control options, manual, automatic and or remote control methods are also available including.
- Motor Spool
- Detent kit no spring return
- Detent kit with spring return
- Pneumatic spool control,
- Hydraulic ControlFeatures
- Compact construction.
- Low pressure drop.
- Long service life.
- High efficiency.
- Choice of various ports and circuit valves.
- Spring return.
- High accuracy spool is hardened for long term accuracy.
- Sub-plate mounting.
- Handle shift operation.
IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
