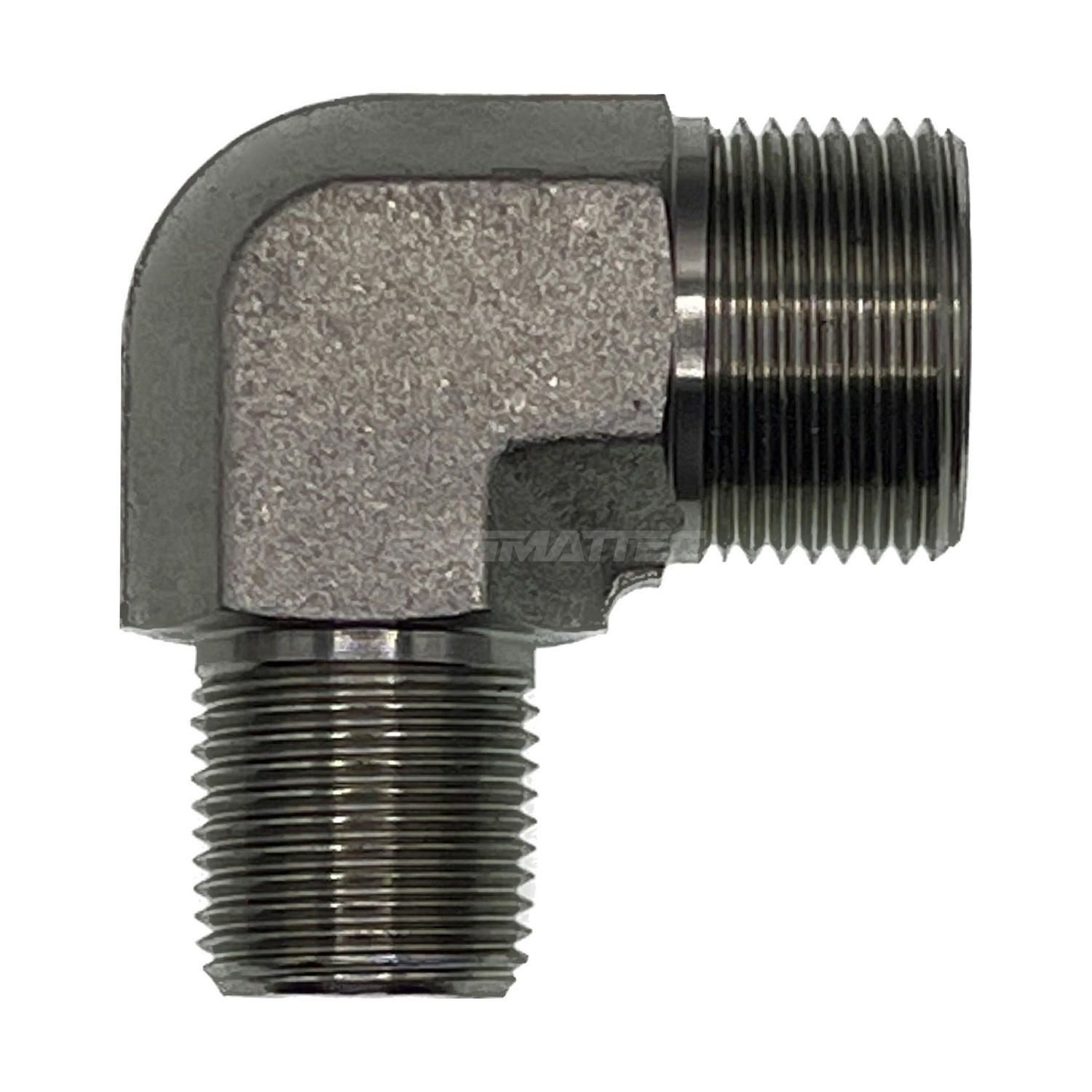

BSP Tapered Male x Metric Light (L) Male 90° Compact Elbow

BSPT to DIN 2353 light-series metric at 90°. The common European-to-local crossover on return, drain and pilot lines where the light series is the correct specification.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.
• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light series. It seals on the 24° cone, normally with an O-ring captured in the cone.

How to Choose

• Light series suits moderate pressure. Do not substitute it where a heavy-series fitting was originally fitted.
• Metric sizing follows tube outside diameter, not thread diameter.
• BSPT end takes tape or sealant; the 24° metric cone must stay dry.

Where You’ll Find It

• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.
• Metric Light (L) Male – European-built machinery – Liebherr, Wacker Neuson, Atlas, Sennebogen, Manitou – and imported tube assemblies. Light series suits return, drain and pilot lines.

Cross-Reference

• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.
• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker call this range EO and EO-2, historically branded Ermeto. Also called bite type.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Technicians Advice

Check whether the mating metric cone carries a soft seal or runs bare metal, and match it. A soft-seal cone against a hard-seal mating part will pull up tight and still weep, because the O-ring is carrying no load and the metal faces were never meant to seal on their own.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	F1	F2	L1	L2	S	D1	D2	Material	Finish
BTM-MLM-90C-0212	M12x1.5 - 6L	1/8" BSPT	M12x1.5 - 6L	1/8" BSPT	19mm	20mm	12mm	4mm	4.5mm	Mild steel	Plated finish
BTM-MLM-90C-0214	M14x1.5 - 8L	1/8" BSPT	M14x1.5 - 8L	1/8" BSPT	21mm	26mm	12mm	6mm	4.5mm	Mild steel	Plated finish
BTM-MLM-90C-0216	M16x1.5 - 10L	1/8" BSPT	M16x1.5 - 10L	1/8" BSPT	22mm	27mm	14mm	8mm	4.5mm	Mild steel	Plated finish
BTM-MLM-90C-0412	M12x1.5 - 6L	1/4" BSPT	M12x1.5 - 6L	1/4" BSPT	21mm	26mm	12mm	4mm	6mm	Mild steel	Plated finish
BTM-MLM-90C-0414	M14x1.5 - 8L	1/4" BSPT	M14x1.5 - 8L	1/4" BSPT	21mm	26mm	12mm	6mm	6mm	Mild steel	Plated finish
BTM-MLM-90C-0416	M16x1.5 - 10L	1/4" BSPT	M16x1.5 - 10L	1/4" BSPT	22mm	27mm	14mm	8mm	6mm	Mild steel	Plated finish
BTM-MLM-90C-0418	M18x1.5 - 12L	1/4" BSPT	M18x1.5 - 12L	1/4" BSPT	24mm	28mm	17mm	10mm	6mm	Mild steel	Plated finish
BTM-MLM-90C-0614	M14x1.5 - 8L	3/8" BSPT	M14x1.5 - 8L	3/8" BSPT	24mm	28mm	–	6mm	9mm	Mild steel	Plated finish
BTM-MLM-90C-0616	M16x1.5 - 10L	3/8" BSPT	M16x1.5 - 10L	3/8" BSPT	24mm	28mm	17mm	8mm	9mm	Mild steel	Plated finish
BTM-MLM-90C-0618	M18x1.5 - 12L	3/8" BSPT	M18x1.5 - 12L	3/8" BSPT	24mm	28mm	17mm	10mm	9mm	Mild steel	Plated finish
BTM-MLM-90C-0622	M22x1.5 - 15L	3/8" BSPT	M22x1.5 - 15L	3/8" BSPT	28mm	30mm	19mm	12mm	9mm	Mild steel	Plated finish
BTM-MLM-90C-0814	M14x1.5 - 8L	1/2" BSPT	M14x1.5 - 8L	1/2" BSPT	28mm	34mm	19mm	12mm	12mm	Mild steel	Plated finish
BTM-MLM-90C-0816	M16x1.5 - 10L	1/2" BSPT	M16x1.5 - 10L	1/2" BSPT	24mm	34mm	19mm	8mm	12mm	Mild steel	Plated finish
BTM-MLM-90C-0818	M18x1.5 - 12L	1/2" BSPT	M18x1.5 - 12L	1/2" BSPT	24mm	32mm	22mm	10mm	12mm	Mild steel	Plated finish
BTM-MLM-90C-0822	M22x1.5 - 15L	1/2" BSPT	M22x1.5 - 15L	1/2" BSPT	28mm	34mm	19mm	12mm	12mm	Mild steel	Plated finish
BTM-MLM-90C-0826	M26x1.5 - 18L	1/2" BSPT	M26x1.5 - 18L	1/2" BSPT	31mm	36mm	24mm	15mm	12mm	Mild steel	Plated finish
BTM-MLM-90C-1226	M26x1.5 - 18L	3/4" BSPT	M26x1.5 - 18L	3/4" BSPT	34mm	42mm	27mm	15mm	16.7mm	Mild steel	Plated finish
BTM-MLM-90C-1230	M30x2 - 22L	3/4" BSPT	M30x2 - 22L	3/4" BSPT	35mm	42mm	27mm	19mm	16.7mm	Mild steel	Plated finish
BTM-MLM-90C-1636	M36x2 - 28L	1" BSPT	M36x2 - 28L	1" BSPT	38mm	48mm	36mm	24mm	22.2mm	Mild steel	Plated finish
BTM-MLM-90C-2045	M45x2 - 35L	1.1/4" BSPT	M45x2 - 35L	1.1/4" BSPT	45mm	55mm	41mm	30mm	28.6mm	Mild steel	Plated finish
BTM-MLM-90C-2452	M52x2 - 42L	1.1/2" BSPT	M52x2 - 42L	1.1/2" BSPT	51mm	61mm	50mm	36mm	33.3mm	Mild steel	Plated finish

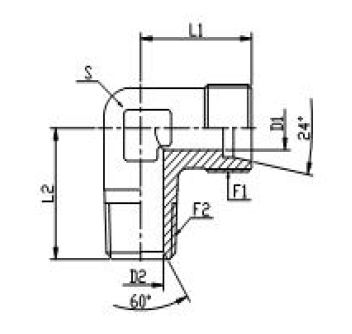

Key: L1 length 1, L2 length 2, S hex across flats, D1 bore 1, D2 bore 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
